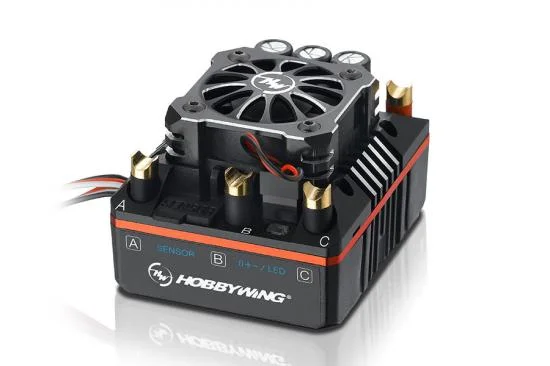

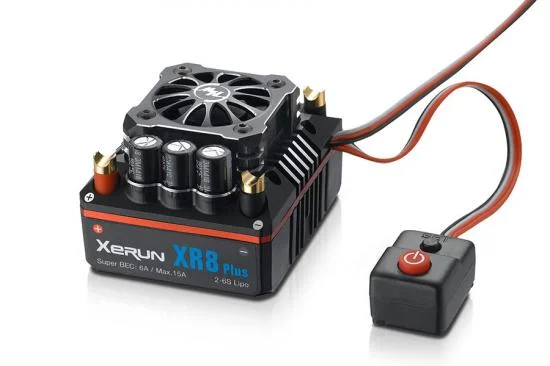

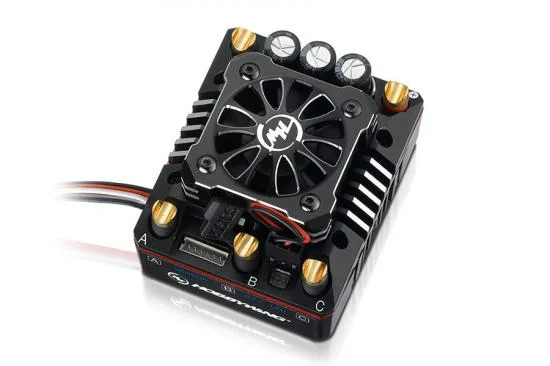

Hobbywing Xerun XR8 Plus 150A ESC

HOBBYWING XERUN-XR8-PLUS ESC SPEED CONTROLLER - BLACK

Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the XR8 PLUS is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.

With strong torque and excellent output, the XR8 PLUS can definitely cater for all the power hungry requirements that professional drivers need. The highly adjustable parameters of the ESC will allow drivers to enjoy smooth throttle response when the throttle/brake linearity is utmost required.

The XR8 PLUS is the world’s first 1/8th ESC that integrates a HV built-in BEC with an output current of up to 15 Amp and a switchable output voltage of 6V-7.4V. The high voltage BEC is designed to handle today’s high voltage servos on demand used by 1/8th scale vehicles

The XR8 PLUS provides an exceptionally smooth off-throttle coasting function (patent pending), which simulates the feeling of inertia and momentum of a large-scale car driving experience. This can greatly improve the performance of builds utilizing large, high-powered motors as electromagnetic drag becomes a substantial factor in sudden deceleration when in the off-throttle position, adversely affecting driving performance and overall maneuvering.

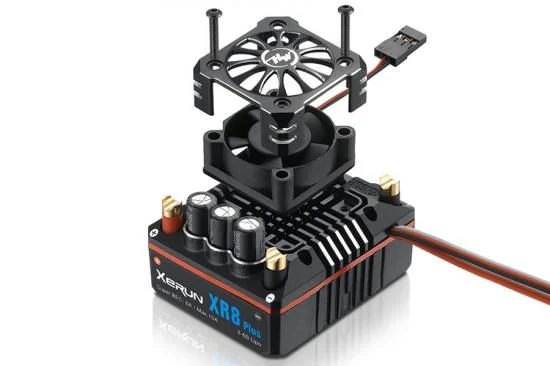

Because of the exceptional thought and design put into the XR8 PLUS, users can expect a virtually maintenance free operating experience, due to advanced error sensing and thermal protection, an exceptionally rugged housing, the ultimate in heat-dissipation technology and a special shockproof fan mounting able to withstand anything that a racer can throw at it.

HobbyWing XeRun XR8 Plus Features:

• High Reliability & Durability
• Great Flexibility & Versatility
• High Voltage Built-in BEC
• Advanced and Secure Electronic Switch
• High Performance Dynamic Timing Algorithm
• Virtually Maintenance Free Operation
• Ultra-Reliable Cooling System

Spec Check:

• Scale: 1/8th
• Brushed/Brushless: BL
• Sensored/Sensorless: SD
• Waterproof: No
• Cont./Peak Current: 150A/950A
• Input: 2-6S LiPo/6-18 Cells NiMH
• BEC Output: Switch Mode:6V/7.4V,6A
• Input Wires: Red-10AWG-200mm*1/Red-10AWG-150mm*1/Black-10AWG-150mm*1
• Output Wires: Black-12AWG-200mm*3
• Input Connectors: No
• Output Connectors: No
• Fan Size: 30.0x30.0x10.0mm
• Fan Voltage Range: 5-7.4V
• Size:58.7x48.0x36.9mm
• Weight: 127g

• Brand: Hobbywing
• Part No: HW30113300BK
• Barcode: 6938994408325
• Motor Type: Brushless
• LiPo Compatible: Yes
