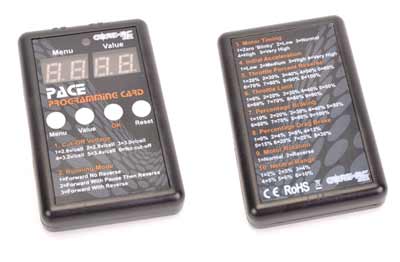

PACE ESC Program Card

1. Cut-Off Voltage
1=2.6v/cell  2=2.8v/cell  3=3.0v/cell 4=3.2v/cell  5=3.4v/cell  6=No cut-off
2. Running Mode
1=Forward No Reverse 2=Forward With Pause Then Reverse 3=Forward With Reverse
3. Motor Timing
1=Zero ‘Blinky’  2=Low  3=Normal 4=High   5=Very High
4. Initial Acceleration
1=Low  2=Medium  3=High 4=Very High
5. Throttle Percent Reverse
1=20%  2=30%  3=40% 4=50% 5=60% 6=70%  7=80%  8=90% 9=100%
6. Throttle Limit
1=0%  2=20%  3=30% 4=40% 5=50% 6=60%  7=70%  8=80% 9=90%
 7. Percentage Braking
1=10%  2=20%  3=30% 4=40% 5=50% 6=60%  7=70%  8=80% 9=100%
8. Percentage Drag Brake
1=0%  2=4%  3=8% 4=12% 5=15% 6=20%  7=25%  8=30%
9. Motor Rotation
1=Normal  2=Reverse
10. Neutral Range
1=2%  2=3%  3=4% 4=5% 5=6%  6=10%
