HOBBYWING QUICRUN FUSION 1800K SENSORED BRUSHLESS 2-IN-1 (INCLUDES FREE LED PROGRAM BOX)
Integrated design of Hobbywing's patent technology

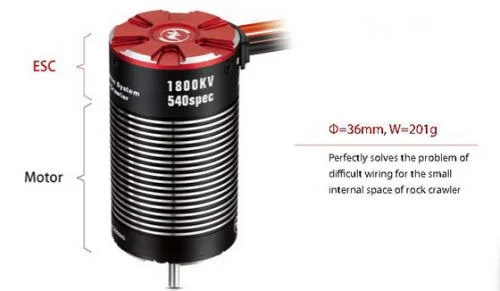

The integrated design of the ESC makes the overall volume only the size of 550 motor, and the overall weight is only 201g, which makes the layout and wiring of car frame simpler and more beautiful, perfectly solves the difficulty of wiring due to the small internal space of rock crawler.
Intelligent Torque Output & Speed. Closed-loop Control for Easy Control
The Fusion system combined with Intelligent Torque output and closed loop speed control mean the power system will maintain the motor’s Torque level and RPM as the vehicles conditions change. Uphill, downhill, under load, the intelligent output torque makes the operation so simple.
Note: If the“RPM/Throttle Matching”be set to “Disabled”, no intelligent torque output & speed closed-loop control, just like brushed system.
FOC (Field-oriented Control) for Super Linearity & HighTorque & Extreme Mute
The Fusion system adopts FOC driving mode, low speed torque is strong. It runs smoothly at very low speed, outstripping ordinary sensored power system, even better than brushed power system. Moreover, the motor is extremely silent when it is running. The driving noise which annoys driver disappears. It is the best choice for rock crawler.
Applicable to All Weather & Track Conditions
The IP-67 waterproof of the whole power has excellent waterproof and dustproof performance. The whole power can easily drive on the muddy, sandy, icy, snowy and water track under various weather conditions.
High Driving Efficiency for Long Battery Life
The whole power adopts FOC driving which has high efficiency and less heat, dramatically extends the Runtime time. Benefitting from the sine wave driving mode, the motor runs more silently and softly.
Professional Drag Brake Adjustments & Super Parking Capacity
8 gears of drag brake force and 9 gears of drag brake rate can meet different car models, different fields and different controlling habits. The maximum drag brake force is about twice that of ordinary brushless power of the same size, providing super strong parking capacity on slope.
Advanced and Secure Electronic Switch
Compare to standard on/off switches, the dust, dirt, and waterproof electronic switch housing ensures a long reliable life for your power system, will not suffer from the problems that reed stuck and contact rust frequently happed in dusty and damp environment, and the problem that mechanical switch closes automatically caused by fierce impact.
Specifications
Scale: 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: Waterproof
Cont./Peak Current: 40A/160A
Input Voltage: 2-3S Lipo/6-9 Cell NiMH
BEC Output: 6V/7.4V adjustable, continuous curr ent 4A (Switch mode)
Motor KV: 1200KV,1800KV
Diameter/length of Motor: 36mm/64mm
Shaft diameter / exposed shaft length: 3.175mm/16mm
Motor Poles: 4
Input Wires: Red-14AWG-200mmx1 / Black-14AWG-200mmx1
Input Connectors: XT60
(Note: All the wire length above is the original length not the length you see from the outside.)
SET Button on ESC: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
Program Port: Independent programming interface(switch position)
Firmware Upgrade: Not Supported
Size: 36*64mm
Weight: 201g (including wir e plug)
Vehicles: Various 1/10throck crawler
Will this fit my wltoys 144001 model. If the motor dimensions are the same?
Is it true the lower the kv the faster the motor?
Asked by Aliraza on 17th August 2020
We don't sell WL toys so can't really advise on that sorry.
Higher KV = more RPM
Lower KV = more torque
Answered by: Ben @ Wheelspin Models
Hi, I've a axial scx10 iii gladiator what hobbywing fusion will I need for it as I see there are 2 on your website
Thanks Sean
Asked by Sean Dixon on 24th October 2020
Either will work - the 1800kv will have higher RPM, the 1200kv will have more torque
Answered by: Ben @ Wheelspin Models
hobbywings quicrun fusion 2-in-1 motor-esc.
Can you tell me the difference between the 1800kv and the 1200kv ?
Asked by Laurie Aland on 15th January 2021
Higher KV = more RPM, less torque
Answered by: Ben @ Wheelspin Models
I have a Traxxas iD battery - is there an adaptor for this so that I don't have to chop the plugs off?
Asked by Justin on 3rd April 2021
Afraid not (XT60 is fitted)
Easiest way is to solder on TRX TRX3070X
Answered by: Ben @ Wheelspin Models
Dose this include a program card ?
Asked by Tony on 16th November 2021
The spec on the website says it does.
Answered by: Anthony @ Wheelspin Models
Will this motor be able to fit in a Carisma SCA-1E Coyote 2.1
Asked by Blake on 7th January 2022
Yes this will fit in that car for you.
Answered by: Si @ Wheelspin Models
Does this come with XT60 connector on? Or do we have to put our own on
Asked by Sam on 27th March 2022
Yes these come with an XT60 connector fitted
Answered by: Ben @ Wheelspin Models
Hi, what's the warranty like for these? If there's a failure it means replacing the whole thing rather than just ESC or motor...
Asked by Mark on 16th January 2023
It would come with a 12 mth warranty agains manufacturing failure ( would not cover rusty bearing etc as thats due to general maintainance ) Yes if one failed it would mean replaceing the complete unit.
Answered by: Si @ Wheelspin Models
Fitted one of these to wife’s trx sport, because of no seperate esc, where does the connections for the light box go ??. The receiver already has a single wire from the light box but I’m left with two other wires that went to the old esc.
With your wealth of knowledge guys I’m sure you know the answer.
Asked by Keith on 28th January 2024
Ah if you are running the Traxxas light kit you would need to solder a JST male connector to the positive and negitive from the ESC ET0624 and then use that to power the light kit.
Answered by: Si @ Wheelspin Models
