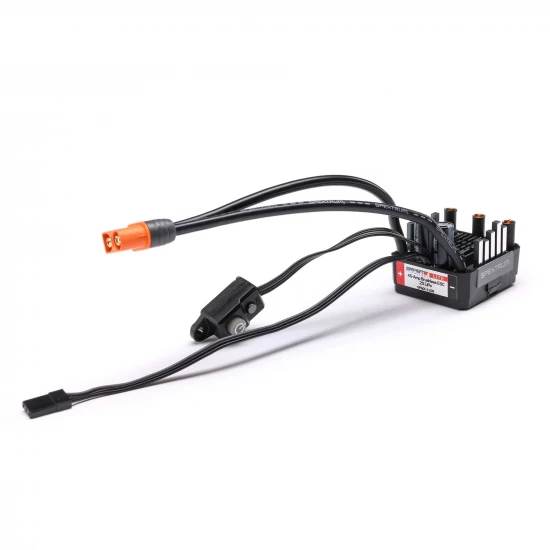

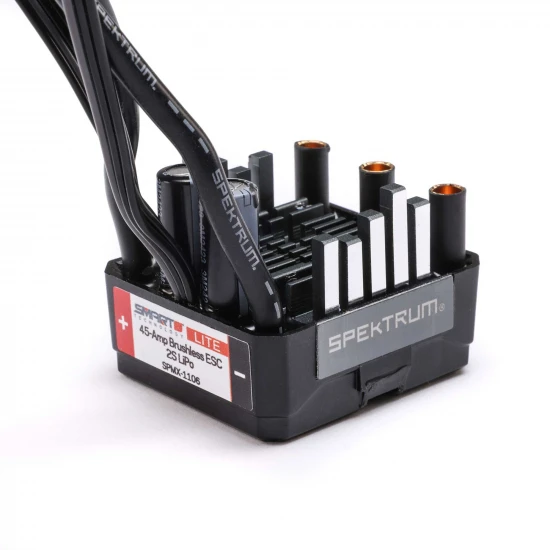

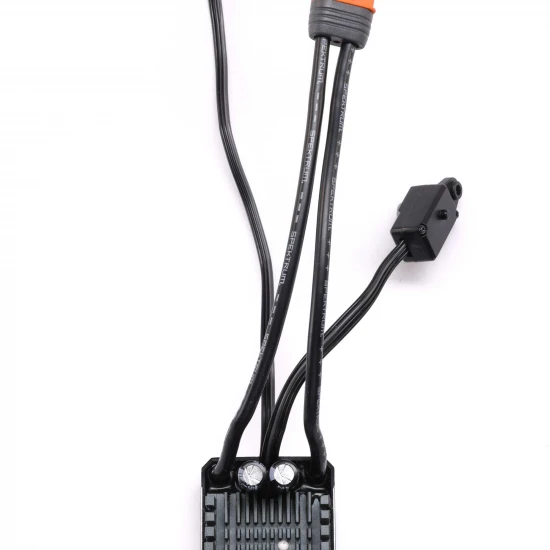

Firma 45 Smart Lite Brushless ESC

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics, creating the best-performing RC system for your vehicle.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you more confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever without installing extra components that work independently. You won't need additional wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as battery voltage, ESC temperature, and throttle percentage.

Firma ESCs gather the data and send it to your transmitter in real-time instead of storing it for an after-run study. You can adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

• Smart all-in-one telemetry
• Fast, powerful 32-bit ARM M4 processor
• Waterproof
• Multiple options for easy programming:
• Button programming
• Smart ESC Programming Box
• SmartLink USB Updating and Programmer application
• Multi-point protection:
• Over-current protection
• Automatic LiPo low-voltage cutoff
• Thermal protection
• Failsafe protection
• High current adjustable BEC (6v or 7.4v @ 4 Amps)

• Developed and designed by Spektrum™ engineers in partnership with the industry's leading ESC manufacturer
• Ideal for Losi 22S Sprint cars running on 2S Lipo setups
• Compact for easy installation in most applications
• Ready to install — no soldering required
• Rugged plastic case
• Aluminum heat sink for high efficiency
• Adjustable high-power BEC
• Firmware updatable through the Smart ESC Programming Box
• High heat-resistant IC™ connectors, backward compatible with EC™ connectors
• Limited 1-year warranty

Firma 45 Smart Lite Brushless ESC Specfications:

• Auto Cutoff: Yes
• BEC Voltage: 6V/7.4V @4A
• Connector Type: IC5
• Input Voltage: 2S LiPo
• Low-Voltage Cutoff Programmable: Yes
• Maximum Burst Current: 180A
• Maximum Continuous Current: 45A
• Motor Type: Brushless
• Output Connector: 4mm Bullet
• Overload Protection: Yes
• Product Height: 0.55" (14 mm)
• Product Length: 1.33" (34 mm)
• Product Width: 0.94" (24 mm)
• Sensored: No
• Technology: Smart Lite

• (1) Spektrum™ Firma™ Smart ESC
• (1) Spektrum Smart Sticker Sheet

• (1) Spektrum™ Surface Receiver
• (1) Spektrum Smart Technology LiPo Battery
• (1) Spektrum Transmitter

• Brand: Spektrum
• Part No: SPMX-1106
• Barcode: 0660132633097
• Fitment: Standard Part
