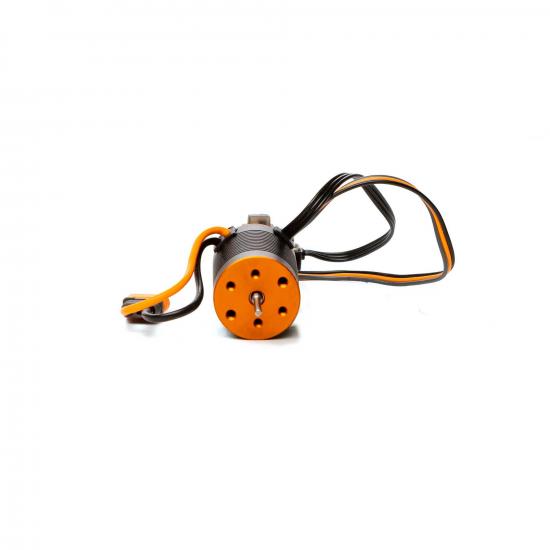

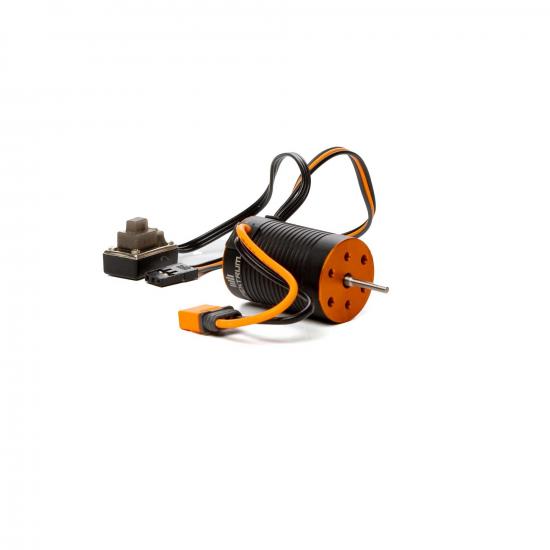

Firma Brushless Motor/ESC 2-in-1 Combo - 6000Kv

Firma Brushless Motor/ESC 2-in-1 Combo - 6000Kv

Brand: Spektrum

Part No: SPMXSEM0501

(1 rating)

£90.24 ~~RRP £94.99~~

Shadow Stock: Usually ships next day

Collect Instore

Request Price Match Ask a Question Write a Review

The Spektrum Firma Brushless Motor/ESC 2-in-1 Combo - 6000Kv (SPMXSEM0501) is a compact brushless upgrade for 280-size mini models, combining a high-torque 6000Kv sensorless inrunner with an integrated 20A ESC. Supporting 2S LiPo and EC2 connectors, it offers simple one-button setup and low-maintenance performance in a space-saving design.

Suggested compatibility includes popular minis such as Losi Mini-T, Mini-B and Mini JRX2/JRXT thanks to matching 280-size dimensions and industry-standard mounting hole patterns.

Features

Drop-in brushless upgrade for Losi Mini-T, Mini-B and Mini JRX2/JRXT (suggested compatibility)
Integrated 20A ESC in a 2-in-1 space-saving design
EC2 connector compatible with common 1/18 scale battery types
Perfect upgrade for brushed 280 motors with the same diameter
Industry-standard mounting hole patterns
High torque, high RPM 6000Kv brushless sensorless motor
Counter-clockwise operation only
Easy programming via one-button interface
High-quality construction with ball bearings
Hardened steel 2mm motor shaft
Low-maintenance design
Easy installation

Specifications

Input Voltage: 2S LiPo
Motor Type: Brushless, sensorless inrunner
RPM/Volt (Kv): 6000
ESC: Integrated (included)
Maximum Continuous Current: 20A
Maximum Burst Current: 40A
BEC: Yes, switching; 1A continuous
Auto Cutoff: Yes
Overload Protection: Yes
Connector Type: EC2
Forward/Reverse: Yes/Yes
Shaft Diameter: 2 mm (0.07")
Outer Diameter: 24 mm (0.94")
Product Length: 36 mm (1.41")

In The Box

Firma 2-in-1 Brushless ESC + 6000Kv Motor
Product manual

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

Features

Drop-in brushless upgrade for Losi Mini-T, Mini-B and Mini JRX2/JRXT
Integrated 20 amp ESC
2 in 1 design reduces space requirements
EC2 connector that is compatible with popular battery types used in 1/18th scale models
Perfect upgrade for brushed 280 motors with the same diameter
Industry standard mounting hole patterns

High torque and high RPM 6000kv Brushless Sensorless motor
Counter-clockwise operation only
Easy programming via one-button interface
High-quality construction with ball bearings
Hardened steel 2mm motor shaft
Low maintenance design
Easy installation

Overview

The Spektrum Firma 2 in 1 Brushless ESC and 6000kv motor is a powerful brushless upgrade for your 280 size and mini size models. These systems contain a high-torque and high speed 6000kv brushless sensorless motor that is designed for bashing and sport racing applications. The motor features the same basic dimensions and mounting patterns as industry-standard, 1/16 to 1/18, 280-size brushed motors, making it easy to install and setup. These motors also offer high performance over a longer lifetime with little to no maintenance.

Firma Brushless Motor/ESC 2-in-1 Combo - 6000Kv Specfications:

BEC: Yes
Input Voltage: 2S LiPo
RPM/Volt (Kv): 6000
Connector Type: EC2
Product Length: 1.41" (36 mm)
Maximum Burst Current: 40A
Maximum Continuous Current: 20A
Motor Type: Brushless
Speed Control: Included
Auto Cutoff: Yes
BEC Continous Current: 1A
Overload Protection: Yes
Shaft Diameter: 0.07" (2 mm)
Forward: Yes
Reverse: Yes
BEC Type: Switching
Motor Design: Inrunner
Outer Diameter: 0.94" (24 mm)

In The Box

(1) Firma 2 in 1 Brushless ESC + 6000kv motor
(1) Product Manual

Key Info:

Brand: Spektrum
Part No: SPMXSEM0501
Barcode: 605482164785
Fitment: Option Part

Additional Categories:

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Reviews

5/5 (1 reviews)

William

17th April 2023

Used this Motor/ESC Combo with FTX9395 RX to upgrade my Losi Mini B but keep the original TX. I can't imagine wanting any more performance, it's properly quick! Check the dual rates aren't set too low on the TX to get full performance.

WRITE A REVIEW

Name

Rating

Your Review

All reviews are subject to moderation

Questions & Answers

Real questions from real customers. Why not ask your own?

curious if this would work in the E revo 1/16 thank you

Michael / 11th March 2024

No, this would be too small and the KV rating is far to high for the E revo. You could possibly look at this one HW38020346

Si @ Wheelspin Models

Hi Could you show me a couple 2cell that are compatible thanks And also confirm the battery connector

Tony / 30th March 2023

The connector is IC2 or EC2 and this is the battery recommended DYNB825H2

Steve @ Wheelspin Models

Does this motor have forward and revers. Just I read something about clockwise only. Thanks

Tony Creighton / 23rd October 2022

Yes as far as I'm aware this should have reverse capability

Ben @ Wheelspin Models
