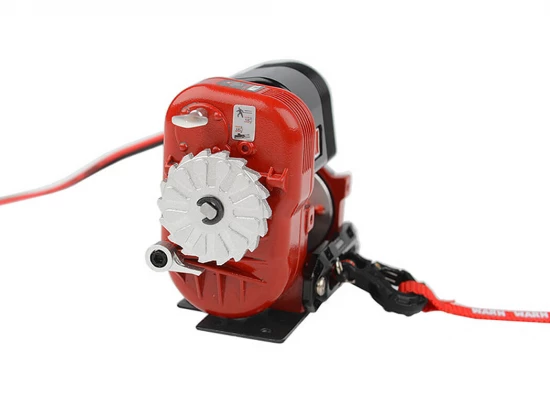

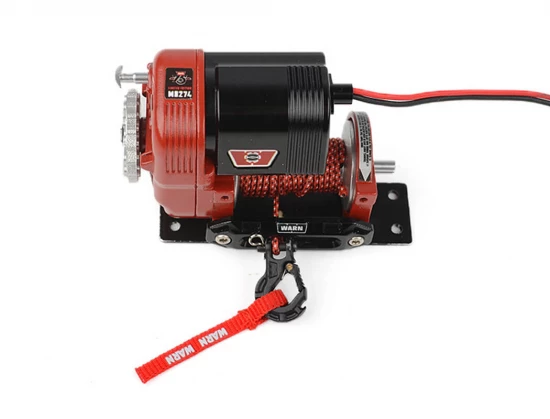

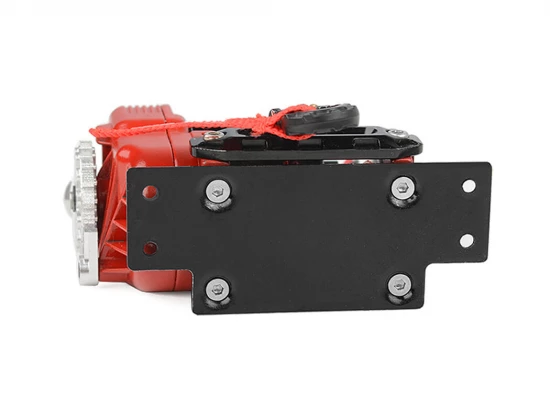

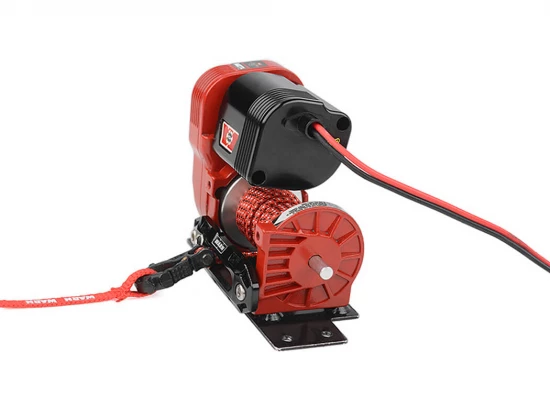

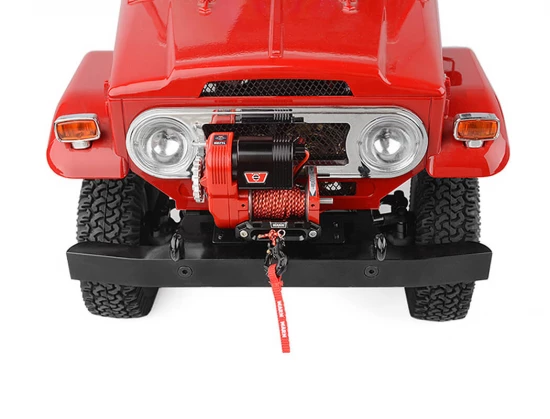

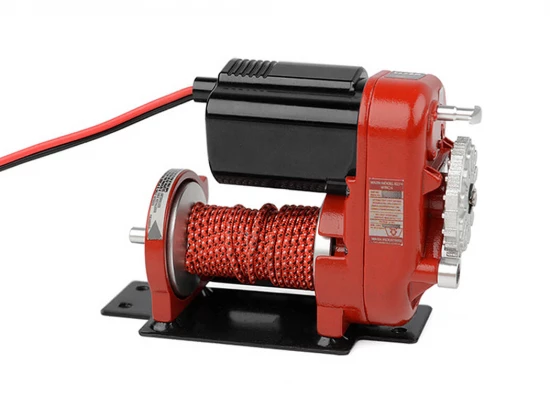

RC4WD 1:10 Warn 8274 Winch (75th Anniversary Edition)

The RC4WD 1/10 Warn 8274 Winch (75th Anniversary Edition) delivers a licensed, ultra-scale replica of the custom-configured M8274 WARN winch. Built with quality materials and attention to detail, this Z-E0027 unit combines heavy-duty pulling performance with true-to-life looks, including pre-installed WARN decals, a working spring-loaded hook and a synthetic winch rope.

Engineered for reliable operation across common crawler power setups, the winch offers a rated voltage of 6V and operates from 6V to 12.4V, including 3‑cell LiPo. A free-spool function makes line management simple, while robust construction gives confidence on challenging recoveries.

Features

• CNC machined; billet and cast aluminium construction
• Working spring-loaded WARN hook
• Synthetic winch rope with 3.28ft / 1.0m pre-installed
• Highly detailed with full WARN decals installed
• Free spool
• Rated voltage: 6V; operating voltage: 6V–12.4V (can operate on 3‑cell LiPo)
• Load limits: Dead lift 50lbs / 22.6kgs; rolling drag 70lbs / 31.7kgs
• Winch rope load limits: Dead lift 25lbs / 11.3kgs; rolling drag 37lbs / 16.8kgs
• 30 day warranty

Specifications

• Length: 2.56in / 65.0mm
• Width: 1.06in / 27.0mm
• Height: 1.77in / 45.0mm
• Weight: 4.23oz / 120g

What’s Included

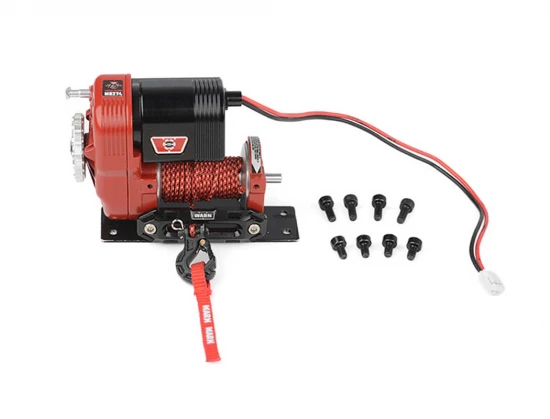

• 1 x RC4WD 1/10 Warn 8274 Winch (75th Anniversary Edition)
• 4 x M2.5 x 4mm SHCS (Black)
• 4 x M2.5 x 6mm SHCS (Black) (Z-S0855)
• 1 x RC4WD Warn Winch Pull Tags (Z-S1660)
• 1 x Warn Decal Sheet Set

Suggested Compatibility

• RC4WD Universal Winch Mounting Plates (Z-S1609) – helps position the winch to avoid interference on your build
• RC4WD Marlin Crawler Front Plastic Tube Bumper for Trail Finder 2 (Z-S0594)
• RC4WD Jeep JK Rampage Recovery Bumper to fit Axial SCX10 Chassis (Z-S0434)
• Tough Armor Winch Bumper with Grill Guard for Axial Jeep Rubicon (Z-S1193)
• RC4WD Marlin Crawler Front Winch Bumper for Trail Finder 2 (Z-S1496) (remove the fairlead)

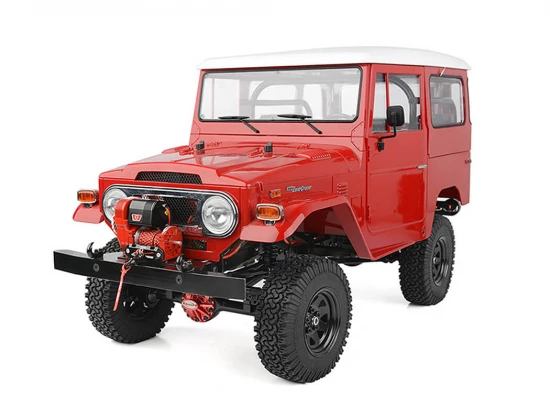

• RC4WD Trail Finder 3 RTR w/ Mojave II Hard Body Set (Z-RTR0045)

Notes

• The side gear lock is cosmetic only; ensure it does not contact the gear during operation.
• This winch is very strong; the line will fail before the winch reaches maximum capacity.
• Warn and the Warn name are registered trademarks of Warn Industries. The Warn logo is property of Warn Industries.
