1.9gm Linear Long Throw Ball Bearing Servo
Brand: Spektrum
Part No: SPMAS2000LBB
Shadow Stock: Usually ships next day

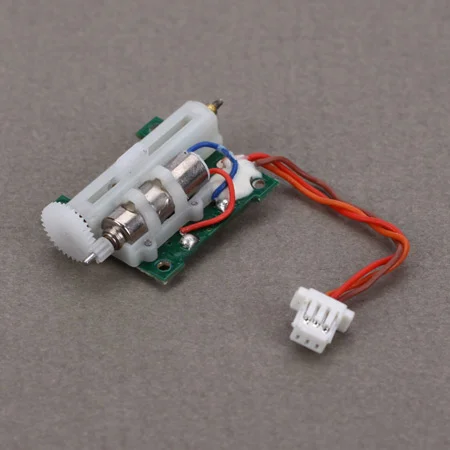

Spektrum's AS2000LBB 1.9 g Linear Long Throw Ball Bearing Servo (part number SPMAS2000LBB) is a micro-weight, high-performance option for ultra-micro aircraft. As the ball-bearing version of the AS2000L, it improves control-surface centring and delivers robust, precise movement suited to aggressive 3D flight in micro helis and planes.
With a compact footprint, a JST-SHR 1.0 mm connector and 9.1 mm throw, this analogue, brushed linear servo is designed for air use where low mass and quick response matter.
Features
- Compact footprint
- JST-SHR connector type (1.0 mm)
- Two ball bearings
- 9.1 mm servo throw
Specifications
- Servo type: Analogue, linear
- Motor type: Brushed
- Operating voltage: 3.2–4.2 V
- Maximum speed: 0.14 sec @ 4.2 V
- Maximum torque: 2.8 oz/in @ 4.2 V
- Connector: JST-SHR 1.0 mm
- Size category: Ultra micro
- Application: Air / airplane
- Water-resistant: No
- Bearings: Two (ball bearing)
- Gears: Plastic
- Dimensions (L x W x H): 17 x 22 x 8 mm
- Weight: 1.9 g (0.06 oz)
Suggested Compatibility
- Spektrum AR6400 series receivers
Secured by Stripe
The AS2000LBB is a ball-bearing version of the AS2000L servo. It’s a high performance micro-weight servo used in ultra-micro heli and plane applications and is compatible with the AR6400 series of Spektrum receivers.
Ultra-micro aircraft builders will want the 2000LBB for the better control surface centering and robust action aggressive 3D flight demands.
1.9gm Linear Long Throw Ball Bearing Servo Features:- Compact footprint
- JST-SHR connector type
- Two ball bearings
- 9.1mm servo throw
1.9gm Linear Long Throw Ball Bearing Servo Specfications:
- Motor Type: Brushed
- Servo Operating Voltage: 3.2 - 4.2V
- Product Width: 0.87" (22 mm)
- Product Application: Air
- Product Height: 0.33" (8 mm)
- Servo Type: Analog
- Programmable: No
- Servo Size Category: Ultra Micro
- Maximum Servo Torque: 2.8 oz/in @ 4.2V
- Application: Airplane
- Product Weight: 0.06oz (1.9 g)
- Water-Resistant: No
- Connector Type: JST-SHR 1.0 mm
- Maximum Servo Speed: 0.14 sec @ 4.2V
- Product Length: 0.66" (17 mm)
- Bushing Or Bearing: Bearing
- Gear Type: Plastic
Key Info:
- Brand: Spektrum
- Part No: SPMAS2000LBB
- Barcode: 605482038055
- Fitment: Standard Part
