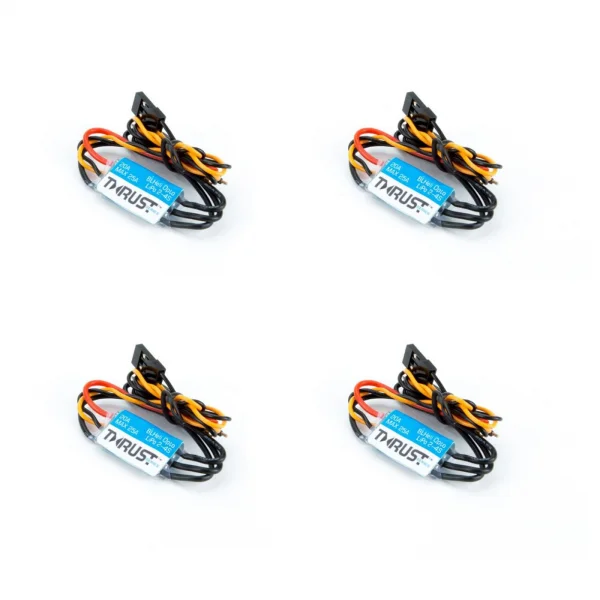

Blade 20A Brushless Heli Opto ESC Quad Pack (BLHA1006)
Brand: Blade
Part No: BLHA1006
€100.02
RRP €105.29
Shadow Stock: Usually ships next day
Finance options available at checkout.
Fits These Models (1)
Show all 1 models
Description
The Blade 20A ESC Brushless Heli Opto Quad Pack (BLHA1006) delivers four lightweight Thrust ESCs pre-flashed with BLHeli. Each unit supports 20A continuous current with 25A (10 seconds) burst and features Active Dampening and One Shot for responsive control. Opto (no BEC) design supports 2–4S setups, with built-in failsafe, over-heat protection and low voltage cutoff.
Key Features
- 4 Pack of Thrust ESCs
- Pre-Flashed with BLHeli
- Active Dampening and One Shot activated
- 20A Continuous with 25A (10sec)burst
- Failsafe protection, over-heat protection and low voltage cutoff
- 2-4s battery, Opto (no bec)
- Only 6.8g each
- Signal Frequency: 20-500Hz
- PWM Frequency: 18KHz
- Size: 24.5 x 12.9 x 5.2mm
Specifications
- Battery Input Lead: 20 AWG
- Product Width: 0.51 in (12.9mm)
- Overload Protection: Thermal
- Product Weight: 0.24 oz (6.8g)
- Programmable: No
- BEC: No
- Input Voltage: 9-17V (2-4S Battery, Opto, no BEC)
- Motor Output Lead: 20 AWG
- Product Height: 0.20 in (5.2mm)
- Product Length: 0.96 in (24.5mm)
- Maximum Burst Current: 25A (10 seconds)
Secure Payments
Secured by Stripe
20A ESC Brushless Heli Opto Quad Pack Manuals & Guides
Manuals & Guides
Specifications
20A ESC Brushless Heli Opto Quad Pack Features:
Key Info:
- 4 Pack of Thrust ESCs
- Pre-Flashed with BLHeli
- Active Dampening and One Shot activated
- 20A Continuous with 25A (10sec)burst
- Failsafe protection, over-heat protection and low voltage cutoff
- 2-4s battery, Opto (no bec)
- Only 6.8g each
- Signal Frequency: 20-500Hz
- PWM Frequency: 18KHz
- Size: 24.5 x 12.9 x 5.2mm
20A ESC Brushless Heli Opto Quad Pack Specfications:
- Battery Input Lead: 20 AWG
- Product Width: 0.51 in (12.9mm)
- Overload Protection: Thermal
- Product Weight: 0.24 oz (6.8g)
- Programmable: No
- BEC: No
- Input Voltage: 9-17V (2-4S Battery, Opto, no BEC)
- Motor Output Lead: 20 AWG
- Product Height: 0.20 in (5.2mm)
- Product Length: 0.96 in (24.5mm)
- Maximum Burst Current: 25A (10 seconds)
Key Info:
- Brand: Blade
- Part No: BLHA1006
- Barcode: 605482628966
- Fitment: Option Part
- Fitment: Standard Part
