Description

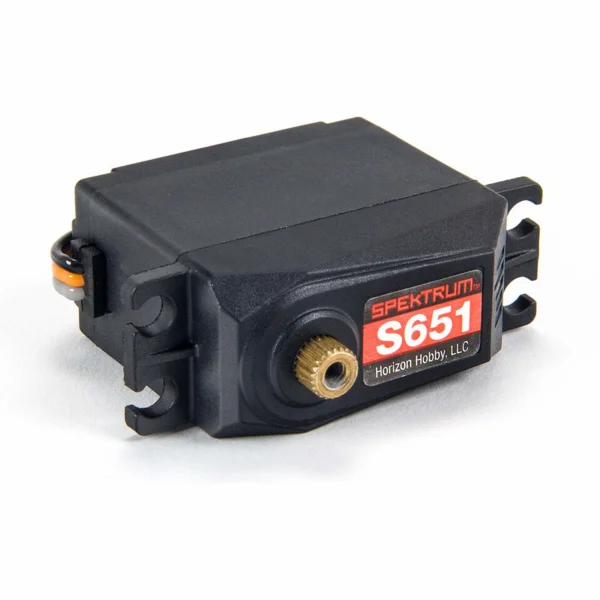

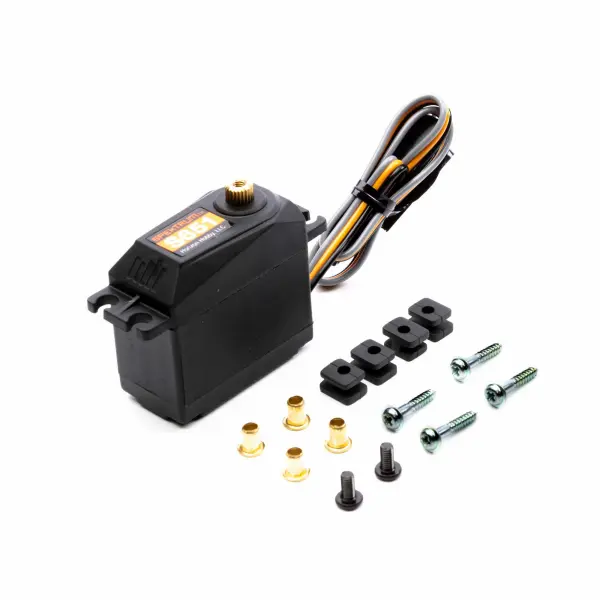

The Spektrum SPMS651 7Kg Servo – Steel/Brass Gear delivers dependable performance with a durable metal geartrain. Running on high-voltage systems from 6.0 to 7.4V and featuring a 23-tooth spline, it offers a solid balance of torque and precision in a compact 40 × 20 × 39 mm case.
Key Specifications
- Maximum Servo Torque: 88 oz-in, 6.37 kg-cm at 6V; 103 oz-in, 7.42 kg-cm at 7.2V
- Gear Type: Metal (steel/brass)
- Product Width: 0.79" (20 mm)
- Product Height: 1.55" (39 mm)
- Product Length: 1.58" (40 mm)
- Input Voltage: 6.0–7.2V
- Servo Operating Voltage: 6.0–7.4V (HV)
- Spline Count: 23-tooth
With its robust metal gears and HV capability, the SPMS651 is a reliable choice when you need consistent torque and smooth actuation from a 23T servo.
Secured by Stripe
Specifications
7Kg Servo - Steel/Brass Gear Specifications:
- Gear Type: Metal
- Input Voltage: 6.0v-7.2v
- Maximum Servo Torque: 88oz-in, 6.37kg-cm at 6v, 103oz-in, 7.42kg-cm at 7.2v
- Product Height: 1.55" (39 mm)
- Product Length: 1.58" (40 mm)
- Product Width: 0.79" (20 mm)
- Servo Operating Voltage: 6.0 - 7.4V (HV)
- Spline Count: 23 - Tooth
Key Info:
- Brand: Spektrum
- Part No: SPMS651
- Barcode: 605482717011
- Fitment: Standard Part
Additional Categories:
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Questions & Answers
Yes this is the direct replacement servo.
Yes this comes with the 23t spline system.
For more in depth queries, please contact us.
