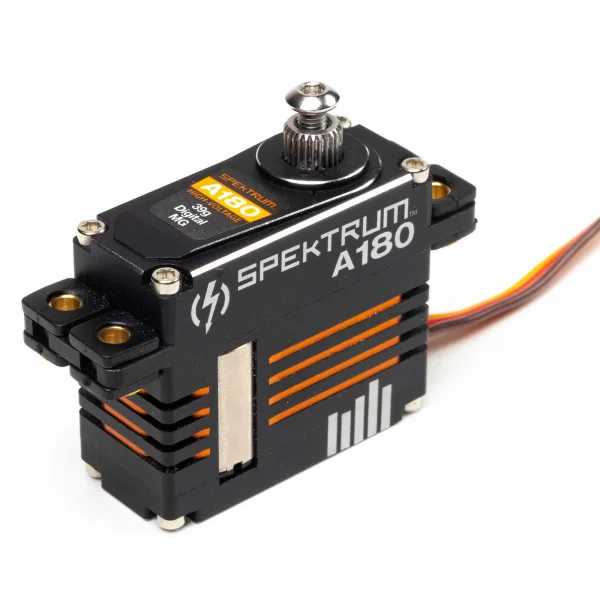

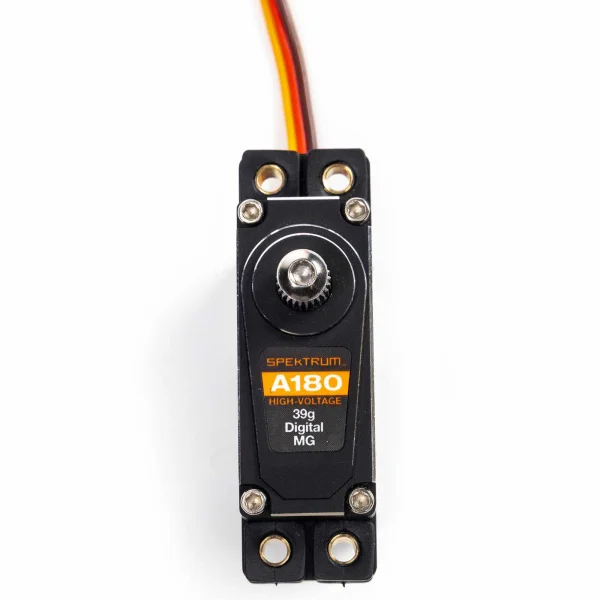

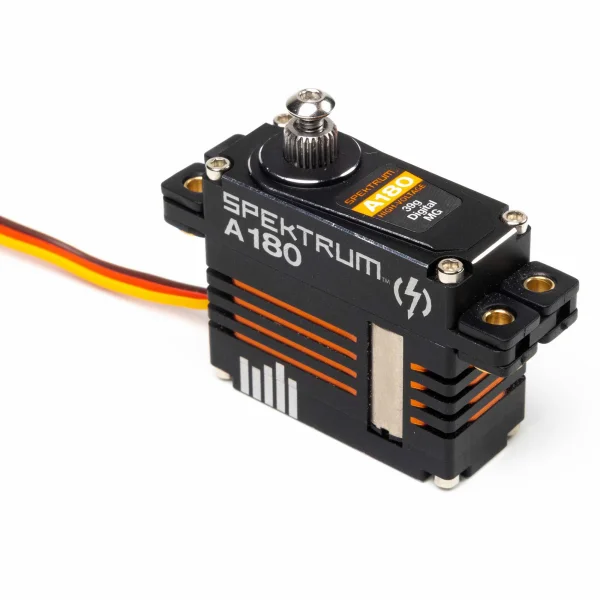

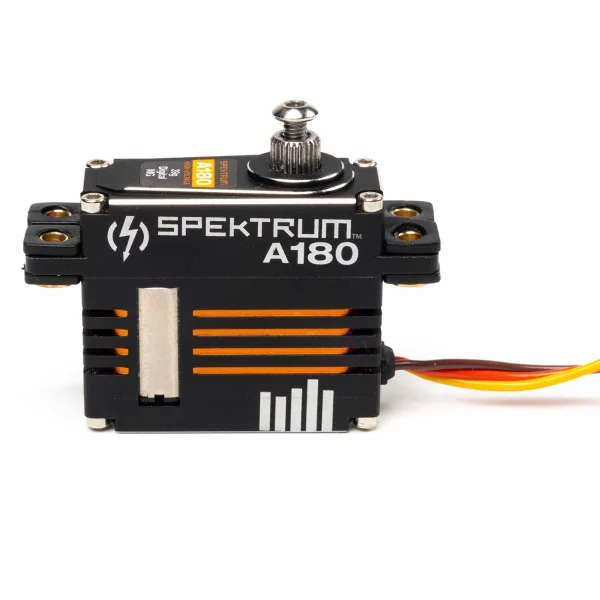

Spektrum A180 High-Voltage Digital Servo SPMSA180

The Spektrum A180 42g High-Voltage Metal-Geared Digital Servo, part number SPMSA180, is a digital aircraft servo with metal gears and a 25-tooth spline. It operates across a 6.0–8.4V high-voltage range and weighs 42g. The servo provides torque ratings of 7.92 kg-cm at 6V, 10.8 kg-cm at 7.4V and 12.2 kg-cm at 8.4V, with the listed maximum speed changing according to the applied voltage.

The A180 is supplied with plastic servo arms in various sizes, along with mounting grommets, eyelets and hardware. Its specification includes a 35.6 x 15.0 x 30.8 mm body, a digital servo type and metal gearing. The servo is not programmable and is not water-resistant, so its installation and use should take account of those stated characteristics. The 25-tooth spline provides the specified output interface for suitable servo accessories.

Specifications

• Application: Aircraft
• Dimensions: 35.6 x 15.0 x 30.8 mm
• Product weight: 42g
• Operating voltage: 6.0–8.4V
• Gear type: Metal
• Servo type: Digital
• Spline count: 25-tooth
• Torque: 7.92 kg-cm at 6V, 10.8 kg-cm at 7.4V and 12.2 kg-cm at 8.4V

What's Included

• A180 mini digital HV high-torque, high-speed metal-gear aircraft servo
• Plastic servo arms in various sizes
• Mounting grommets and eyelets with hardware
