A5080 MT/HS Mini Digital HV Servo

The Spektrum™ A5080 digital mini metal gear servo offers incredible performance for smaller sport size aircraft (25-32 size) and specialty aircraft applications. High voltage capable, the A5080 can produce 9.4kg-cm (130 oz-in) of torque at 0.094 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a coreless motor and bearing supported for smooth operation. The A5080 also features an aluminum center section case for efficient heat dissipation, plus low deadband and high resolution. Like all Spektrum servos, the A5080 delivers reliability, consistency and performance that are second to none.

A5080 MT/HS Mini Digital HV Servo Specfications:

• Deadband: Input Voltage 4.8V-8.4V Product Application Air Product Height 1.18" (30 mm) Servo Type Digital Application Airplane Overload Protection No Product Weight 1.2 oz (34g) Spline Count 23 - Tooth Water-Resistant No Connector Type Universal Maximum Servo Speed 0.14 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.094 sec/60 deg @ 8.4V Product Length 1.4" (36 mm) Programmable No Prop 65   California Residents Prop 65 WARNINGS. Servo Size Category Mini Product Width 0.59" (15 mm) Bearing Single BB Bushing Or Bearing Bearing Gear Type Metal Maximum Servo Torque 110 oz-in (7.92kg-cm) @ 6.0V; 118 oz-in (8.5kg-cm) @ 7.4V; 130 oz-in (9.4kg-cm) @ 8.4V Motor Type Brushed Servo Operating Voltage 4.8 - 8.4V (HV) Compatibility Compatibility Status Manufacturer Model Fitment Aermacchi MB-339 60-85N ARF Turbine Jet ARF, 84" Hangar 9 - HAN3390 Standard Parts Optional Parts Aermacchi MB-339 60-86N Scale Military Turbine Jet ARF, 84" Hangar 9 - HAN3390B Standard Parts Optional Parts Aermacchi MB-339 60-86N Scale Military Turbine Jet ARF, 84" with KingTech K-86G4+ Turbine Combo Hangar 9 - HAN3390BCKT86 Standard Parts Optional Parts Aermacchi MB-339 ARF with KingTech K-70G4+ Turbine and Spektrum Servo Combo Hangar 9 - HAN3390CKT70S Standard Parts Optional Parts Aermacchi MB-339 ARF with KingTech K-70G4+ Turbine Combo Hangar 9 - HAN3390CKT70 Standard Parts Optional Parts Aermacchi MB-339 ARF with KingTech K-85G4+ Turbine and Spektrum Servo Combo Hangar 9 - HAN3390CKT85S Standard Parts Optional Parts Aermacchi MB-339 ARF with KingTech K-85G4+ Turbine Combo Hangar 9 - HAN3390CKT85 Standard Parts Optional Parts A5030 Mini Digital Aircraft Servo Spektrum - SPMSA5030 Standard Parts Optional Parts AR10400T 10-Channel PowerSafe Telemetry Receiver Spektrum - SPMAR10400T Optional Parts AR14400T 14-Channel PowerSafe Telemetry Receiver Spektrum - SPMAR14400T Optional Parts AR20400T 20-Channel PowerSafe Telemetry Receiver Spektrum - SPMAR20400T Optional Parts AR410 DSMX 4-Channel Sport Receiver Spektrum - SPMAR410 Optional Parts AR620 DSMX 6-Channel Sport Receiver Spektrum - SPMAR620 Standard Parts Optional Parts AR630 DSMX 6-Channel AS3X & SAFE Receiver Spektrum - SPMAR630 Optional Parts AR631 DSMX 6-Channel AS3X & SAFE Receiver Spektrum - SPMAR631 Optional Parts AR637T+ DSMX 6-Channel AS3X+ & SAFE Telemetry Receiver Spektrum - SPM-1032 Optional Parts AR637T DSMX 6-Channel AS3X & SAFE Telemetry Receiver Spektrum - SPMAR637T Standard Parts Optional Parts AR6610T DSMX 6-Channel Telemetry Receiver Spektrum - SPMAR6610T Standard Parts Optional Parts AR8020T DSMX 8-Channel Telemetry Receiver Spektrum - SPMAR8020T Optional Parts AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver Spektrum - SPM-1033 Optional Parts AR8360T DSMX 8-Channel AS3X & SAFE Telemetry Receiver Spektrum - SPMAR8360T Optional Parts DSMX Carbon Fiber Remote Receiver Spektrum - SPM9746 Optional Parts DX6e 6-Channel DSMX Transmitter with AR620 Spektrum - SPM6655 Standard Parts Optional Parts NX6 6-Channel DSMX Transmitter with AR6610T Telemetry Receiver Spektrum - SPM6775 Standard Parts Optional Parts NX8 8-Channel DSMX Transmitter with AR8020T Telemetry Receiver Spektrum - SPM8200 Standard Parts Optional Parts SRXL2 DSMX Serial Micro Receiver Spektrum - SPM4650 Standard Parts Optional Parts No results for your given fitment filters Support Manuals & Support Instruction Manual Spektrum Servo Comparison Chart Optional Parts Get Info From Communities RC 101 Buying Guides Troubleshooting Downloads How-To's Product Details In The Box (1) A5080 Mini Digital Servo (4) Pre-installed Mounting Grommets and Eyelets With Hardware (3) Plastic Servo Arms and (1) Screw Club Points Information icon-close Horizon Hobby RC Club: The points displayed are points you will earn based on your membership level and the cost value of the product. Be sure you are Signed In to your account to see the most accurate points you will earn on your purchase. Points are awarded and available for use once your order has shipped complete. Points per $1 Spent Standard Legend Elite 5 15 20 2000 points = $5 Discount Points displayed here do not include Bonus Points for select product. If the product is marked with the Bonus Points badge you will also earn the extra "Bonus Points" points listed in the banner in addition to the calculated points displayed .about-strong { color: #333; line-height: 2.5em; margin-bottom: 0; margin-top: 0; font-weight: 500; border-top: 1px solid; -o-border-image: linear-gradient(90deg, #333 40px, transparent 0, transparent) 100% 1; border-image: linear-gradient(90deg, #333 40px, transparent 0, transparent) 100% 1; } HORIZON HOBBY, WHERE RC MEMORIES LIVE. Who We Are. At Horizon Hobby, our personal goal is to inspire dreams and build memories. We take pride in providing the best hobby store experience for our customers, whether that’s online, at RC events, or in the RC community with RC cars, RC planes, RC boats, and so much more. Our Values. Our purpose is simple: deliver WOW moments. By pursuing the best experience through our portfolio of RC cars, helicopters, airplanes, boats, and more, we bring the RC community together in every city, town, and country. We are radio control innovators and Driven is our middle name. Our Promise. Our promise to our customers is creating one-of-a-kind experiences that keeps you coming back for more. We are more than an online hobby store. Our RC cars and trucks, RC airplanes and helicopters, and other radio control products are with you at home, on the go, and with your friends. We bring the fun. Our policies are top notch: Same Day Shipping Free Shipping Over $99 Expert Product Support Easy Returns .footer-text-alert { color: #333333; font-size: 1.125rem; font-weight: 500; margin-bottom: 0.5rem; } Sign up & save 10% on your next order!* Be the first to know about new products, deals, and events. 10% discount does not apply to E-Gift Cards or discounted items. *Some exclusions may apply. First time subscribers only. Your discount code will be emailed to you. SIGN UP Sign up for Horizon Hobby Text Alerts! Never miss out - text HOBBY to 44721Learn More Shop New Releases Our Brands Spektrum Certified Used Fan Gear E-Gift Card Vehicle Finder RC Club Bonus Points Shop Local Find a Wishlist Trains Support Technical Product Support RC Blog Order Status Repairs Product Registration Check E-Gift Card Balance Shipping, Billing & Returns Event Donations Train Support Know Before You Fly Get Help Company Info Our Story Contact Us Horizon Brands RC Club Horizon Hobby Visa Card RC Events Calendar Careers Purchasing & Dealer Inquiries Hobbies for Good Racer Payout Program Affiliate Program Legal Privacy Policy Terms & Conditions Site Map Compliance Patents Product Recalls Trademarks Copyright © Horizon Hobby, LLC const d = new Date(); let year = d.getFullYear(); document.getElementById("footeryear").innerHTML = year; if (document.getElementById("rccpromoCountdown") !== null) { // Set the date we're counting down to var countDownDate = new Date("August 21, 2024 23:59:59 GMT-0600").getTime(); // Update the count down every 1 second var x = setInterval(function () { // Get today's date and time var now = new Date().getTime(); // Find the distance between now and the count down date var distance = countDownDate - now; // Time calculations for days, hours, minutes and seconds var days = Math.floor(distance / (1000 * 60 * 60 * 24)); var hours = Math.floor( (distance % (1000 * 60 * 60 * 24)) / (1000 * 60 * 60) ); var minutes = Math.floor((distance % (1000 * 60 * 60)) / (1000 * 60)); var seconds = Math.floor((distance % (1000 * 60)) / 1000); // Output the result in an element with id="rccpromoCountdown" document.getElementById("rccpromoCountdown").innerHTML = days + "d " + hours + "h " + minutes + "m " + seconds + "s "; // If the count down is over, write some text if (distance < 0) { clearInterval(x); document.getElementById("rccpromoCountdown").innerHTML = "EXPIRED"; } }, 1000); } if (document.getElementById("promo-cd") !== null) { // Set the date we're counting down to var countDownDate = new Date("July 28, 2024 23:59:59 GMT-0600").getTime(); // Update the count down every 1 second var x = setInterval(function () { // Get today's date and time var now = new Date().getTime(); // Find the distance between now and the count down date var distance = countDownDate - now; // Time calculations for days, hours, minutes and seconds var days = Math.floor(distance / (1000 * 60 * 60 * 24)); var hours = Math.floor( (distance % (1000 * 60 * 60 * 24)) / (1000 * 60 * 60) ); var minutes = Math.floor((distance % (1000 * 60 * 60)) / (1000 * 60)); var seconds = Math.floor((distance % (1000 * 60)) / 1000); // Output the result in an element with id="promo-cd" document.getElementById("promo-cd").innerHTML = days + "d " + hours + "h " + minutes + "m " + seconds + "s "; // If the count down is over, write some text if (distance < 0) { clearInterval(x); document.getElementById("promo-cd").innerHTML = "EXPIRED"; } }, 1000); } pageContext = {"title":"Product Detail","type":"product","ns":"product"}; (function () { var merchantConfig = { csp: false }; var siteId = '3ed49bd3aa79'; function t(t,n){for(var e=t.split(""),r=0;r>8&255]+c+e[n>>16&15|64]+e[n>>24&255]+c+e[63&r|128]+e[r>>8&255]+c+e[r>>16&255]+e[r>>24&255]+e[255&o]+e[o>>8&255]+e[o>>16&255]+e[o>>24&255]},i=function(){if(window.Uint32Array&&window.crypto&&window.crypto.getRandomValues){var t=new window.Uint32Array(4);return window.crypto.getRandomValues(t),{d0:t[0],d1:t[1],d2:t[2],d3:t[3]}}return{d0:4294967296*Math.random()>>>0,d1:4294967296*Math.random()>>>0,d2:4294967296*Math.random()>>>0,d3:4294967296*Math.random()>>>0}},c=function(){var t="",n=function(t,n){for(var e="",r=t;r>0;--r)e+=n.charAt(1e3*Math.random()%n.length);return e};return t+=n(2,"0123456789"),t+=n(1,"123456789"),t+=n(8,"0123456789")};return t.safeGenerateNoDash=function(){try{var t=i();return o(t.d0,t.d1,t.d2,t.d3,!1)}catch(t){try{return n+c()}catch(t){}}},t.isValidNumericalToken=function(t){return t&&t.toString().length=9&&parseInt(t,10).toString().length=9},t.isValidUUIDToken=function(t){return t&&32===t.toString().length&&/^[a-z0-9]+$/.test(t)},t.isValidFGUToken=function(t){return 0==t.indexOf(n)&&t.length>=12},t}(),R={uDF:"UDF",dUAL:"dUAL",uAS:"UAS",mLd:"1",eTlu:"2",eUoe:"3",uS:"4",uF:"9",tmos:["T5","T10","T15","T30","T60"],tmosSecs:[5,10,15,30,60],bIR:"43",uB:"u",uBr:"b",cP:"c",nIL:"i",s:"s"};try{var B=I();try{B.id&&(V.isValidNumericalToken(B.id)||V.isValidUUIDToken(B.id)||V.isValidFGUToken(B.id))?window.ftr__ncd=!1:(B.id=V.safeGenerateNoDash(),window.ftr__ncd=!0),B.ts=window.ftr__startScriptLoad,F(B),window.ftr__snp_cwc=!!_.read(p),window.ftr__snp_cwc||(C=D);for(var G="for"+"ter"+".co"+"m",M="ht"+"tps://c"+"dn9."+G,O="ht"+"tps://"+B.id+"-"+siteId+".cd"+"n."+G,j="http"+"s://cd"+"n3."+G,N=[M,O,j],H=0;H // insyncCustomCssSrc: "", // Optional: Pass any other reference if needed //insyncContextParams: { // any-other-reference: "" //}, }; var insyncWebchatScript = document.createElement("script"); var insyncWebchatJsSrc = "https://dbrd449anfbv4.cloudfront.net/insync_webchat_"+insyncChatbotConfig.insyncEnv+".js"; insyncWebchatScript.setAttribute("src", insyncWebchatJsSrc); insyncWebchatScript.onload = function(){ insyncSetChatEnv(insyncChatbotConfig); }; document.head.appendChild(insyncWebchatScript); //
• Input Voltage: 4.8V-8.4V
• Product Application: Air
• Product Height: 1.18" (30 mm)
• Servo Type: Digital
• Application: Airplane
• Overload Protection: No
• Product Weight: 1.2 oz (34g)
• Spline Count: 23 - Tooth
• Water-Resistant: No
• Connector Type: Universal
• Maximum Servo Speed: 0.14 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.094 sec/60 deg @ 8.4V
• Product Length: 1.4" (36 mm)
• Programmable: No
• Prop 65:   California Residents Prop 65 WARNINGS.
• Servo Size Category: Mini
• Product Width: 0.59" (15 mm)
• Bearing: Single BB
• Bushing Or Bearing: Bearing
• Gear Type: Metal
• Maximum Servo Torque: 110 oz-in (7.92kg-cm) @ 6.0V; 118 oz-in (8.5kg-cm) @ 7.4V; 130 oz-in (9.4kg-cm) @ 8.4V
• Motor Type: Brushed
• Servo Operating Voltage: 4.8 - 8.4V (HV)
• Aermacchi MB-339 60-85N ARF Turbine Jet ARF, 84" Hangar 9 - HAN3390 Standard Parts Optional Parts : Aermacchi MB-339 60-86N Scale Military Turbine Jet ARF, 84" Hangar 9 - HAN3390B Standard Parts Optional Parts
• Aermacchi MB-339 60-86N Scale Military Turbine Jet ARF, 84" with KingTech K-86G4+ Turbine Combo Hangar 9 - HAN3390BCKT86 Standard Parts Optional Parts : Aermacchi MB-339 ARF with KingTech K-70G4+ Turbine and Spektrum Servo Combo Hangar 9 - HAN3390CKT70S Standard Parts Optional Parts
• Aermacchi MB-339 ARF with KingTech K-70G4+ Turbine Combo Hangar 9 - HAN3390CKT70 Standard Parts Optional Parts : Aermacchi MB-339 ARF with KingTech K-85G4+ Turbine and Spektrum Servo Combo Hangar 9 - HAN3390CKT85S Standard Parts Optional Parts
• Aermacchi MB-339 ARF with KingTech K-85G4+ Turbine Combo Hangar 9 - HAN3390CKT85 Standard Parts Optional Parts : A5030 Mini Digital Aircraft Servo Spektrum - SPMSA5030 Standard Parts Optional Parts
• AR10400T 10-Channel PowerSafe Telemetry Receiver Spektrum - SPMAR10400T Optional Parts : AR14400T 14-Channel PowerSafe Telemetry Receiver Spektrum - SPMAR14400T Optional Parts
• AR20400T 20-Channel PowerSafe Telemetry Receiver Spektrum - SPMAR20400T Optional Parts : AR410 DSMX 4-Channel Sport Receiver Spektrum - SPMAR410 Optional Parts
• AR620 DSMX 6-Channel Sport Receiver Spektrum - SPMAR620 Standard Parts Optional Parts : AR630 DSMX 6-Channel AS3X & SAFE Receiver Spektrum - SPMAR630 Optional Parts
• AR631 DSMX 6-Channel AS3X & SAFE Receiver Spektrum - SPMAR631 Optional Parts : AR637T+ DSMX 6-Channel AS3X+ & SAFE Telemetry Receiver Spektrum - SPM-1032 Optional Parts
• AR637T DSMX 6-Channel AS3X & SAFE Telemetry Receiver Spektrum - SPMAR637T Standard Parts Optional Parts : AR6610T DSMX 6-Channel Telemetry Receiver Spektrum - SPMAR6610T Standard Parts Optional Parts
• AR8020T DSMX 8-Channel Telemetry Receiver Spektrum - SPMAR8020T Optional Parts : AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver Spektrum - SPM-1033 Optional Parts
• AR8360T DSMX 8-Channel AS3X & SAFE Telemetry Receiver Spektrum - SPMAR8360T Optional Parts : DSMX Carbon Fiber Remote Receiver Spektrum - SPM9746 Optional Parts
• DX6e 6-Channel DSMX Transmitter with AR620 Spektrum - SPM6655 Standard Parts Optional Parts : NX6 6-Channel DSMX Transmitter with AR6610T Telemetry Receiver Spektrum - SPM6775 Standard Parts Optional Parts
• NX8 8-Channel DSMX Transmitter with AR8020T Telemetry Receiver Spektrum - SPM8200 Standard Parts Optional Parts : SRXL2 DSMX Serial Micro Receiver Spektrum - SPM4650 Standard Parts Optional Parts
• Same Day Shipping: Free Shipping Over $99
• Expert Product Support: Easy Returns

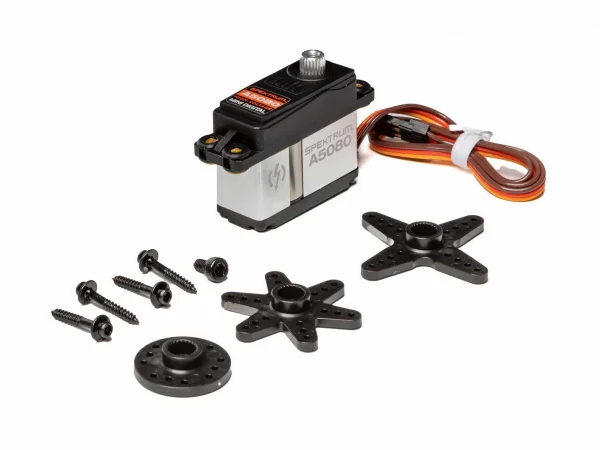

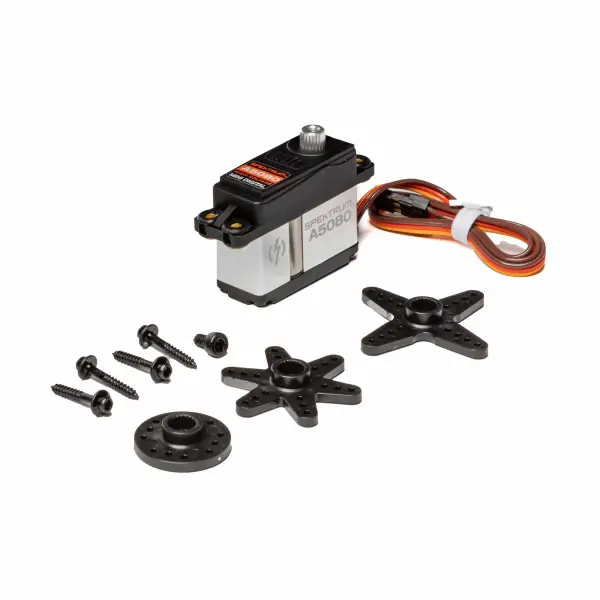

• (1) A5080 Mini Digital Servo
• (4) Pre-installed Mounting Grommets and Eyelets With Hardware
• (3) Plastic Servo Arms and (1) Screw

• Brand: Spektrum
• Part No: SPMSA5080
• Barcode: 605482153802
• Fitment: Option Part
