A6190 Standard Metal Gear HV Aircraft Servo

The Spektrum A6190 Standard Metal Gear HV Digital Servo (SPMSA6190) delivers dependable control for sport and trainer aircraft. High-voltage capable for direct 2S LiPo use, it combines a durable metal gear train with a 5‑pole ferrite motor and dual ball bearings for smooth, precise operation and low deadband performance.

Features

• Operating voltage: 4.8–8.4V (HV)
• Digital, standard-size aircraft servo
• 5‑pole ferrite motor with dual ball bearings
• Metal gears and 23‑tooth spline output
• Universal connector
• Programmable: No; Water-resistant: No; Overload protection: No

Performance

• Speed: 0.22 sec/60° @ 6.0V; 0.17 sec/60° @ 7.4V; 0.13 sec/60° @ 8.4V
• Torque: 90 oz‑in (6.48 kg‑cm) @ 6.0V; 98 oz‑in (7 kg‑cm) @ 7.4V; 115 oz‑in (8.3 kg‑cm) @ 8.4V

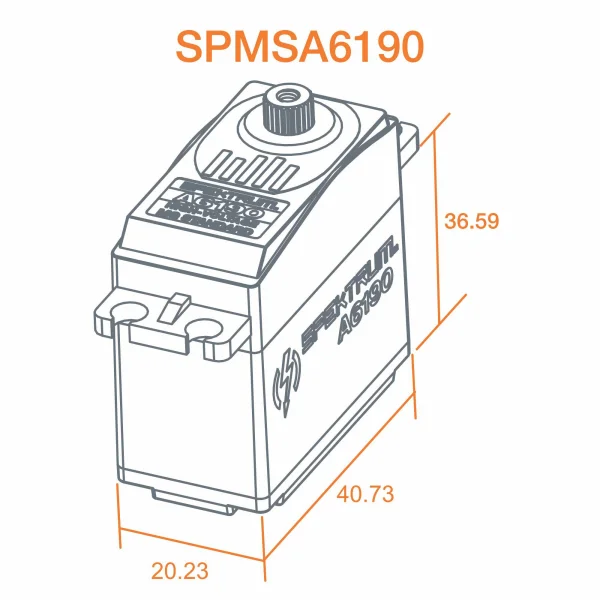

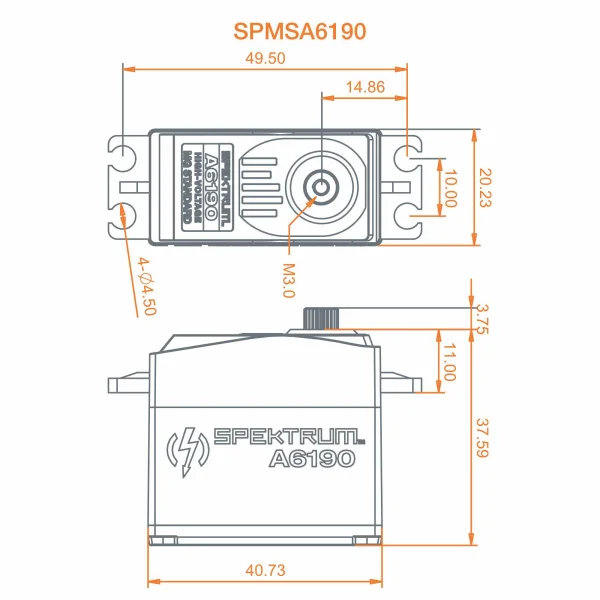

Dimensions & Weight

• Length: 1.47" (37 mm)
• Width: 0.78" (20 mm)
• Height: 1.58" (40 mm)
• Weight: 1.9 oz (54 g)

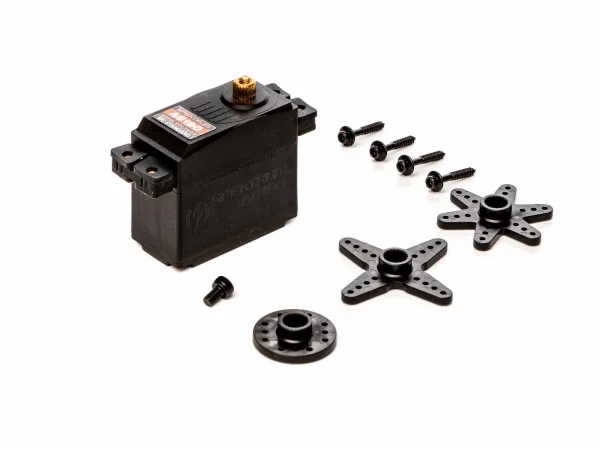

In The Box

• (1) A6190 Standard Digital Servo
• (4) Pre‑installed mounting grommets and eyelets with hardware
• (3) Plastic servo arms and (1) screw

Suggested Compatibility

Examples include selected Hangar 9 and E‑flite models such as the Carbon Cub 15cc (HAN5065), Meridian 10cc (HAN5015), P‑51D Mustang 20cc (HAN2820), Ultra Stick 10cc/30cc (HAN2345/HAN2365) and the E‑flite Viper 90mm EDF (EFL17770). Compatibility should be confirmed for individual installations.
