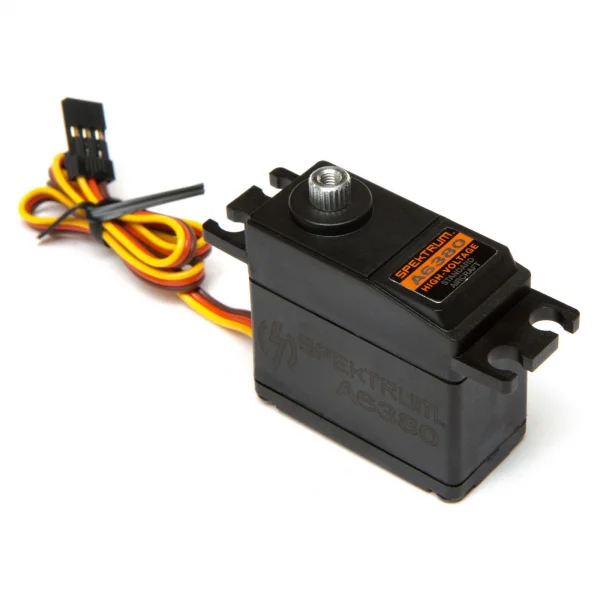

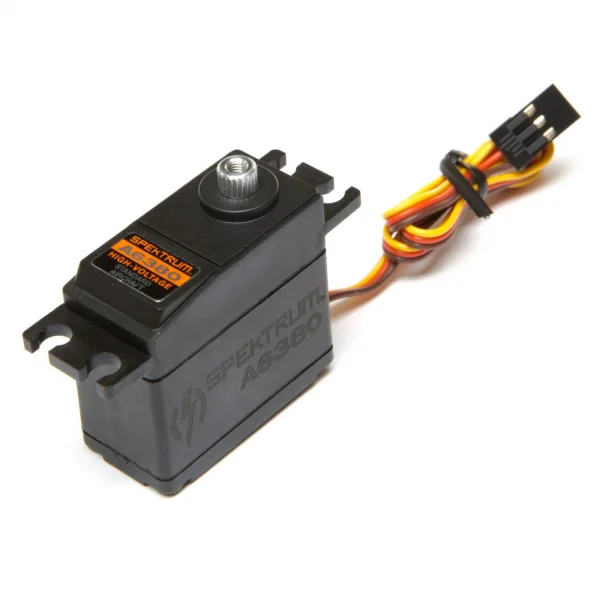

A6380 High Torque High Speed Plastic HV Servo

The Spektrum A6380 High Torque High Speed Plastic HV Servo (SPMSA6380) is a budget-friendly, standard-size digital servo designed for sport aeroplanes. It combines a smooth coreless motor with metal gears and dual bearing output support for reliable, precise control.

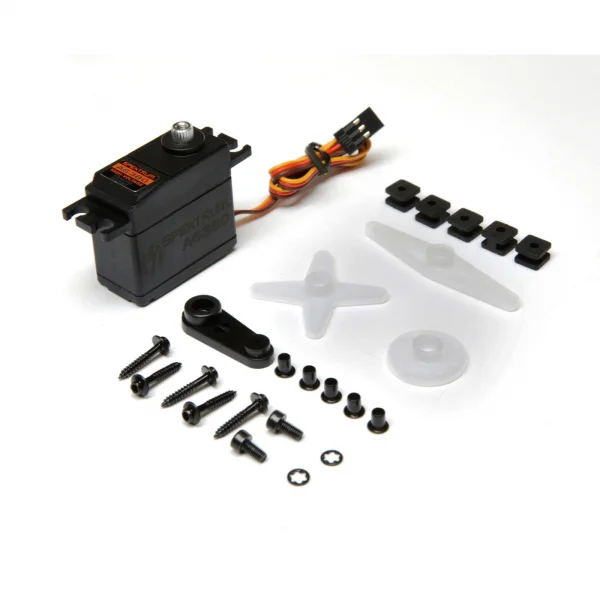

Delivering up to 160 oz-in (11.5 kg-cm) of torque at 8.4V with a swift 0.13 sec/60°, the A6380 offers strong performance in a durable plastic-cased package. A universal connector and 300 mm, 24 AWG lead make installation straightforward in typical RC aircraft setups. Suggested compatibility includes standard 23-tooth servo arms and receivers using a universal plug.

Specifications

• Servo Type: Digital
• Servo Size Category: Standard
• Product Application: Air
• Application: Airplane
• Servo Operating Voltage / Input Voltage: 6.0V to 8.4V (HV)
• Maximum Servo Torque: 102 oz-in (7.3 kg-cm) @ 6V; 160 oz-in (11.5 kg-cm) @ 8.4V
• Maximum Servo Speed: 0.17 sec/60° @ 6V; 0.13 sec/60° @ 8.4V
• Motor: Coreless
• Gear Type: Metal
• Bearing: Dual (Bushing or Bearing: Bearing)
• Spline Count: 23-tooth
• Connector Type: Universal
• Connector Wire Length: 11.8" (300 mm)
• Wire Gauge: 24 AWG
• Product Length: 1.52" (39 mm)
• Product Width: 0.74" (19 mm)
• Product Height: 1.47" (37 mm)
• Product Weight: 1.5 oz (42.5 g)
• Deadband: 5 µs
• Programmable: No
• Water-Resistant: No
