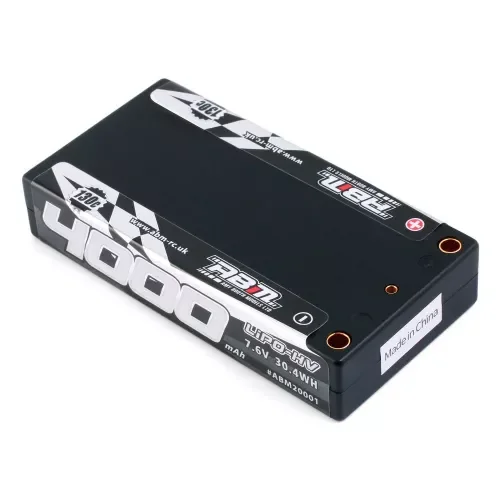

ABM LiPo Race Battery - 4000mAh 7.6V 130C 4mm Shorty - BRCA Approved

The Amy Booth Models (ABM) ABM20001 LiPo Race Battery delivers dependable performance in a compact shorty LCG format. With a nominal 7.6V and a capacity range of 3900–4100mAh, it offers a 65C continuous discharge with 130C pulse capability for short bursts. A durable ABS+PC casing with sonic-welded sealing and 4mm discharge tubes make it a robust choice for competitive RC use, and it is BRCA approved.

Features

• Configuration: Shorty LCG Style
• Battery pack weight: 145 ± 5.6g
• Length: 92.5mm +0/-1mm
• Width: 47mm +0/-1mm
• Thickness: 17.8mm +0/-1mm
• Casing material: ABS+PC
• Casing nominal thickness: 1.0mm
• Casing sealing: Sonic-welding
• Discharge point: dia. 4mm tubes (positive / negative terminals)
• Charging port: dia. 2mm tube balance

Specification

• Nominal Voltage: 7.6V
• Nominal Capacity: 3900-4100mAh
• Nominal Impedance: .9-1.3 mOhm per cell
• Charging method: CC/CV mode (high quality LiPo chargers only)
• Charge cutoff voltage: 8.40V ±0,05V (BRCA rules allow 4.20v per cell)
• Charging current: 4.0 amps (typical)
• 2C charging possible, with special attention for accurate cutoff
• Discharge cutoff voltage: 6.2V ±0,05V
• Discharge continuous: 65c
• Discharge pulse (max): 130c (less than 6sec. for each pulse)
• Discharge Temp range: -20~+60 deg-C
• Charging Temp range: 0~ +45 deg-C
• Storage Temperature: -20~+45 deg-C
• Storage Humidity: 65 ±20% RH
