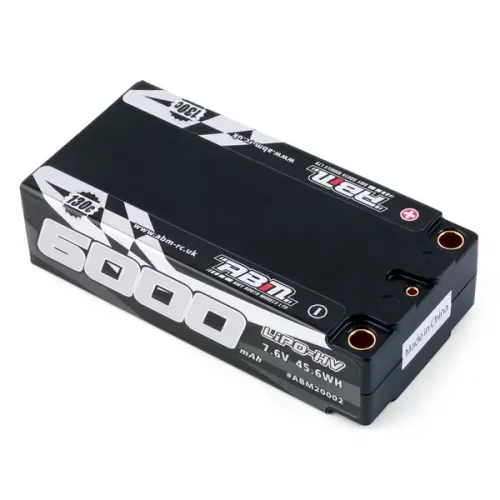

ABM LiPo Race Battery - 6000mAh 7.6V 130C 5mm Shorty - BRCA Approved

The ABM LiPo Race Battery 6000mAh 7.6V 130C 5mm Shorty is a BRCA approved hardcase pack designed for reliable performance and durability. Part number ABM20002. It features 5mm discharge tubes and a 2mm balance port within a sonic-welded ABS+PC case, with compact shorty dimensions to suit a wide range of racing layouts.

Features

• Configuration: Shorty Full Size Style
• Battery pack weight: 225 ± 9g
• Length: 96mm +0/-1mm
• Width: 46.8mm +0/-1mm
• Thickness: 24.9mm +0/-1mm
• Casing material: ABS+PC
• Casing nominal thickness: 1.0mm
• Casing sealing: Sonic-welding
• Discharge point: dia. 5mm tubes (positive / negative terminals)
• Charging port: dia. 2mm tube balance

Ratings

• Nominal Voltage: 7.6V
• Nominal Capacity: 5900–6100mAh
• Nominal Impedance: 0.9–1.3 mOhm per cell
• Charging method: CC/CV mode (high quality LiPo chargers only)
• Charge cutoff voltage: 8.40V ±0.05V
• Charging current: 6.0 amps (typical)
• 2C charging possible, with special attention for accurate cut off
• Discharge cutoff voltage: 6.2V ±0.05V
• Discharge continuous: 65C
• Discharge pulse (max): 130C (less than 6 sec for each pulse)
• Discharge Temp range: -20~+60 deg-C
• Charging Temp range: 0~+45 deg-C
• Storage Temperature: -20~+45 deg-C
• Storage Humidity: 65 ±20% RH
