Ansmann Easy Charger NiMH/LiPo 4A HC-C606104

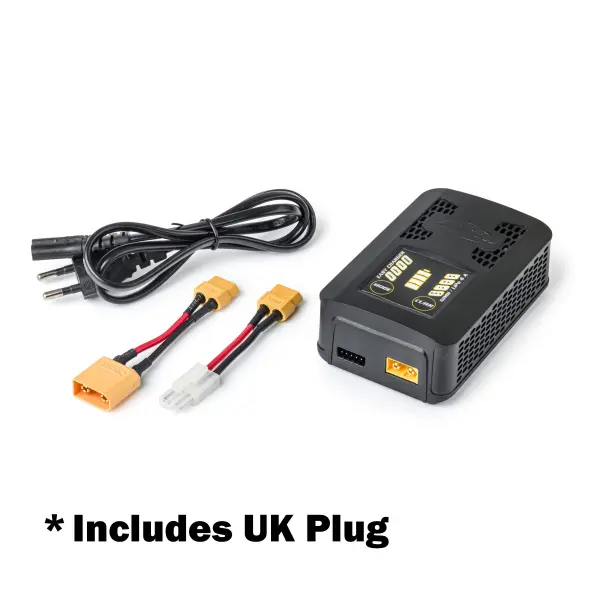

The Ansmann Easy Charger NiMH/LiPo 4A, part number HC-C606104, is a fast charger for selected NiMH and LiPo battery packs. It supports NiMH batteries from 4 to 8 cells and LiPo batteries from 2S to 4S, making it suitable for charging packs across these specified cell ranges. The charger offers selectable charging currents of 0.5A, 1A, 2A and 4A, allowing the charging rate to be matched to the battery and application. Delta Peak shutdown is provided for NiMH charging, helping the charger end the cycle at the appropriate point. Charging connections are supported through XT60 to Tamiya and XT60 to XT90 connector options.

With a 100–240V AC input, the Ansmann Easy Charger can be used with standard mains supplies within this voltage range. Its maximum output power is 50W, while the selectable current settings provide flexibility for different charging requirements. The clearly defined battery support and connector options make the HC-C606104 a practical choice where NiMH or LiPo charging is required from a mains-powered unit.

Specifications

• Input voltage: AC 100–240V
• Maximum charging current: 4A
• Selectable charging currents: 0.5A, 1A, 2A and 4A
• Battery support: NiMH 4–8 cells
• Battery support: LiPo 2S–4S
• Maximum output power: 50W
• Charging connectors: XT60 to Tamiya and XT60 to XT90
• NiMH charging protection: Delta Peak shutdown
