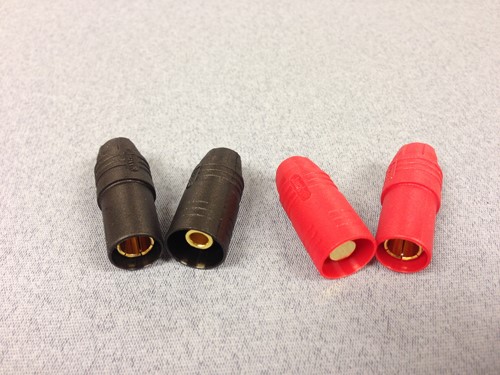

AS150 7mm Anti Spark Connector - 2 Pairs
Brand: Fusion
Part No: O-FS-AS150/02
In Stock: Usually ships same day
The Fusion AS150 Anti-Spark connector (part number O-FS-AS150/02) is a 7mm gold plated, shielded connector rated to 150A. This pack includes 2 sets of AS150 connectors, with 2 anti-spark connectors.
Key Details
- 7mm gold plated, shielded connector
- Rated to 150A

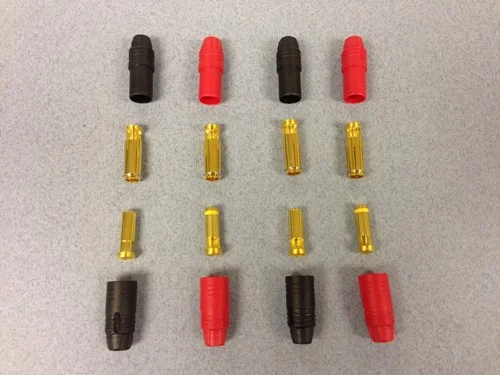

- Pack includes 2 sets of AS150 connectors
- Includes 2 anti-spark connectors
How The Anti-Spark Design Works
The anti-spark connector provides a two-stage connection to the speed controller. Initially, the tip of the anti-spark plug connects to the battery and slowly charges the ESC capacitors via an internal resistor. By the time the main body of the connector makes contact, the capacitors are pre-charged to battery voltage, avoiding any sparks.
Connection Guidance
- The anti-spark connector is normally fitted to the positive wire.
- Connect the negative wire first, then the positive wire with the anti-spark connector.
Secured by Stripe
The AS150 Anti-Spark connector is a 7mm gold plated shielded connector rated to 150A.
This pack includes 2 sets of AS150 connectors, with 2 anti-spark connectors. The anti-spark connector is normally fitted to the positive wire.
The negative wire is connected first, then the positive wire with the anti-spark connector.
The anti-spark connector allows a two stage connection to the speed controller. Initially the tip of the anti spark plug is connected to the battery, allowing it to slowly charge the capacitors in the speed controller via the resistor inside the connector. By the time the main body of the connector makes contact, the capacitors will be pre-charged to the battery voltage, avoiding any sparks.
Key Info:
- Brand: Fusion
- Part No: O-FS-AS150/02
- Barcode: 5055320209584
- Connector: AS150
