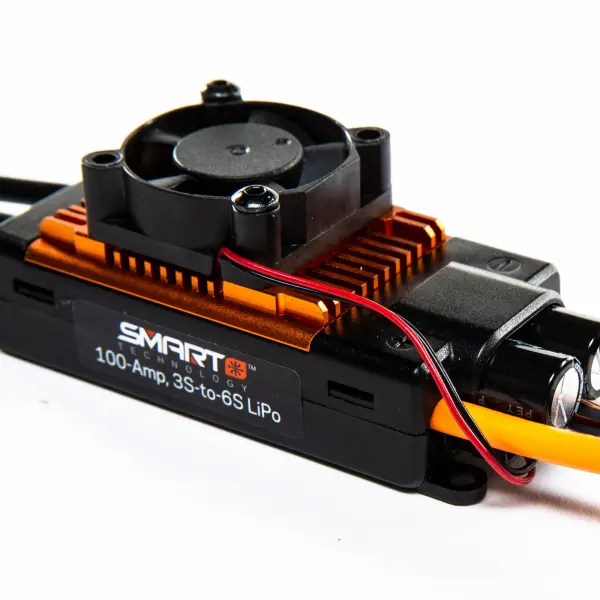

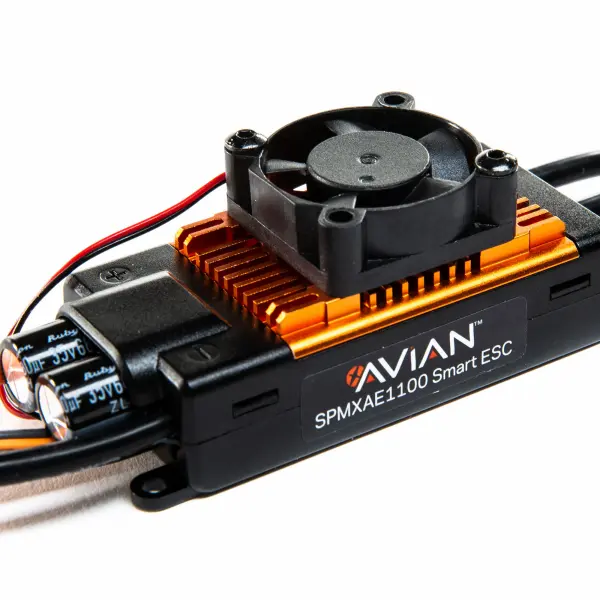

Spektrum Avian 100A Brushless Smart ESC SPMXAE1100D

Spektrum Avian 100Amp Brushless Smart ESC - 3-6S Ver. D, part number SPMXAE1100D, is a brushless electronic speed controller for aircraft applications. It is rated for 100A maximum continuous current, with a maximum burst current of 120A, making it suitable for setups within its stated 3-6S range. The ESC includes a BEC and supports specified BEC voltages of 6V, 7.4V and 8.4V. Forward, reverse and brake functions are also provided, giving the model setup a useful range of control options.

Connection details include 3.5mm bullet connectors and 12 AWG wire. The stated input voltage range is 9.00-25.20, while the brushless motor design is intended for compatible aircraft power systems. This version is supplied as one Avian 100Amp Brushless Smart ESC, offering a compact control solution for radio-controlled aeroplanes where the listed current, voltage and connection specifications match the installation requirements.

Specifications

• Maximum continuous current: 100A
• Maximum burst current: 120A
• Application: Aircraft
• Motor type: Brushless
• BEC: Yes
• BEC voltage: 6V, 7.4V or 8.4V
• Connector type: 3.5mm bullet
• Wire gauge: 12 AWG
