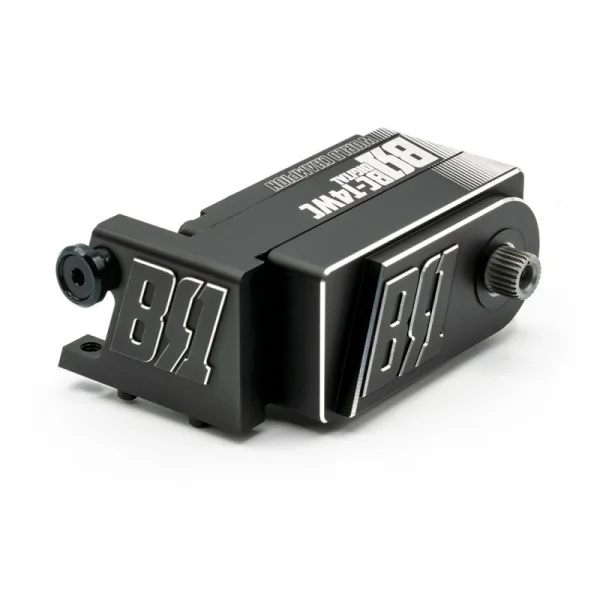

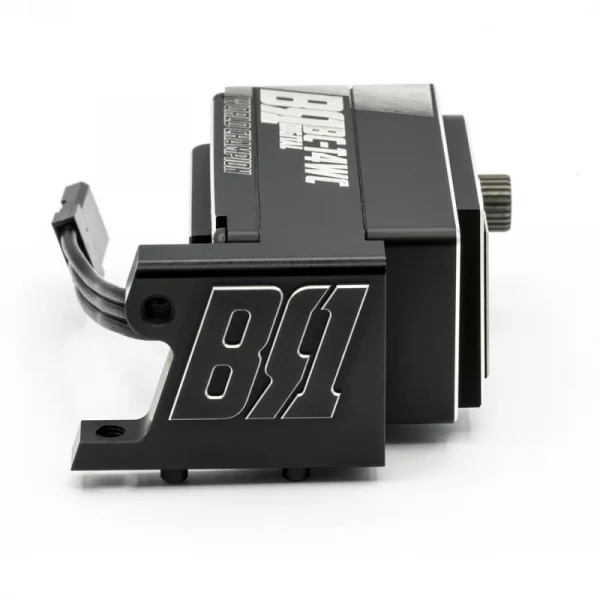

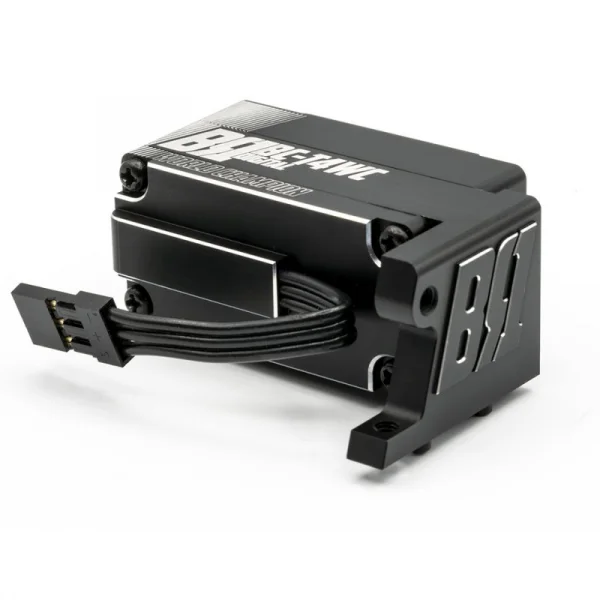

BRUNO Servo Xray T4 Only

The Bruno RC BRUNO Servo Xray T4 Only (BC-T4WC) is a low-profile, high-speed touring car servo developed with Bruno Coelho and other professional drivers to deliver maximum performance. A fully machined aluminium case with integrated, tweak-free chassis locating mount helps achieve precise alignment and consistent handling, while the short 5 cm lead keeps wiring super-neat. A built-in LiPo battery stop further tidies the layout in high-end XRAY T4 builds.

Performance comes from a brushless drive and steel gear train for fast response and durability, producing 0.070 sec/60° speed and 11.0 kg torque at 6 V. Four silicone seals provide water resistance, and the 25T Futaba-style output spline offers broad horn/saver options. Weighing just 56 g, it suits modern low-CG touring car setups.

Key Specifications

• Weight: 56 g
• Speed @ 6 V/60°: 0.070 sec
• Torque @ 6 V: 11.0 kg
• Output Shaft: 25T spline (Futaba)
• Lead Length: 5 cm
• Water resistant with 4 silicone seals

Features

• Low Profile
• Brushless Steel Gear
• High Speed
• Aluminium Case
• Shorter Wire (5 cm)
• Fast Response
• Incredible Torque
• Increased Speed
• Perfect Efficiency
• Water Resistant With 4 Silicon Seals Implanted
• Strong and Precise
• Sanwa SSR mode acceptable
• Output Shaft: 25T Spline (Futaba)

Suggested Compatibility

• XRAY T4’19
• XRAY T4’20
• XRAY T4 (late 2017 version)
