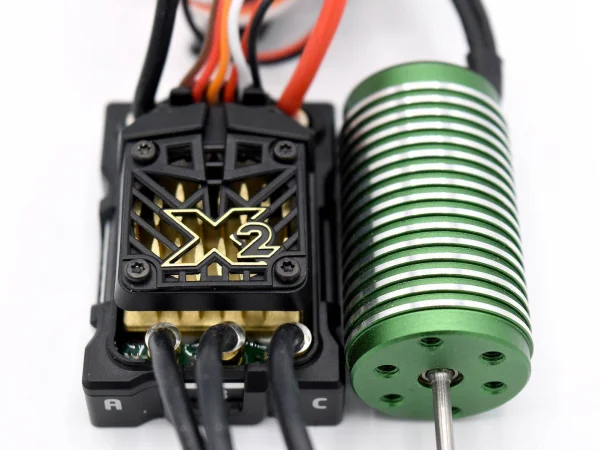

Castle Creations Mamba Micro X2 - 16.8V - Wp Sensored ESC With 1406-2280Kv Comb

Castle Creations Mamba Micro X2 - 16.8V - Wp Sensored ESC With 1406-2280Kv Comb

Brand: Castle Creations

Part No: P-CC010-0171-02

£208.99 RRP £219.99
Pre-Order
Request Price Match Ask a Question Write a Review

The Castle Creations Mamba Micro X2 – 16.8V Waterproof Sensored ESC with 1406-2280Kv Motor (P-CC010-0171-02) is a compact, high-performance combo for small-scale builds that demand premium control and efficiency. Building on the proven Mamba Micro X, this refreshed ESC adds 4S capability, on-board data logging and Castle’s CRYO-DRIVE technology for cooler, more efficient running at partial throttle.

Ideal for precision throttle feel and low-speed finesse, it offers sensored motor support and a robust, adjustable BEC in a waterproof design. Not intended for operation while submerged in liquid.

Key Features

  • Input voltage range: 2S–4S LiPo (up to 16.8V)
  • Adjustable BEC output: 5.5V or 7.5V (2A peak), default 5.5V
  • Waterproof design for confident running in wet conditions
  • Sensored motor capable (sensor harness included in this combo)
  • CRYO-DRIVE technology improves efficiency and helps the ESC run cooler at partial throttle
  • On-board data logging to review performance
  • Castle Link support for advanced setup via Windows software (USB adapter coupon included) or Castle Link App with B-LINK Bluetooth Adapter (sold separately)
  • Convenient transmitter programming for six common settings
  • Telemetry ready (compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX, T7PXR transmitters)
  • Auxiliary wire for on-the-fly adjustments (e.g. Max Power, Max Brake)
  • Audible alerts for calibration and error conditions
  • Designed and manufactured in Olathe, Kansas; backed by a 1-year warranty

Specifications

  • ESC: Mamba Micro X2 (waterproof, sensored-capable)
  • Motor: Castle 1406-2280Kv sensored brushless
  • Connector type: Open Ends

Suggested Compatibility

  • 1:18 scale 2WD or 4WD vehicles up to 2.25 lbs
  • Some 1:10 scale crawlers for low-speed operation (no rock racing or hill climbing)

What’s Included

  • (1) Mamba Micro X2 ESC with 4 mm connectors
  • (1) 1406-2280Kv sensored motor
  • (1) Sensor harness
  • (1) Coupon for free Castle Link USB adapter
  • (1) Driver’s Ed and Quick Start Guide
  • (1) Castle decals
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Overview

The Mamba Micro X2 is a refresh of Castle's popular 1:18 scale Mamba Micro X. This new ESC increases the maximum input voltage to 4s. Castle also added DATA LOGGING and CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it boasts an 2 amp peak BEC, waterproof* and has SENSORED MOTOR SUPPORT. This is the perfect upgrade for 1:18th scale 2WD or 4WD vehicles up to 2.25 lbs. The Mamba Micro X also works well in some 1:10th scale crawlers for low speed operation (no rock racing/hill climbing). You can now purchase the Mamba Micro X2 Crawler Edition ESC paired with Castle's Slate Crawler motors.

Features
  • Input Voltage range 2S-4S
  • Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
  • Waterproof design.
  • Sensored Motor capable (with optional sensor harness)
  • Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
  • Convenient transmitter programming for six common adjustable settings.
  • Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
  • Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
  • Audible Alerts that will notify you of possible issues with calibrations and error conditions.
  • Designed and manufactured in Olathe, Kansas and is backed by a 1-year warranty.

*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

Castle Creations Mamba Micro X2 - 16.8V - Wp Sensored Esc With 1406-2280Kv Comb Specfications:

  • Connector Type: Open Ends

In The Box
  • (1) Mamba Micro X2 ESC with 4 mm Connectors
  • (1) 1406-2280Kv Sensored Motor
  • (1) Sensor Harness
  • (1) Coupon for free Castle Link USB adapter
  • (1) Driver's Ed and Quick Start Guide
  • (1) Castle Decals


Key Info:
  • Brand: Castle Creations
  • Part No: P-CC010-0171-02
