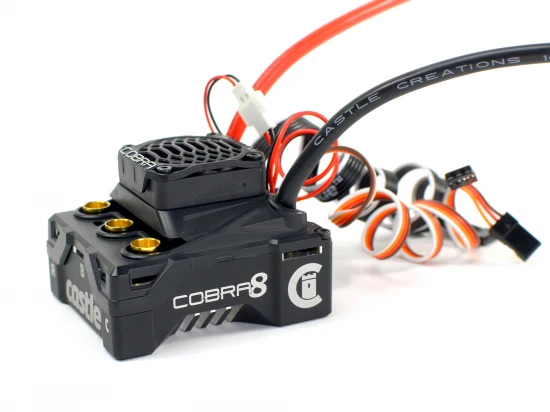

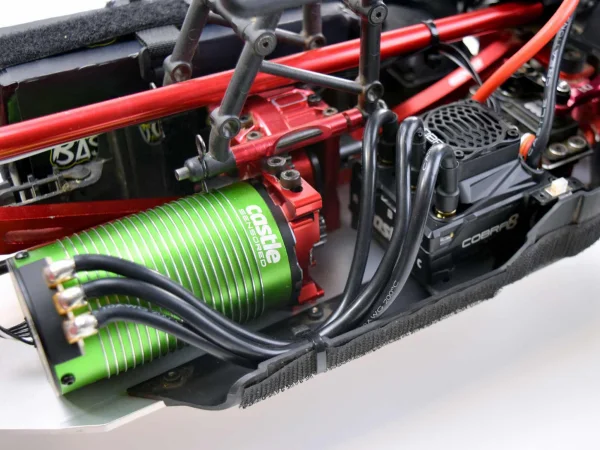

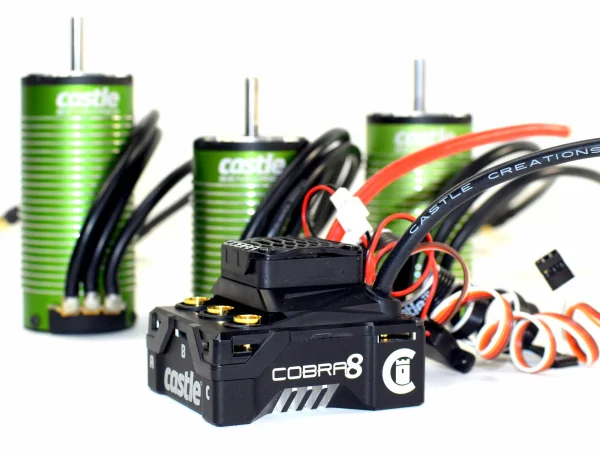

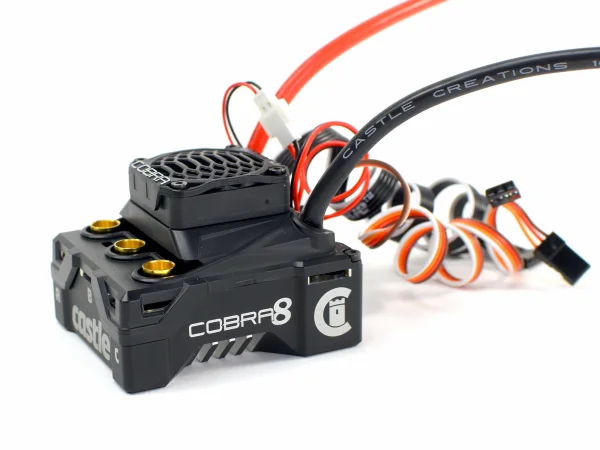

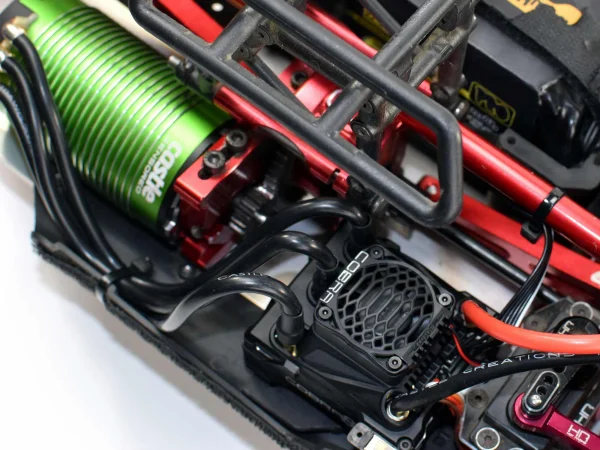

Castle Creations Cobra 8 - 25.2V ESC With 1512-2650Kv V2 Sensored Motor Combo
Brand: Castle Creations
Part No: P-CC010-0172-05
£426.79
RRP £439.99
Out Of Stock
Request Stock NotificationThe Castle Creations Cobra 8 ESC with 1512-2650Kv V2 sensored brushless motor brings precision control and robust thermal performance to demanding RC applications. A 32-bit dual-core processor powers advanced tuning, extended data logging and smooth throttle response, while a rugged CNC-machined aluminium case, premium heatsink and a thermally controlled 30mm fan help manage heat in all-weather use. Part number P-CC010-0172-05.
What’s In The Box
- Cobra 8 ESC
- 1512-2650Kv V2 sensored brushless motor
- Castle Link V4 USB Adapter (USB-C, Windows 10 or higher)
- 300mm Direct Connect Sensor Wire
- Cobra decals
- ESC Quick Start Guide
ESC Features
- 32-bit processing for smoother motor control and faster response
- Enhanced data logging with higher sample frequency, 8× longer log time, motor timing and acceleration data points, looping logs, and session downloads
- Advanced tuning: improved braking adjustability, separate brake/reverse curves, and a highly adjustable internal BEC (5.0–8.0 V in 0.1 V steps)
- Access tuning options and firmware updates via Castle Link V4 (USB-C)
- Input voltage range: 6.0–25.2 V (2S–6S LiPo)
- Operating modes: SmartSense, Sensored Only, and Brushed
- Powerful integrated BEC: 8A peak, adjustable 5.0–8.0 V
- CRYO-DRIVE technology for improved thermal performance at partial throttle
- CNC aluminium case, potted in waterproof epoxy for protection and efficient heat transfer
- Premium forged heatsink with elliptical fins and a thermally controlled 30mm cooling fan
- All-weather waterproof design
- Aux wire functionality for on-the-fly adjustments from your transmitter
- Audible alerts for calibration and common error conditions (e.g. over-temperature, low-voltage cutoff)
- Convenient transmitter programming for six common settings including cutoff voltage and drag brake
- Mounting holes in the base for secure installation
Motor Features
- 4-pole, 12-slot sensored design for high efficiency and reduced heat
- Proprietary stator winding for low internal resistance and cooler running
- Dual sensor ports to aid optimal installation
- Oversized NMB bearings with vibration damping for extended life
- High-strength, high-temperature neodymium magnets with Kevlar wrap for rotor integrity at high RPM
Technology Highlights
- SmartSense with QUIETSENSE: smooth sensored starts, then seamless transition to ultra-efficient sensorless running
- On-the-fly adjustment: enable via Castle Link, then tune torque, max throttle, max brake and drag brake from your transmitter
- Data logging: capture motor RPM, battery current/voltage, ESC/motor temperatures, throttle input and more for post-run analysis
- Castle Link Programming Suite: free access to parameters and firmware updates (requires Windows 10 or higher)
- Waterproof construction: CNC aluminium case potted in epoxy for protection and efficient heat dissipation
Secure Payments
Secured by Stripe
Overview
The Cobra 8 boasts a state-of-the-art 32-bit dual-core processor, ushering in a new era of precision and performance. Its enhanced data logging capabilities offer extended recording times, faster sampling rates, and a wealth of data points, enabling users to delve deeper into their vehicle's performance than ever before.
Motor Features
Castle's newest software technology, CRYO-DRIVE minimizes the amount of time the ESC's electrical components spend generating heat by optimally controlling which components are being used while driving the motor. This is happening thousands of times per second, which greatly reduces the rate at which the ESC heats up. This results in significantly improved thermal performance during partial throttle operation where the majority of driving occurs. Your setup will be able to handle higher gear ratios, in heavier vehicles, with longer runs.
When paired with a Castle 4-POLE 12-SLOT SENSORED MOTOR SmartSense software, enabled by default in the Castle Link Programming Suite, will use the motor's sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle's ULTRA-EFFICIENT sensorless mode with electric timing. Smooth sensored startups and high-efficiency sensorless running makes the COBRA 8 system produce more power and less heat. QUIETSENSE is an innovative advancement in the design of sensored motors to deliver the highest precision and most efficient startup.
The COBRA 8 allows "on-the-fly" adjustments to be made through the AUX wire once enabled in Castle Link. Once you have selected an AUX wire function, that setting can then be tuned from your transmitter while driving. Torque control, max throttle, max brake and drag brake adjustments are a sampling of the available modes. This real-time tuning allows you to quickly and easily fine-tune your system.
The COBRA 8 contains NEW DATA LOGGING FEATURES:
For over 25 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters download the BRAND NEW simple to install software from the Castle Creations website and you are ready to personalize your controller's settings. Requires Windows 10 or higher.
The COBRA 8 is housed in a rugged CNC-machined aluminium case and then potted in waterproof epoxy. This not only protects the electronics but ensures any heat generated in the controller can easily be dissipated through the case.
COBRA 8 features Audible Alerts that will notify you, via audible chimes, of possible issues with calibrations and error conditions to help diagnose problems.
Key Info:
The Cobra 8 boasts a state-of-the-art 32-bit dual-core processor, ushering in a new era of precision and performance. Its enhanced data logging capabilities offer extended recording times, faster sampling rates, and a wealth of data points, enabling users to delve deeper into their vehicle's performance than ever before.
Crafted with a CNC aluminum bottom case, the Cobra 8 is engineered to endure the most rigorous conditions, ensuring reliability in every race or off-road adventure.
One of its defining features is the acclaimed CRYO-DRIVE technology, engineered to reduce operational temperatures, significantly prolonging the ESC's lifespan. Moreover, equipped with an impressive 8-amp BEC, the Cobra 8 can effortlessly power the most demanding servos, making it an indispensable ally in your high-performance setup.
In The Box
- Cobra 8 ESC
- 1512-2650kv V2 sensored brushless motor
- Castle Link V4 USB Adapter
- 300mm Direct Connect Sensor Wire
- Cobra decals
- ESC Quick Start Guide
- 32-Bit Processing power for smoother motor control and improved response time.
- Enhanced Data Logging includes:
- Double the maximum sample frequency of older generations.
- 8x increased logging time of older generations.
- Data point for ESC electrical motor timing.
- Data point for acceleration via onboard accelerometer.
- Looping feature prevents interruptions in data log recording.
- Ability to download specific sessions.
- Additional tuning features include:
- Improved braking adjustability
- Separate brake and reverse curves
- Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
- Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
- Mounting holes located in bottom of aluminum case for installation into vehicle.
- Input Voltage Range 6.0v - 25.2v (2s - 6s LiPo)
- SmartSense, Sensored Only and Brushed Motor Operation Modes
- Powerful Integrated 8A Peak Adjustable BEC (5.0V - 8.0V)
- CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
- ESC is housed in a rugged CNC aluminium case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
- Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
- Oversized factory equipped thermally controlled 30mm cooling fan
- Waterproof design for all weather conditions
- Data logging capability to capture and record performance data from your vehicle
- Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
- Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
- Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
- Includes Castle Link V4 USB adapter for Windows.
- 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
- Proprietary stator winding produces low internal resistance for a cooler running motor
- Dual sensor ports to ensure optimal installation in your large-scale vehicle
- Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
- High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
Cryo Drive
Castle's newest software technology, CRYO-DRIVE minimizes the amount of time the ESC's electrical components spend generating heat by optimally controlling which components are being used while driving the motor. This is happening thousands of times per second, which greatly reduces the rate at which the ESC heats up. This results in significantly improved thermal performance during partial throttle operation where the majority of driving occurs. Your setup will be able to handle higher gear ratios, in heavier vehicles, with longer runs.
SmartSense
When paired with a Castle 4-POLE 12-SLOT SENSORED MOTOR SmartSense software, enabled by default in the Castle Link Programming Suite, will use the motor's sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle's ULTRA-EFFICIENT sensorless mode with electric timing. Smooth sensored startups and high-efficiency sensorless running makes the COBRA 8 system produce more power and less heat. QUIETSENSE is an innovative advancement in the design of sensored motors to deliver the highest precision and most efficient startup.
On-The-Fly Adjustment
The COBRA 8 allows "on-the-fly" adjustments to be made through the AUX wire once enabled in Castle Link. Once you have selected an AUX wire function, that setting can then be tuned from your transmitter while driving. Torque control, max throttle, max brake and drag brake adjustments are a sampling of the available modes. This real-time tuning allows you to quickly and easily fine-tune your system.

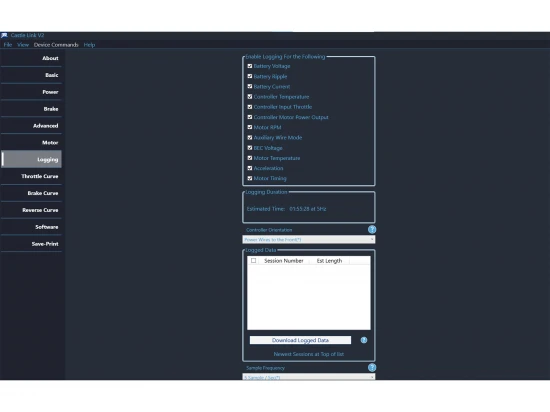

Data Logging
The COBRA 8 contains NEW DATA LOGGING FEATURES:
- Double the maximum sample frequency of older generations.
- 8x increased logging time of older generations.
- Data point for ESC electrical motor timing.
- Data point for acceleration via onboard accelerometer.
- Looping feature prevents interruptions in data log recording.

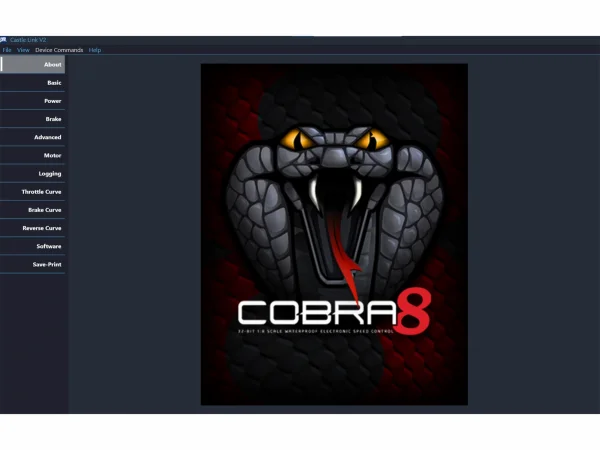

Castle Link
For over 25 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters download the BRAND NEW simple to install software from the Castle Creations website and you are ready to personalize your controller's settings. Requires Windows 10 or higher.
Waterproof
The COBRA 8 is housed in a rugged CNC-machined aluminium case and then potted in waterproof epoxy. This not only protects the electronics but ensures any heat generated in the controller can easily be dissipated through the case.
Alerts
COBRA 8 features Audible Alerts that will notify you, via audible chimes, of possible issues with calibrations and error conditions to help diagnose problems.
Key Info:
- Brand: Castle Creations
- Part No: P-CC010-0172-05
- Barcode: 0819326013560
