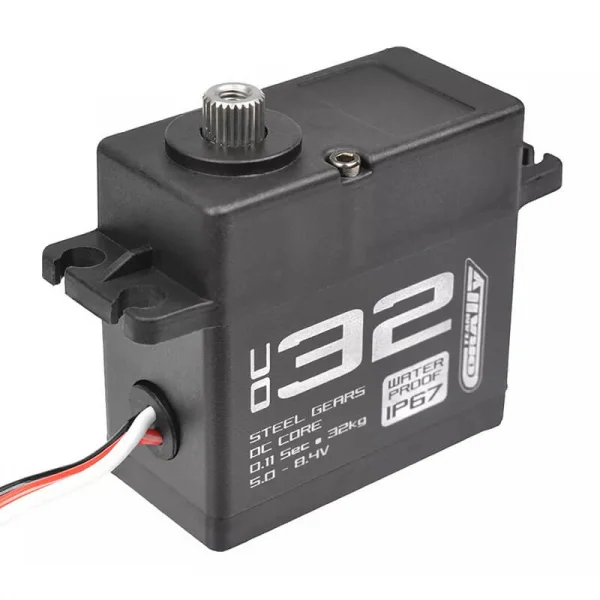

Corally Digital Servo Oc 32 High Voltage Metal Gear 32Kg

The Corally Digital Servo OC 32 High Voltage Metal Gear 32Kg (C-52016) is a robust standard-size HV digital servo built for demanding RC use. Delivering up to 32 kg/cm of torque at 8.4V with rapid 0.11 s/60° transit, it combines a metal gear train with an aluminium and composite case for strength and durability. Water- and dust-resistant construction, a DC core motor, and VR potentiometer direct drive contribute to precise, reliable performance. A 25T output spline and JR universal connector with coloured lead provide straightforward setup.

Key Specifications

• Operating Voltage: 6.0–8.4V (Digital HV)
• Torque: 24.2 kg/cm @ 6.0V; 27.8 kg/cm @ 7.4V; 32 kg/cm @ 8.4V
• Speed (60°): 0.14 s @ 6.0V; 0.13 s @ 7.4V; 0.11 s @ 8.4V
• Servo Type: Standard-size digital
• Motor: DC core motor
• Gears: Metal gears
• Case: Aluminium and composite
• Output Spline: 25T
• Connector: JR universal, coloured lead
• Rated Current: 800 mA
• Positioning: VR potentiometer, direct drive
• Dimensions (L×W×H): 40 × 20.2 × 37.8 mm
• Weight: 55 g
• Protection: Water- and dust-resistant

The 25T output spline offers suggested compatibility with many 25T servo horns across RC platforms.
