Corally Dss Pro 80W Digital Soldering Station EU Plug

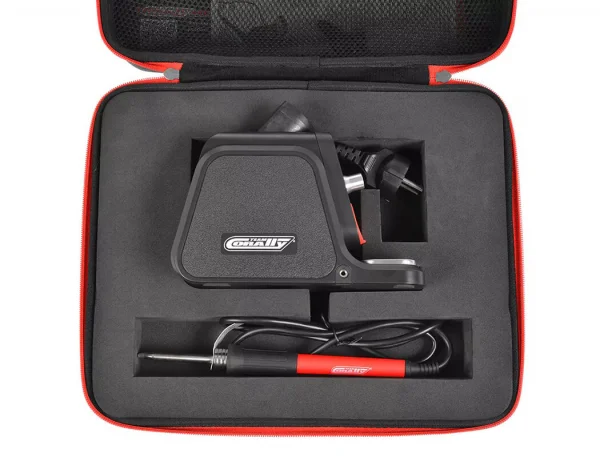

The Corally DSS Pro 80W Digital Soldering Station (EU plug) delivers stable, accurate heat for electronics and hobby work. An integrated PTC active ceramic heater and digital PID control provide fast warm-up and consistent temperatures from 100–500°C, shown clearly on the LED display. Designed with an anti-static housing and convenient features including auto-sleep, auto-off and temperature lock, it helps protect delicate components and maintain repeatable results. The station is supplied with a 4.0mm bevel (C-type) tip, brass wool and foam tip cleaners, a soldering tin holder (incl. solder), left and right flexible third-hand clamps, and a handy carrying case. Corally part number C-48520-EU.

Features

• 80 Watt Power
• Digital Display
• Temperature Range 100°C - 500°C
• Integrated PTC Active Ceramic Heater
• 4.0mm Bevel / C-Type Soldering Tip
• Anti-Static Design
• Auto-Sleep Function
• Auto-Off Safety Function
• Energy Saving Function
• Temperature Lock Function
• Celsius / Fahrenheit Temperature Indication
• Soldering Tin Holder incl. Soldering Tin
• Brass Wool and Foam Soldering Tip Cleaner
• Left and Right Third Hand with Clamp
• Handy Carrying Case

Specifications

• Display Type: LED
• Heating Element Type: Integrated PTC active ceramic heater
• Input Voltage Range: AC 230V
• Integrated Tip Cleaner: Brass wool
• Integrated Tools: Two mountable flexible arms with clamp
• Output Power (W): 80
• Soldering Tip Type (included): 4.0mm Bevel / C-Type
• Temperature Compensation: ±50°C (±90°F)
• Temperature Correction: Digital PID
• Temperature Indication: Celsius
• Temperature Range: 100–500°C (212–932°F)
• Temperature Stability: ±2°C > 200°C
• Tip Ground Impedance: <0.1 Ohm
• Tip Ground Voltage: <2 mV
• Power Cable Length: 830 mm
• Soldering Handle Length: 148 mm
• Soldering Iron Cable Length: 970 mm
• Soldering Tip Length: 59 mm
• Station Height: 145 mm
• Station Length: 185 mm
• Weight: 516 g
• Soldering Tool - Type: Soldering Station

Soldering Tool Safety

• Anti-static Design: Yes
• Auto-off Safety Function: Yes
• Auto-sleep Function: Yes
• Energy Saving Function: Yes
• Temperature calibration Function: Yes
• Temperature locking Function: Yes
