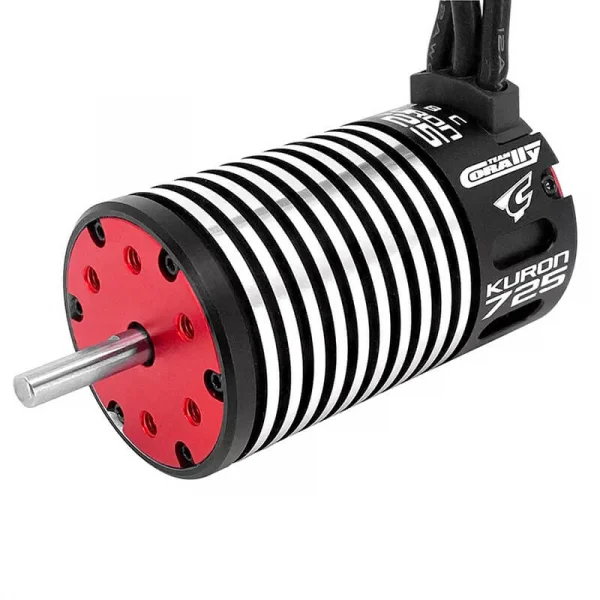

Corally Electric Motor Kuron 725 4Pole 2150 Kv Brushless

The Corally Electric Motor Kuron 725 4-Pole 2150 Kv Brushless (C-54054) is a sensorless, sport-class motor aimed at 1/8-scale applications. Delivering a 2150Kv rating and designed around a robust 4-pole rotor, it supports 2S–4S Li-Po systems and uses fixed timing for straightforward setup.

With a 40x68 mm can, 5.0 mm shaft and 4.0 mm bullet connectors, the Kuron 725 is sized for popular 1/8 platforms and related categories. High-quality bearings and 12 AWG leads round out a practical specification for dependable RC use.

Specifications

• Motor type: Brushless, sensorless
• Class: Sport motor
• KV (rpm/V): 2150
• Input voltage range: 2S–4S Li-Po
• Timing: Fixed
• Rotor: 4-pole
• Can diameter: 40.0 mm
• Can length: 68.0 mm
• Shaft diameter: 5.0 mm
• Shaft length: 18.5 mm
• Mounting holes: M4 @ 25.4 mm
• Motor wires: 12 AWG
• Connector: 4.0 mm bullet
• Front bearing: 5×16×5 mm
• Rear bearing: 5×13×4 mm (695ZZ)

Suggested Compatibility

• 1/8 buggy
• 1/8 short course truck (SCT)
• 1/8 GT / rally game
• 1/10 SCT 2WD
