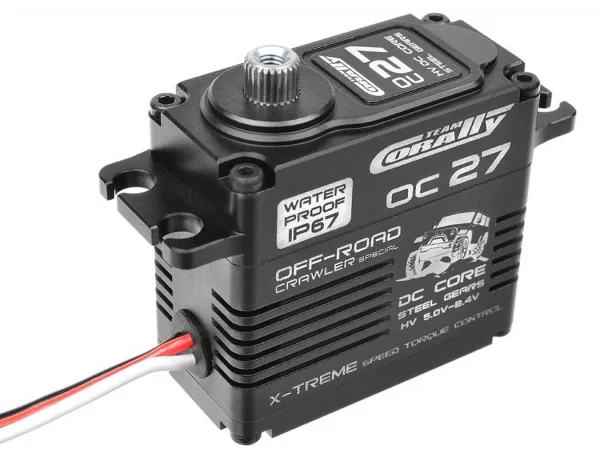

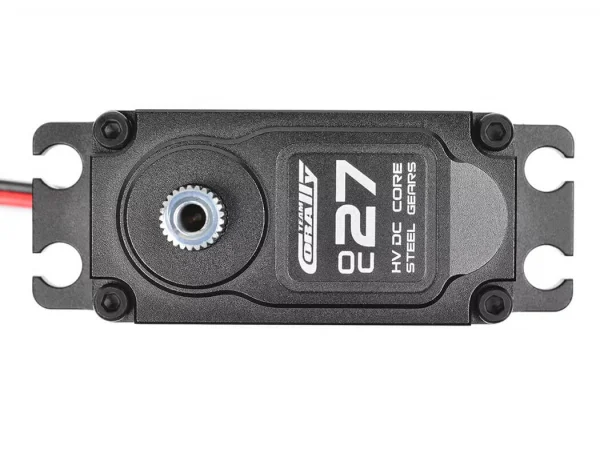

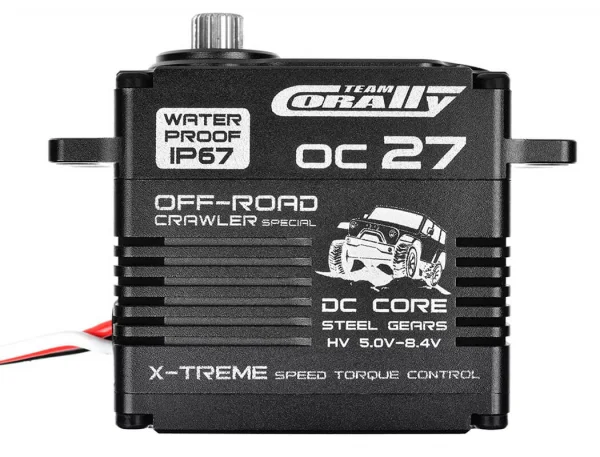

Corally OC27 HV Digital Servo IP67 Steel Gear (C-52015)
Brand: Corally
Part No: C-52015
In Stock: Usually ships same day
Finance options available at checkout.
Description
The Corally OC27 HV Digital Servo (C-52015) blends a CNC-machined aluminium case, steel gearing and IP67 waterproof protection for dependable control across 5.0–8.4V. Developed with bashers in mind, it delivers precise digital positioning, strong torque and quick transit speeds from a robust core DC motor.
Key Features
- Full CNC machined alloy case
- Digital LHV 5.0–8.4V
- Metal gears
- Ball raced
- Core DC motor
- High speed and torque
- IP67 waterproof
Specifications
- Speed (60°): 0.15s @ 6.0V; 0.13s @ 7.4V; 0.11s @ 8.4V
- Torque: 17.7 kg/cm @ 6.0V; 23.6 kg/cm @ 7.4V; 27.3 kg/cm @ 8.4V
- Servo type: Standard size; Spline: 25T
- Dimensions (L×W×H): 40 × 20 × 37 mm
- Technology: Digital HV; Motor: DC core
- Protection: IP67; Positioning: VR potentiometer – direct drive

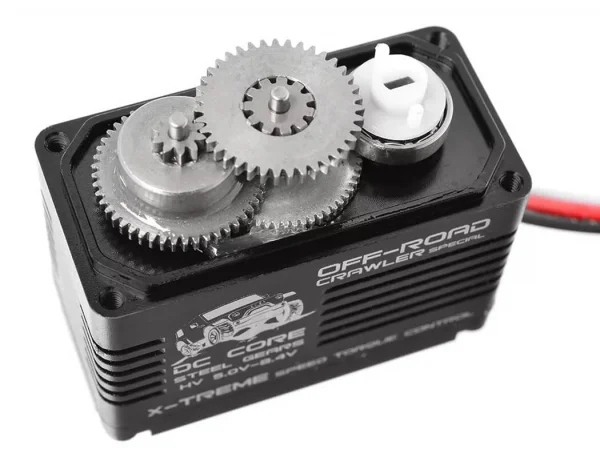

- Gears: Steel; Case: Aluminium; Connector: JR universal (coloured lead)
Suggested Compatibility
- Standard-size RC vehicles using 25T servo horns
- 6.0–8.4V HV servo control systems
Secured by Stripe
Corally Oc27 HV Digital Servo 5-8.4V Ip67 Steel Gear Alloy C Manuals & Guides
How-To Guides & Articles
Specifications
Are you looking for some powerful control!
We have developed these servos with the basher in mind, ultimate digital power, precision and reliability.
Features- Full CNC machined alloy case
- Digital LHV 5.0 - 8.4V
- Metal gears
- Ball Raced
- Core DC motor
- High speed and torque
- IP67 Waterproof
Speed 60°/Sec @ 6.0V: 0,15
Speed 60°/Sec @ 7.4V: 0,13
Speed 60°/Sec @ 8.4V: 0,11
Torque kg/cm @ 6.0V: 17,7
Torque kg/cm @ 7.4V: 23,6
Torque kg/cm @ 8.4V: 27,3
Servo Type: Standard Servo
Spline Type: 25T Spline
Length (mm): 40
Width (mm): 20
Height (mm): 37
Technology: Digital HV
Operating Voltage (V): 6.0V - 8.4V
Servo Motor: DC Core Motor
Servo Protection: Waterproof IP67
Servo Positioning: VR Potentiometer - Direct Drive
Servo Gears: Steel Gears
Servo Case: Aluminium Case

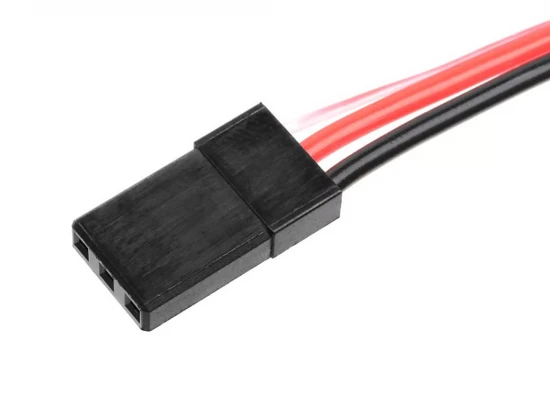

Connector: JR Universal + Coloured Lead
Key Info:
- Brand: Corally
- Part No: C-52015
- Barcode: 8718057194062
- Fitment: Standard Part
