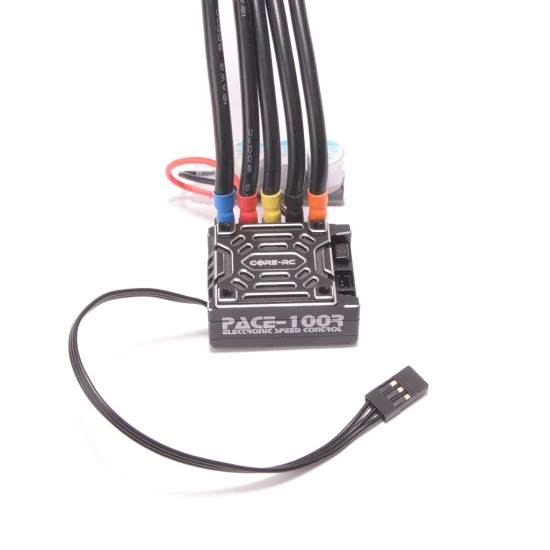

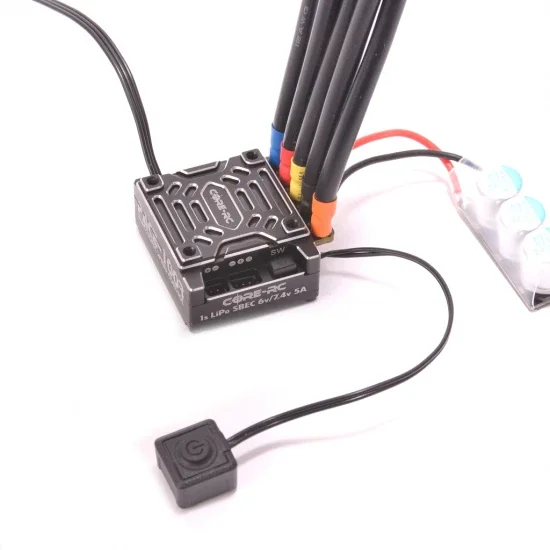

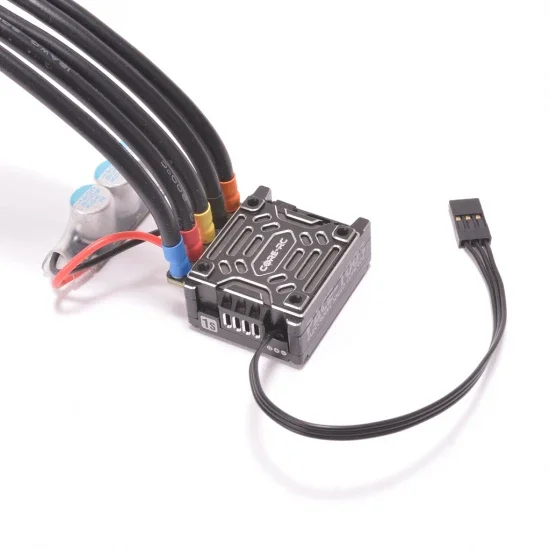

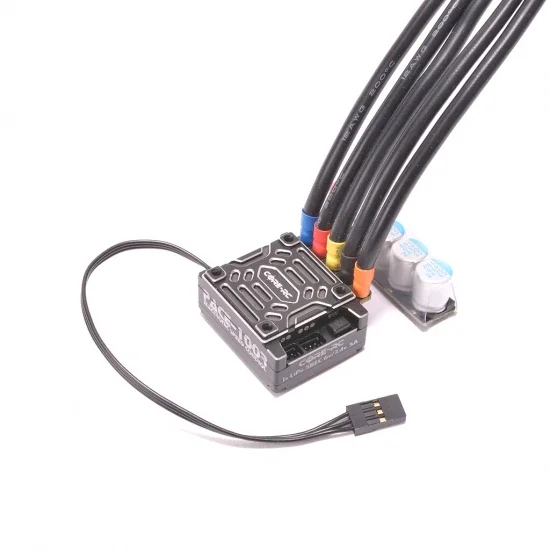

Core RC Pace 100R Brushless ESC - 1S
Brand: Core RC
Part No: SCH-CR885
In Stock: Usually ships same day
The Core RC Pace 100R 1S Brushless ESC (SCH-CR885) is a competition-grade, BRCA approved speed controller designed for single-cell racing. With a robust aluminium case and heat sink, a 32-bit microprocessor and extensive tuning parameters, it delivers precise throttle control and dependable performance across a broad range of 1S classes.
Fully programmable via the CORE RC Bluetooth Set Up Module (CR886) and mobile app, the Pace 100R supports real-time parameter changes, firmware updates and data logging for ESC temperature, motor RPM, voltage and advance timing.
Key Features
- BRCA approved competition ESC for 1S racing
- Full aluminium case and heat sink with efficient heat dissipation
- 32-bit microprocessor for accurate, responsive motor output
- Enhanced throttle response, acceleration, linearity and driveability
- Programmable instant reverse option (ideal for F1 Stock class)
- Mobile app programming via optional Bluetooth module (CR886)
- Real-time programming and firmware upgrade support
- Data logging: maximum ESC temperature, motor RPM, voltage, advance timing and more
- Protection features: low-voltage cutoff, overheat and throttle signal loss
Specifications
- Type: Sensored brushless
- Continuous Current: 100A
- Burst Current: 360A
- Input: 1S LiPo
- BEC Output: 6.0–7.4V / 5A
- Programming: Mobile phone app (via Bluetooth module)
- Firmware Upgrade: Supported
- Waterproof: No
- Size (L×W×H): 37.0 × 38.2 × 17 mm
- Weight: 83 g
Programmable Items
- Throttle response and coast
- Neutral range and minimum throttle
- Forward force
- Brake response; minimum and maximum brake force
- Forward drag brake force and response
- Reverse drag brake force and response
- PWM frequency
- Boost timing: trigger, RPM threshold, initial angle, increase/decrease rate
- Turbo timing: increase/decrease rate, delay, reload
- Motor rotation and motor poles
- Running mode
- Drive PWM frequency
- Cutoff voltage and thermal cutoff
- BEC output
- A/C swap
Suggested Compatibility
- 1S racing classes including LMP12, GT12 and F1 Stock
- Setups requiring Zero Timing (Blinky), Stock, Modified or drifting-style profiles
What’s Included
- Pace 100R 1S speed control (SCH-CR885)
- Instructions
- External switch
Note: Sensor lead and fan are not included.
Secured by Stripe
Introducing the CORE RC PACE 100R 1S competition speed control.
With a huge range of features the PACE 100R is suitable for a wide range of 1S racing classes including LMP12, GT12 and F1 Stock cars.
Its programmable instant reverse option is especially important for the F1 Stock car class!
Fully programmable with the CR886 CORE RC Blootooth Set Up Module and app based technology.
--------------- BRCA Approved ---------------
- Full aluminium case and heat sink design, with highly efficient heat dissipation system.
- Huge range of variable parameters allows adjustment of the settings for most 1S racing classes. These including Modified, Stock, Zero Timing (Blinky) and Drifting etc etc.
- 32-bit microprocessor can support more powerful processing capability and more accurate motor output.
- Enhanced throttle response, excellent acceleration, linearity and drive ability.
- Multiple protection features: Low voltage cut-off protection, over-heat protection and throttle signal loss protection.
- Uses Bluetooth module to allow programming the parameter settings and firmware upgrades via app (supports real time programming, no need to restart the esc).
Data logging for real-time maximum ESC temperature, Motor RPM, Voltage and Adv. Timing and so on.
Specifications
Sensored/Sensorless - Sensored
Cont. Current - 100A
Burst Current - 360A
Input Voltage - 1S LiPo
BEC Output - 6.0-7.4V/5A
Size(L*W*H) - 37.0*38.2*17mm
Weight - 83g
ESC Programming Via - Mobile Phone APP
Firmware Upgrade - Supported
Waterproof - No
Programmable Items
Throttle Response-Coast-Neutral Range-Min. Throttle-Minus-Minus Range-Max. Forward force
Brake Response-Min. Brake Force-Max. Brake Force-Fwd. Drag Brake Force-Fwd. Drag Brake Response-Rev. Drag Brake Force-Rev. Drag Brake Response-PWM Freq.
Boost Timing-Trigger-RPM Threshold-Initial Angle-Angle Inc. Rate-Angle Dec. Rate
Turbo Timing-Angle Inc. Rate-Angle Dec. Rate-Turbo Delay-Delay Reload
Motor Rotation-Motor Poles-Running Mode-Drive PWM Freq.-CutOFF Voltage-CutOFF Thermal-BEC-Output-A/C Swap
Includes; speed control, instructions, external switch. Does not include sensor lead or fan.
Key Info:
- Brand: Core RC
- Part No: SCH-CR885
- Barcode: 5051294194598
- Motor Type: Brushless
- LiPo Compatible: Yes
