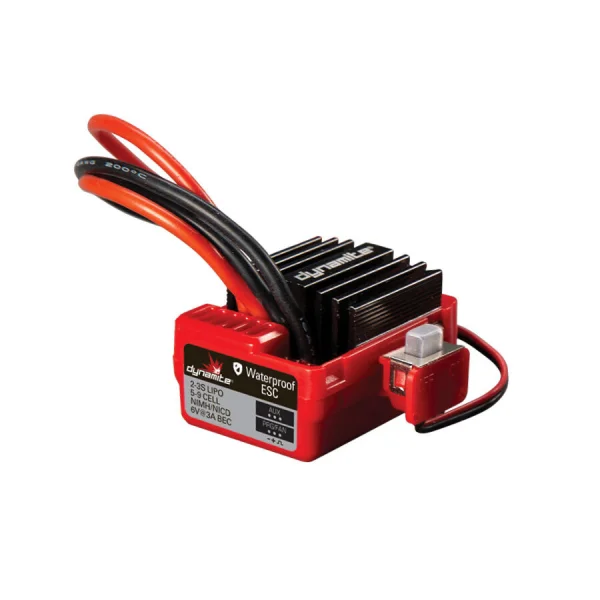

Dynamite Brushed Crawler ESC 40A (DYNS2214)

The Dynamite Brushed Crawler ESC (DYNS2214) delivers smooth, reliable control for crawler builds in a compact, water-resistant package. It combines robust current handling with programmable safeguards and a steady 6V BEC to support your receiver and accessories.

Supporting 2S–3S LiPo or 6–9 cell NiMH packs, this 40A ESC provides forward and reverse drive, adjustable timing, and multiple protection features. An IC3 connector is pre-fitted for straightforward installation.

Key Specifications

• Forward: Yes
• Reverse: Yes
• Auto cutoff: Yes
• Low-voltage cutoff programmable: Yes
• Overload protection: Yes
• Water-resistant: Yes
• Programmable: Yes
• Adjustable timing: Yes
• Input voltage: 2S–3S LiPo / 6–9 cell NiMH
• Maximum continuous current: 40A
• Maximum burst current: 180A
• BEC: 6V, 3A continuous (shared between receiver, auxiliary light output and cooling fan)
• Resistance: On-resistance FET: 0.002
• Connector type: IC3
• Dimensions: Length 1.8" (46.5 mm), Width 1.3" (34 mm), Height 1.1" (28.5 mm)
