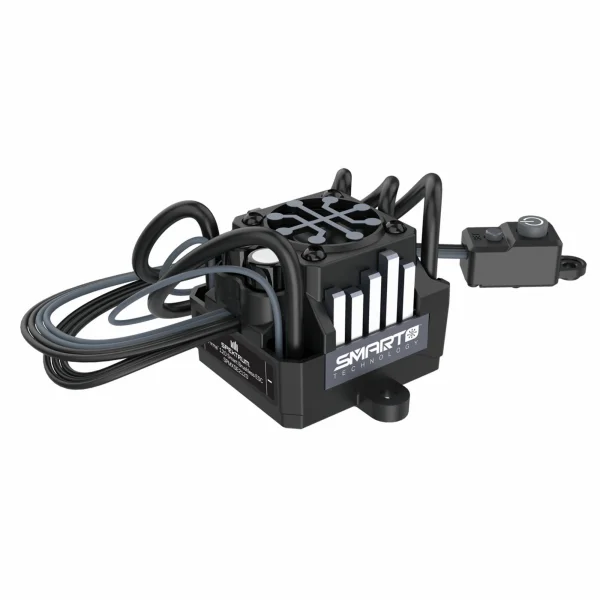

Firma 120 V2

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Firma 120 V2 Specfications:

• Amperage: 120A or larger
• Max Input Voltage: 14.8V
• Connector Type: IC5, 4mm Bullet
• ESC Type: Brushless
• Product Length: 1.7" (43 mm)
• Maximum Burst Current: 830A
• Maximum Continuous Current: 120A
• Application: Surface
• Auto Cutoff: Yes
• BEC Continous Current: 4
• Low-Voltage Cutoff Programmable: Yes
• Output Connector: 4mm Bullet
• Overload Protection: Yes
• Product Weight: 5.4 oz (153g)
• Water-Resistant: Yes
• Battery Input Lead: IC5
• Product Width: 1.53" (39 mm)
• Technology: Smart
• Brakes: Yes
• Programmable: Yes
• Programming Options: Button, Programming Box, Smartlink App, On Screen Text Gen
• Reverse: Yes
• BEC: Yes
• BEC Voltage: 6 and 7V selectable
• Drive Type: Forward/Brake/Reverse
• Input Voltage: 11.1V to 14.8V (3S – 4S LiPo, 8-12 cell NiMH)
• Motor Output Lead: 4mm
• Product Application: Surface
• Product Height: 1.33" (34 mm)
• Time Delay Brake: Yes

• (1) Spektrum™ Firma™ Smart ESC
• (1) Spektrum Smart Sticker Sheet
• (1) Product Manual

• (1) Spektrum™ Surface Receiver
• (1) Spektrum Smart Technology LiPo Battery
• (1) Spektrum Transmitter
