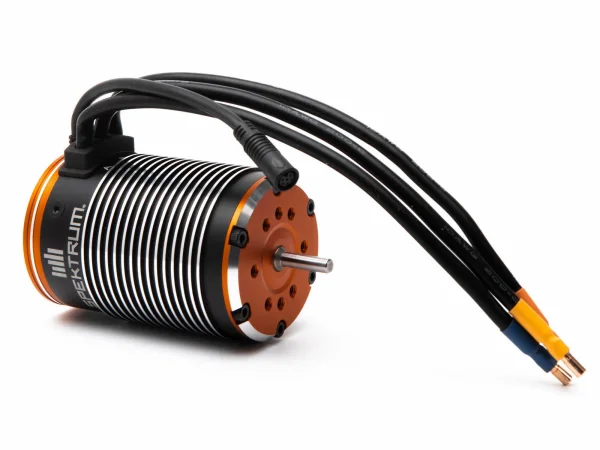

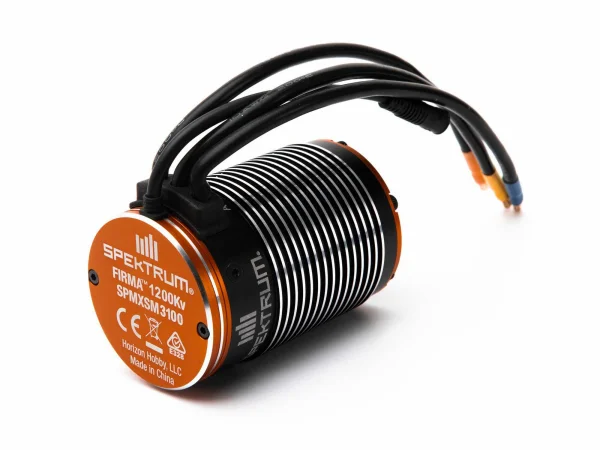

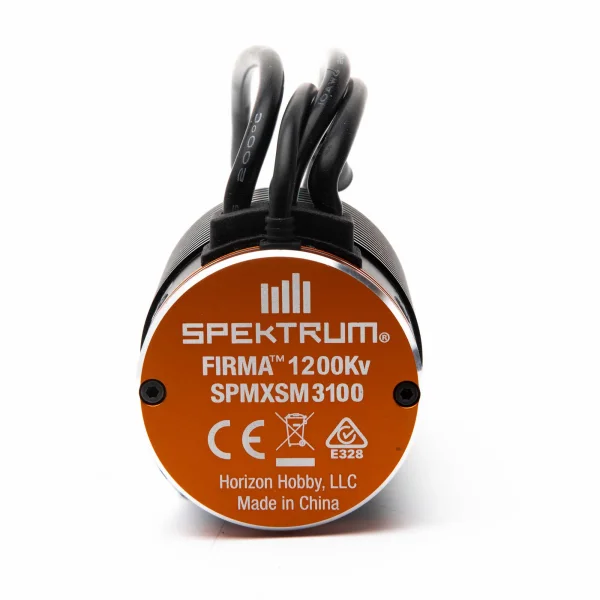

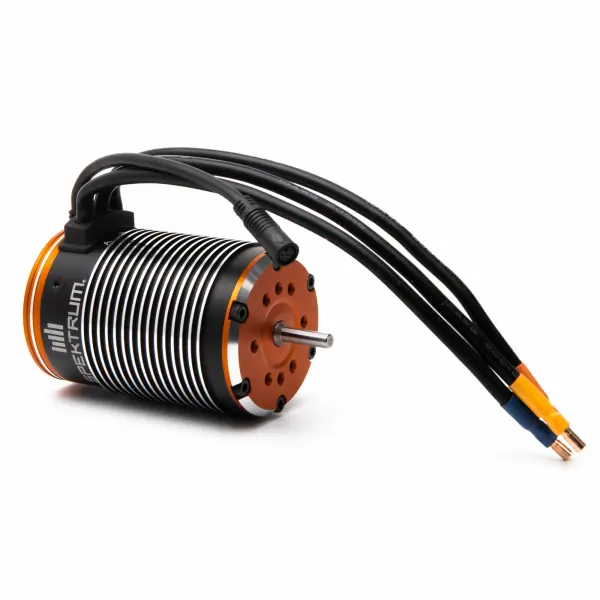

FIRMA 1200Kv 1/6 BL Sensored Crawler Motor

The Spektrum FIRMA 1200Kv 1/6 BL Sensored Crawler Motor (SPMXSM3100) is built for giant-scale crawling where smooth control, torque and durability are essential. Its large 5684 can and sensored design help deliver low-cog startup and precise throttle response across challenging terrain.

Overview

Ideal for giant scale crawlers, rock racers and trailers running on 2S–4S LiPo power, this motor features a low-cog 4-pole, 8-magnet rotor, CNC-machined aluminium housing, insulated high-purity copper windings, a high-quality alloy steel 5mm output shaft and precision bearings for smooth, long-lasting performance. It arrives with 3.5mm gold-plated bullet connectors for straightforward installation, plus a waterproof sensor lead with a locking plug and gasket. A built-in magnetic encoder provides polarity protection by maintaining phase signal consistency — simply match wire colour to your ESC connectors.

Features

• Large 5684 can size to fit the demands of giant scale crawlers and scalers
• FOC (Field-Oriented Control) equipped
• High-quality 4-pole sintered rotor
• Polarity protection via magnetic encoder for precise phase signals; match wire colour to ESC connectors
• 3.5mm gold-plated bullet connectors
• Waterproof sensor wire with locking plug and gasket
• High-quality construction with precision ball bearings and hardened steel 5mm output shaft

Specifications

• Forward: Yes
• Reverse: Yes
• Voltage: 4S/15V
• Outer Diameter: 2.2" (56 mm)
• Maximum Continuous Current: 80A
• Motor Type: Brushless
• Application: 1/6 Rock Crawling
• Output: 750W (3S)
• Product Application: Crawling, Surface
• RPM/Volt (Kv): 1160
• Connector Type: 3.5mm Bullet
• Product Length: 3.3" (84 mm)

Required to Complete

• Spektrum Firma 120A Sensored Brushless Smart Crawler ESC (required)

Suggested Compatibility

• Axial SCX6 platform (suggested)
