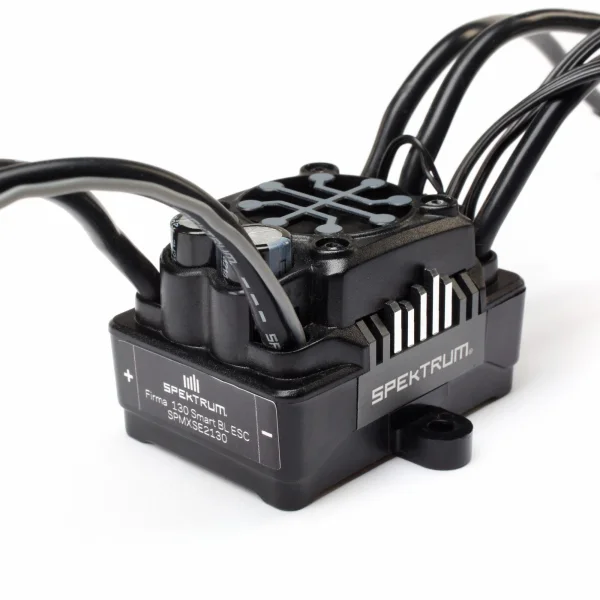

Firma 130A Black Edition Brushless Smart ESC V2 - 2S-4S
Brand: Spektrum
Part No: SPMXSE2130
Backorder: Expected 25th July 2026
Request Stock NotificationThe Spektrum Firma 130A Black Edition Brushless Smart ESC V2 (SPMXSE2130) brings Smart technology to your 1/10 scale RC car with seamless, single-wire telemetry and robust 2S–4S LiPo support. Pairing a fast 32-bit ARM M4 processor with waterproof construction and multiple programming routes, this sensored brushless controller delivers reliable, tunable power and real-time data to help you optimise performance on track or trail.
As part of the Spektrum Smart ecosystem, the Firma 130A V2 transmits vital telemetry such as RPM, ESC temperature, battery voltage and capacity directly to your compatible transmitter without extra modules or wiring. Multi-point protection and rugged thermal design provide confidence in demanding conditions.
Key Features
- Smart all-in-one telemetry delivering real-time RPM, temperature, battery voltage and capacity
- Fast, powerful 32-bit ARM M4 processor
- Waterproof design
- Multiple options for easy programming:
- On-ESC button programming
- Spektrum Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Compact case with mounting tabs, aluminium heat sink and cooling fan
- High heat-resistant IC connectors, backwards compatible with EC connectors
- Firmware updatable via the Smart ESC Programming Box
- Limited 1-year warranty
Specifications
- Input voltage: 7.4V–14.8V (2S–4S LiPo)
- Maximum continuous current: 130A
- Maximum burst current: 760A
- ESC type: Brushless
- Motor type: Brushless
- Sensored: Yes
- Motor limit: 3S < 4000Kv; 4S < 3000Kv
- Forward/Reverse/Brakes: Yes
- Auto cutoff (LVC): Yes, programmable
- Programmable: Yes
- BEC: Yes — 6V or 7.4V adjustable, 5A continuous
- Connector type: IC5
- Battery connector: Solder tabs (user-installable IC5 lead included)
- Battery input lead: None, IC5
- Motor output lead: Solder tab
- Water-resistant: Yes
- Technology: Spektrum Smart
In The Box
- Spektrum Firma Smart ESC
- Spektrum Smart sticker sheet
- Product manual
Needed To Complete
- Spektrum surface receiver
- Spektrum Smart Technology LiPo battery
- Spektrum transmitter
Suggested Compatibility
- 1/10th scale 2WD and 4WD surface vehicles using 2S–4S LiPo setups
Secured by Stripe
Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics, creating the best-performing RC system for your vehicle.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you more confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever without installing extra components that work independently. You won't need additional wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage, and capacity.
Firma ESCs gather the data and send it to your transmitter in real-time instead of storing it for an after-run study. You can adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor
- Waterproof
- Multiple options for easy programming:
- Button programming
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
- Ideal for 2WD and 4WD 1/10th scale surface applications running on 2S - 4S LiPo setups
- High current adjustable BEC (6V or 7.4V @ 4 Amps)
- Ready to install — no soldering required
- Compact for easy installation in most applications
- Rugged plastic case with mounting tabs
- Aluminum heat sink for high efficiency
- Cooling fan
- Adjustable high-power BEC
- Firmware updatable through the Smart ESC Programming Box
- High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
- Limited 1-year warranty
Firma 130A Black Edition Brushless Smart ESC V2 - 2S-4S Specfications:
- Amperage: 120A or larger
- Connector Type: IC5
- ESC Type: Brushless
- Auto Cutoff: Yes
- BEC Continous Current: 5A
- Low-Voltage Cutoff Programmable: Yes
- Overload Protection: Yes
- Water-Resistant: Yes
- BEC: Yes
- BEC Voltage: 6V or 7.4V Adjustable @ 5A
- Input Voltage: 7.4V - 14.8V
- Motor Limit: 3S less than 4000Kv, 4S less than 3000Kv
- Motor Output Lead: Solder tab
- Sensored: Yes
- Forward: Yes
- Reverse: Yes
- Brakes: Yes
- Programmable: Yes
- Battery Connector: Solder tabs (user installable IC5 lead included)
- Battery Input Lead: None, IC5
- Technology: Smart
- Maximum Burst Current: 760A
- Maximum Continuous Current: 130A
- Motor Type: Brushless
- (1) Spektrum™ Firma™ Smart ESC
- (1) Spektrum Smart Sticker Sheet
- (1) Product Manual
- (1) Spektrum™ Surface Receiver
- (1) Spektrum Smart Technology LiPo Battery
- (1) Spektrum Transmitter
Key Info:
- Brand: Spektrum
- Part No: SPMXSE2130
- Barcode: 0605482184585
