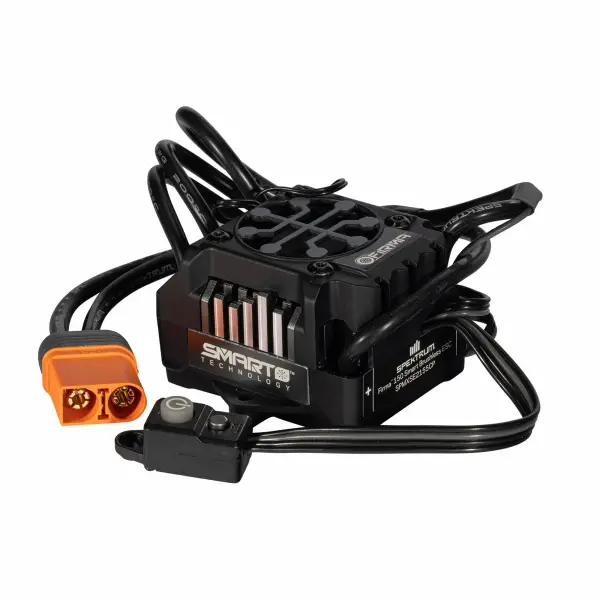

Spektrum Firma 150A Brushless Smart ESC V2 SPMXSE2155CP
Brand: Spektrum
Part No: SPMXSE2155CP
Expected Mon 30 Nov
Request Stock NotificationFinance options available at checkout.
Fits These Models (1)
Show all 1 models
Description
Spektrum Firma 150A Brushless Smart ESC V2 - 3S - 4S: IC5, part number SPMXSE2155CP, is a brushless electronic speed control for 3S to 4S LiPo-powered RC models. It provides a single-wire Smart telemetry connection, sending live information such as motor RPM, temperature, battery voltage and capacity to a compatible transmitter without separate telemetry modules or wiring.
The ESC uses a 32-bit ARM M4 processor and includes an IC5 connector, 4 mm bullet motor outputs, a cooling fan and an aluminium heat sink. Its adjustable BEC can provide either 6V or 7.4V output, while the compact case has mounting tabs for installation. The unit is supplied ready to install without soldering and supports forward and reverse operation, with braking also available.
Features
Settings can be adjusted using the control button, a Spektrum Smart ESC Programming Box or the SmartLink USB Updating and Programmer application. Firmware can be updated through the Smart ESC Programming Box. Protection functions include over-current protection, automatic LiPo low-voltage cutoff, thermal protection and failsafe protection. The ESC is designed for 3S to 4S LiPo input, covering 11.1V to 14.8V, and has a maximum burst current of 950A. Its listed dimensions are 58 x 50 x 38 mm, with a weight of 238 g.
The Smart system sends operating data to the transmitter in real time, allowing settings to be monitored and adjusted while the model is in use. The ESC is water-resistant and includes a limited one-year warranty.
What's Included
- Spektrum Firma Smart ESC
- Spektrum Smart sticker sheet
- Product manual
Required to Complete
- 3S to 4S LiPo battery with IC5 connector
- Spektrum radio and compatible surface receiver
Secured by Stripe
Specifications
Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics, creating the best-performing RC system for your vehicle.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you more confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever without installing extra components that work independently. You won't need additional wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage, and capacity.
Firma ESCs gather the data and send it to your transmitter in real-time instead of storing it for an after-run study. You can adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Spektrum Firma 150A Brushless Smart Electronic Speed Control Features- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor
- Waterproof
- Multiple options for easy programming:
- Button programming
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum™ engineers in partnership with the industry's leading ESC manufacturer
- High current adjustable BEC (6v or 7.4v @ 4 Amps)
- Compact for easy installation in most applications
- Ready to install — no soldering required
- Rugged plastic case with mounting tabs
- Aluminum heat sink for high efficiency
- Cooling fan
- Adjustable high-power BEC
- Firmware updatable through the Smart ESC Programming Box
- High heat-resistant IC5™ connector
- Limited 1-year warranty
Firma 150A Brushless Smart ESC V2 - 3S - 4S: IC5 Specifications:
- Battery Type: LiPo (3.7V per cell)
- BEC Continuous Current: 150A
- BEC Type: Linear
- Brakes: Yes
- Connector Type: IC5
- Forward: Yes
- Input Voltage: 3S to 4S LiPo (11.1V to 14.8V)
- Maximum Burst Current: 950A
- Motor Type: Brushless
- Output: 6V/7.4V @ 5A
- Output Connector: 4mm Bullet
- Product Height: 1.5" (38 mm)
- Product Length: 2.3" (58 mm)
- Product Weight: 238 g (8.4oz)
- Product Width: 1.97" (50 mm)
- Reverse: Yes
- Water-Resistant: Yes
What's in the Box:
- (1) Spektrum™ Firma™ Smart ESC
- (1) Spektrum Smart Sticker Sheet
- (1) Product Manual
Firma 150A Brushless Smart ESC V2 - 3S - 4S: IC5 Requires to Complete:
- (1) 3-4S LiPo Battery with IC5 Connector
- (1) Spektrum Radio and Compatible Surface Receiver
Key Info:
- Brand: Spektrum
- Part No: SPMXSE2155CP
- Barcode: 5052127057011
- Fitment: Standard Part
