Spektrum Firma 30A Smart ESC & 4500Kv Motor – SPMXSEMC14
Brand: Spektrum
Part No: SPMXSEMC14
Supplier Stock: Expected August 15th
Request Stock NotificationFinance options available at checkout.
Fits These Models (4)
Show all 4 models
Description

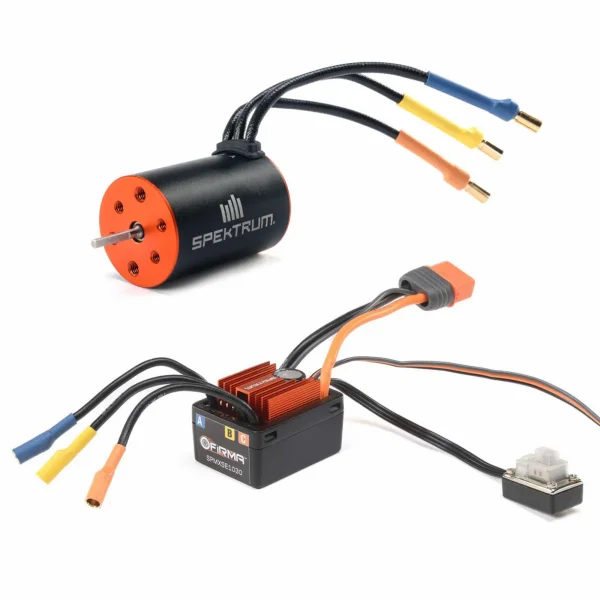

The Spektrum Firma 30A Brushless Smart ESC / 4500Kv Motor Combo (SPMXSEMC14) delivers smooth, efficient power for mini-scale RC vehicles with the convenience of built-in Smart telemetry. Waterproof construction helps keep you running in varied conditions, while the 4‑pole 2436 4500Kv brushless motor provides strong torque and speed for 1/16–1/18 applications.
Key Features
- Smart all-in-one telemetry with no extra modules required
- Waterproof design (see instructions for details)
- Multiple programming options
- Multi-point protection for added peace of mind
The Smart data wire on the IC3 connector sends real-time telemetry from the Firma Smart ESC directly to compatible Spektrum transmitters, replacing external sensors and simplifying installation.
Specifications
- Amperage: 30A (maximum continuous), 100A (burst)
- Input Voltage: 2S–3S LiPo | 5C–9C NiMH
- Application: 1/16 to 1/18 mini-sized vehicles
- ESC Type: Brushless; Forward/Reverse/Brakes: Yes
- Technology: Spektrum Smart
- BEC: Linear, 6V / 7.4V, 3A continuous
- Connector Type: IC3
- Motor: Firma 2436 4‑pole, 4500Kv (sensorless)
- Motor/Output Connectors: 3.5mm bullets
- Shaft Diameter: 2mm; Shaft Length: 12mm
- Low-Voltage Cutoff: Programmable
- Overload Protection: Yes
- Programmable: Yes
What's Included
- Spektrum Firma 30A Brushless Smart ESC
- Spektrum Firma 2436 4500Kv 4‑Pole Brushless Motor
- Product manual
Note: A compatible battery adapter and/or battery connector may be required (sold separately).
Secured by Stripe
Firma 30A Brushless Smart ESC / 4500Kv Motor Combo: Minis Manuals & Guides
Manuals & Guides
Specifications
Feature-packed Spektrum™ Firma™ Smart ESCs deliver power and intelligence all-in-one, with no additional modules or links required. This waterproof, 30A brushless marine ESC drives your mini through almost any condition imaginable, with explosive acceleration and ultra-smooth performance — while feeding real-time telemetry straight to your Spektrum™ transmitter! The 4500Kv Motor offers impressive torque, speed, and excellent efficiency.
Spektrum Firma 30A Brushless Smart ESC / 4500Kv Motor Combo Features- Smart all-in-one telemetry
- Waterproof (see instructions for details)
- Multiple programming options
- Multi-point protection
The Smart data wire on the innovative IC3™ connector replaces sensors, sending telemetry information to the transmitter directly from the Firma™ Smart ESC.
*Please note: A compatible battery adapter and/or battery connector may be required (sold separately).
Firma 30A Brushless Smart ESC / 4500Kv Motor Combo: Minis Specfications:
- Amperage: 30A
- Application: 1/16 to 1/18th scale mini sized vehicles
- BEC: Yes
- BEC Continous Current: 3A
- BEC Type: Linear
- BEC Voltage: 6V / 7.4V
- Brakes: Yes
- Bushing Or Bearing: Bearing
- Connector Type: IC3
- ESC Type: Brushless
- Forward: Yes
- Input Voltage: 2S - 3S LiPo | 5C - 9C NiMH
- Low-Voltage Cutoff Programmable: Yes
- Maximum Burst Current: 100A
- Maximum Continuous Current: 30A
- Motor Output Lead: 3.5mm Bullet
- Motor Type: Brushless
- Number of Poles: 4
- Output Connector: 3.5mm Bullet
- Overload Protection: Yes
- Programmable: Yes
- Reverse: Yes
- RPM/Volt (Kv): 4500Kv
- Sensored: No
- Shaft Diameter: 0.08" (2 mm)
- Shaft Length: 0.47" (12 mm)
- Speed Control: Included
- Technology: Smart
- (1) Spektrum Firma 30A Brushless Smart ESC
- (1) Spektrum Firma 2436 4500Kv 4-Pole Brushless Motor
- (1) Product Manual
Key Info:
- Brand: Spektrum
- Part No: SPMXSEMC14
- Barcode: 0660132883973
- Fitment: Option Part
