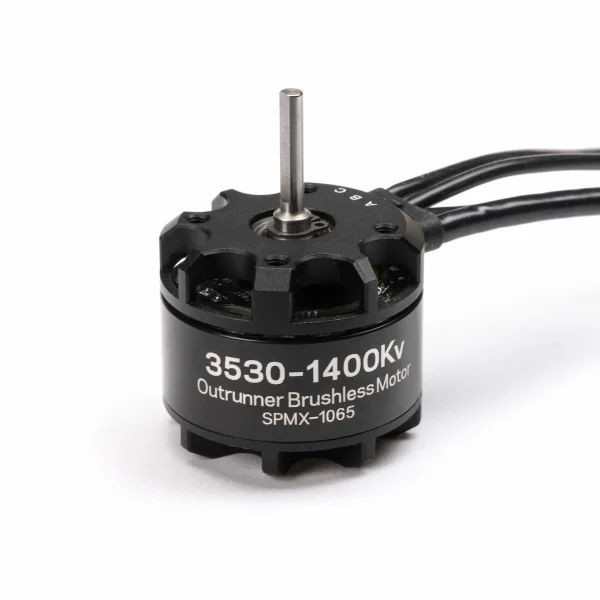

Spektrum Firma 3530 1400Kv Sensored Outrunner Motor
Brand: Spektrum
Part No: SPMX-1065
Expected 5th October 2026
Request Stock NotificationFinance options available at checkout.
Description
The Spektrum Firma 3530-1400Kv 14‑pole sensored outrunner brushless motor (SPMX-1065) delivers smooth rotation and robust control on 2–4S LiPo power. It’s a durable, high‑efficiency option for drivers who value precise throttle response and dependable performance.
Engineered for longevity, it features a CNC‑machined aluminium housing, insulated high‑purity copper windings and a high‑quality alloy steel 3.175 mm (1/8 in) output shaft. Pre‑installed 3.5 mm gold‑plated bullet connectors help make installation quick and tidy.
Key Features
- 14‑pole rotor design with sensored control
- CNC‑machined aluminium housing
- Insulated high‑purity copper windings
- High‑quality alloy steel 3.175 mm (1/8 in) output shaft
- Pre‑installed 3.5 mm gold‑plated bullet connectors
- Designed for use with 2–4S LiPo power
Suggested Compatibility
- Scaler and crawler models running on 2–4S LiPo power
Secured by Stripe
Firma 3530-1400Kv 14-Pole Sensored Outrunner Brushless Motor Manuals & Guides
Manuals & Guides
Specifications
The Spektrum® Firma™ 3630 1400Kv Brushless Outrunner Motor is a great choice for Scaler and Crawler models running on 2-4S LiPo power. This motor features a 14-pole rotor design, CNC machined aluminum housing, insulated high purity copper windings, and a high-quality alloy steel 3.175mm (1/8 in.) output shaft for durability and smooth rotation. The motor includes preinstalled 3.5mm gold-plated bullet connectors for easy installation.
Firma 3530-1400Kv 14-Pole Sensored Outrunner Brushless Motor Specifications:
- Connector Type: 3.5mm Bullet
- Connector Wire Length: 8.07" (205 mm)
- LiPo Compatibility: 2S, 3S, 4S
- Motor Size: 3530-1400Kv
- Motor Type: Brushless
- Number of Poles: 14
- Outer Diameter: 1.37" (35 mm)
- Product Length: 1.18" (30 mm)
- Product Weight: 95g
- RPM/Volt (Kv): 1400Kv
- Shaft Diameter: 0.72" (18 mm)
- Shaft Length: 0.12" (3 mm)
- Voltage: 7.4v – 14.8v
What's in the Box:
- (1) Firma Sensored 3530-1400Kv Outrunner Brushless Motor
Key Info:
- Brand: Spektrum
- Part No: SPMX-1065
- Barcode: 0660132935344
