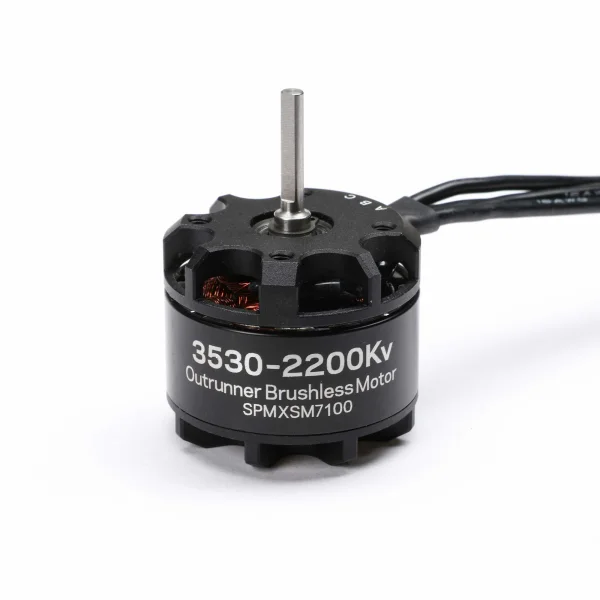

Spektrum Firma 3530 2200Kv Outrunner Motor - 3.175mm
Brand: Spektrum
Part No: SPMXSM7100
Expected 5th October 2026
Request Stock NotificationFinance options available at checkout.
Description
The Spektrum Firma 3530 2200Kv 12‑Pole Outrunner Brushless Motor (SPMXSM7100) delivers smooth, reliable performance for RC crawling applications. A CNC‑machined aluminium housing and insulated high‑purity copper windings support efficient operation, while the high‑quality alloy steel 3.175mm (1/8 in.) output shaft provides durability. Preinstalled 3.5mm gold‑plated bullet connectors make installation straightforward.
Key Features
- 12‑pole rotor design for smooth, consistent rotation
- CNC‑machined aluminium housing for strength and heat management
- Insulated high‑purity copper windings
- High‑quality alloy steel 3.175mm (1/8 in.) output shaft
- Preinstalled 3.5mm gold‑plated bullet connectors
Suggested Compatibility
- 1/10 rock crawler models
- 2–3S LiPo power systems
Part number SPMXSM7100 from Spektrum’s Firma range offers a compact 3530 can size and 2200Kv rating suited to controlled crawling and smooth low‑speed driving characteristics.
Secured by Stripe
Firma 3530-2200Kv 12-Pole Outrunner Brushless Motor - 3.175mm Manuals & Guides
Manuals & Guides
Specifications
The Spektrum® Firma™ 3530 2200Kv Brushless Motor is a great choice for 1/10 rock crawler models running on 2-3S LiPo power. This motor features a 12-pole rotor design, CNC machined aluminum housing, insulated high purity copper windings, and high-quality alloy steel 3.175mm (1/8 in.) output shaft for durability and smooth rotation. The motor includes preinstalled 3.5mm gold-plated bullet connectors for easy installation.
Firma 3530-2200Kv 12-Pole Outrunner Brushless Motor - 3.175mm Specifications:
- Connector Type: 3.5mm Bullet
- Connector Wire Length: 8.07" (205 mm)
- LiPo Compatibility: 2S, 3S
- Motor Type: Brushless
- Number of Poles: 12
- Outer Diameter: 1.37" (35 mm)
- Product Length: 1.18" (30 mm)
- Product Weight: 100g
- RPM/Volt (Kv): 2200Kv
- Shaft Diameter: 0.12" (3 mm)
- Shaft Length: 0.7" (18 mm)
- Voltage: 7.4v - 11.1v
What's in the Box:
- (1) Firma 3530-2200Kv 12-Pole Outrunner Brushless Motor, 3.175mm
Key Info:
- Brand: Spektrum
- Part No: SPMXSM7100
- Barcode: 0660132888145
