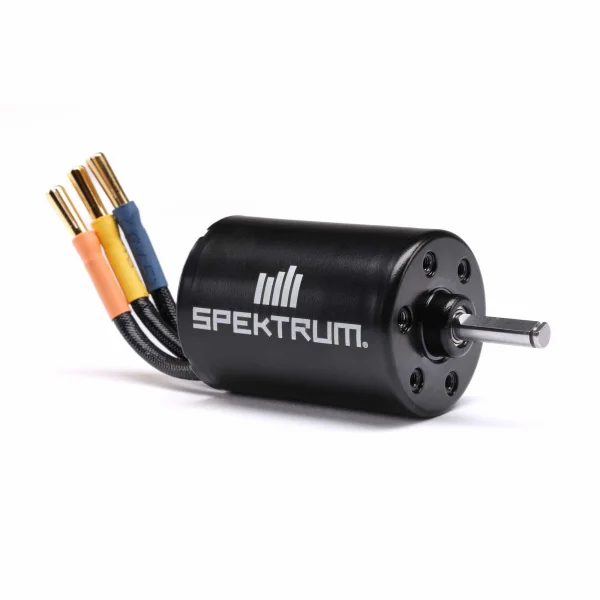

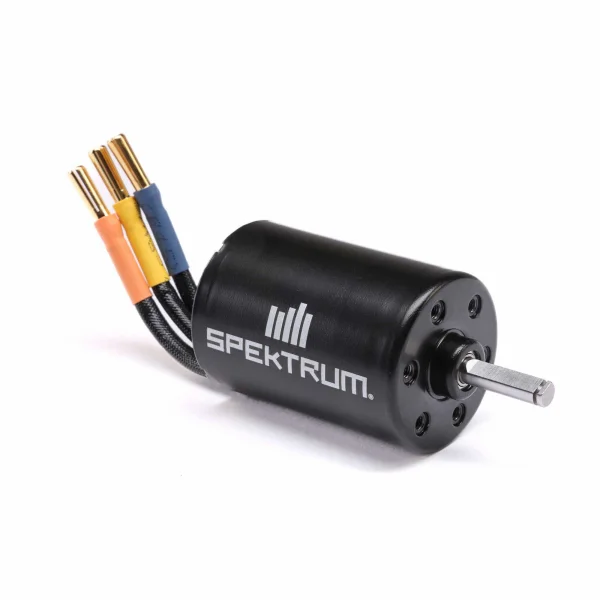

Spektrum Firma 3650 4000Kv Brushless Motor 5mm

The Spektrum Firma 3650 4000Kv 4-pole sensorless brushless motor (SPMX-1096) delivers efficient power in a compact 3650 can size. It features a 5 mm shaft and 4 mm bullet connectors, with an operating voltage range of 7.4V to 11.1V.

Built for smooth, sensorless running, this 4-pole design provides consistent performance within its specified parameters. Supplied with short leads and clear specifications, it offers a straightforward fitment where its dimensions and connections are suitable.

Specifications

• Connector Type: 4mm Bullet
• Connector Wire Length: 50mm
• Kv Rating: 4000
• Motor Size: 3650
• Motor Type: Brushless
• Number of Poles: 4
• Product Length: 1.97" (50 mm)
• Product Weight: 300g
• Sensored: No
• Shaft Diameter: 0.19" (5 mm)
• Shaft Length: 0.76" (19.25 mm)
• Voltage: 7.4V - 11.1V

In The Box

• (1) Spektrum Firma 3650 4000Kv 4-Pole Sensorless Brushless Motor
• (1) Product Manual
