Spektrum Firma 3650-3400Kv Brushless Motor SPMXSM5500
Brand: Spektrum
Part No: SPMXSM5500
Expected Mon 9 Nov
Request Stock NotificationFinance options available at checkout.
Fits These Models (2)
Show all 2 models
You May Also Need
Add-ons and accessories that go with the Firma 3650-3400Kv 4-Pole Sensorless Brushless Motor: 5mm
Description

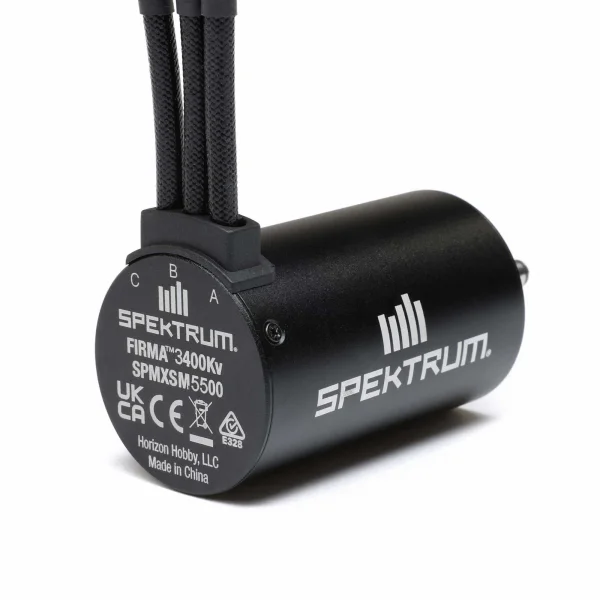

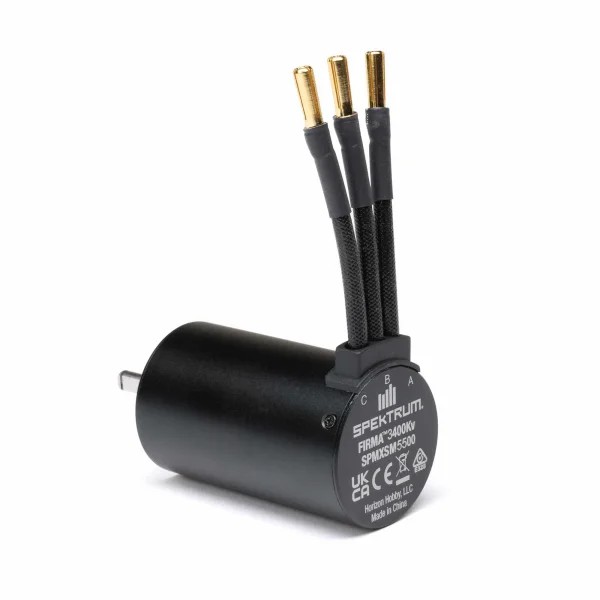

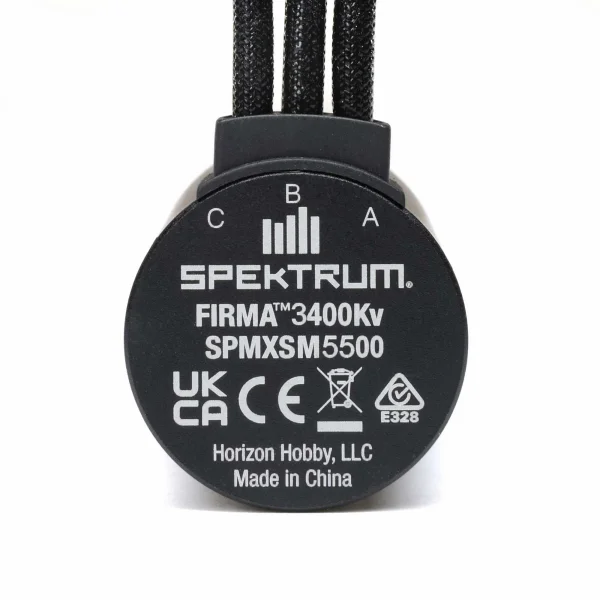

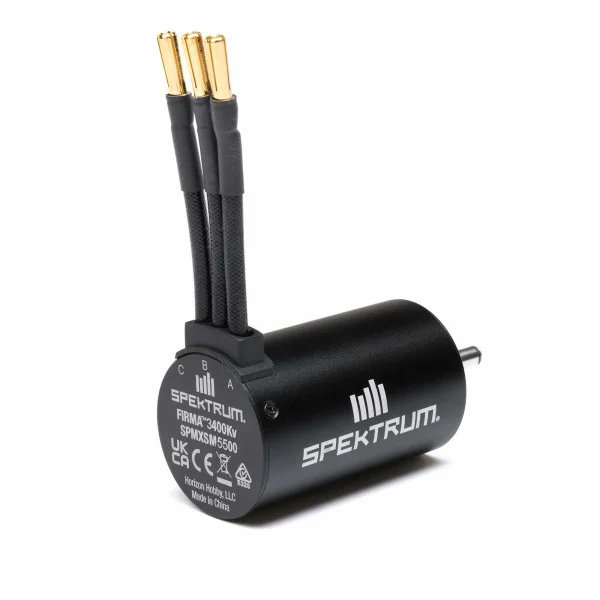

The Spektrum Firma 3650-3400Kv 4-Pole Sensorless Brushless Motor: 5mm, part number SPMXSM5500, is a sensorless brushless motor for 2S-3S input voltage. It uses a four-pole design and has a 3400Kv rating, with a 5mm shaft for installation. The motor measures 36mm in diameter and 60mm in length, with a stated weight of 300g. One motor is included in the box.
Specifications
- Motor size: 3650-3400Kv
- Motor type: Sensorless brushless
- Number of poles: 4
- Input voltage: 2S-3S, 7.4V-11.1V
- Outer diameter: 36mm
- Product length: 60mm
- Shaft diameter: 5mm
- Shaft length: 22mm
Secured by Stripe
Firma 3650-3400Kv 4-Pole Sensorless Brushless Motor: 5mm Manuals & Guides
Manuals & Guides
Specifications
Firma 3650-3400Kv 4-Pole Sensorless Brushless Motor: 5mm Specifications:
- Input Voltage: 2S-3S, 7.4v - 11.1v
- Motor Size: 3650-3400Kv
- Motor Type: Brushless
- Number of Poles: 4
- Outer Diameter: 1.42" (36 mm)
- Product Length: 2.36" (60 mm)
- Product Weight: 300g (10.6oz.)
- RPM/Volt (Kv): 3400Kv
- Shaft Diameter: 0.2" (5 mm)
- Shaft Length: 0.87" (22 mm)
What's in the Box:
- (1) Firma 3650-3400Kv 4-Pole Sensorless Brushless Motor
Key Info:
- Brand: Spektrum
- Part No: SPMXSM5500
- Barcode: 0660132655327
- Fitment: Standard Part
