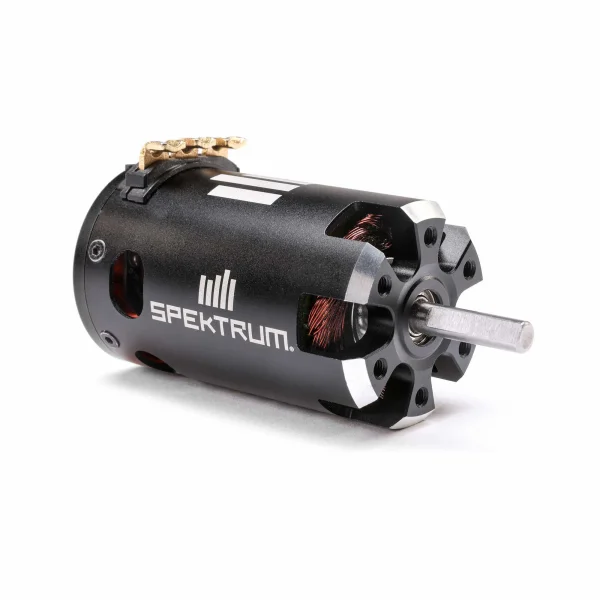

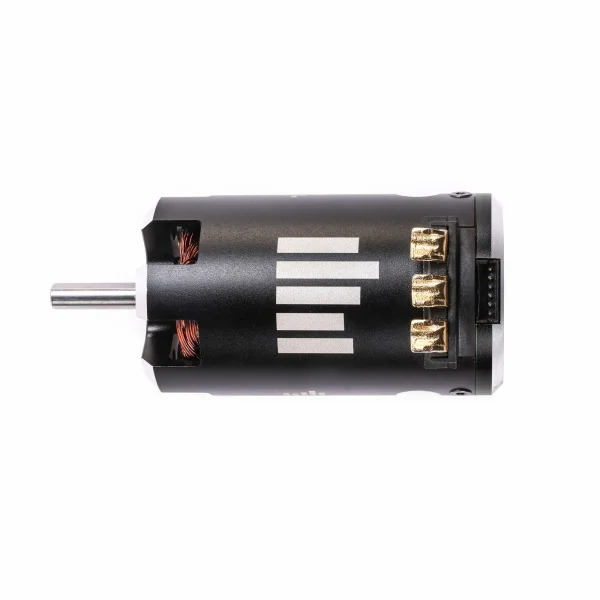

Firma 3662 4700Kv 4-Pole Sensored Brushless Motor: 5mm
Brand: Spektrum
Part No: SPMXSM4100
Shadow Stock: Usually ships next day
The Spektrum Firma 3662 4700Kv 4-pole sensored brushless motor (SPMXSM4100) delivers smooth, precise throttle response for 1/10 scale vehicles. Its sensored control lets a compatible ESC closely match throttle input to motor RPM, improving low-speed drivability and punch out of corners. A CNC-machined aluminium can, insulated high-purity copper windings, hardened steel 5mm output shaft and precision bearings provide durability and efficient performance.
Features
- Sensored design allows fine control at all speeds
- Suggested compatibility: Losi 1/10th LMT
- Highly efficient design
- 2S LiPo power capable
- Constructed with precision ball bearings and a hardened steel 5mm shaft for durability
Key Specifications
- Motor size: 3662
- Motor type: Brushless
- Number of poles: 4
- Input voltage: 2S/8.4V
- Outer diameter: 38 mm (1.48 in)
- Length: 63 mm (2.47 in)
- Weight: 237 g (8.36 oz)
- Sensored: Yes
- Shaft diameter: 5 mm (0.2 in)
- Shaft length: 19 mm (0.73 in)
- Bearing construction
In The Box
- Spektrum Firma 3662 4700Kv 4-Pole Sensored Brushless Motor
- Product manual
Secured by Stripe
The Spektrum™ Firma™ 4500Kv Sensored Brushless Motor is the perfect option for the Losi 1/10th LMT. The advantage of sensored motor control allows the ESC to pair the throttle input to the motor’s RPM with unmatched precision. This motor features a low-cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high-purity copper windings, a high-quality alloy steel 5mm output shaft, and precision bearings for durability and smooth rotation.
Spektrum Firma 3662 4700Kv Motor Features- Sensored design allows fine control at all speeds
- Perfect option for the Losi 1/10th LMT
- Highly efficient design
- 2S LiPo power capable
- Constructed with precision ball bearings and a hardened steel 5mm shaft for durability
Firma 3662 4700Kv 4-Pole Sensored Brushless Motor: 5mm Specfications:
- Application: 1/10th Losi LMT
- Bushing Or Bearing: Bearing
- Input Voltage: 2S/8.4V
- Motor Size: 3662
- Motor Type: Brushless
- Number of Poles: 4
- Outer Diameter: 1.48" (38 mm)
- Product Length: 2.47" (63 mm)
- Product Weight: 8.36oz (237g)
- RPM/Volt (Kv): 4500Kv
- Sensored: Yes
- Shaft Diameter: 0.2" (5 mm)
- Shaft Length: 0.73" (19 mm)
- (1) Spektrum Firma 3662 4700Kv 4-Pole Sensored Brushless Motor
- (1) Product Manual
Key Info:
- Brand: Spektrum
- Part No: SPMXSM4100
- Barcode: 0605482186084
