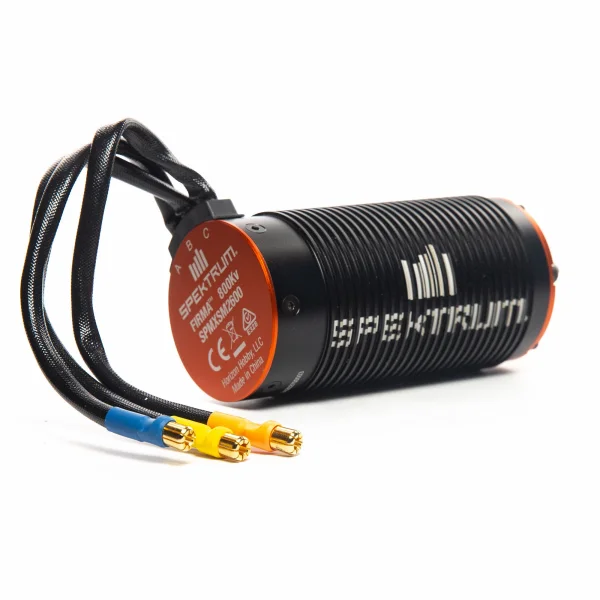

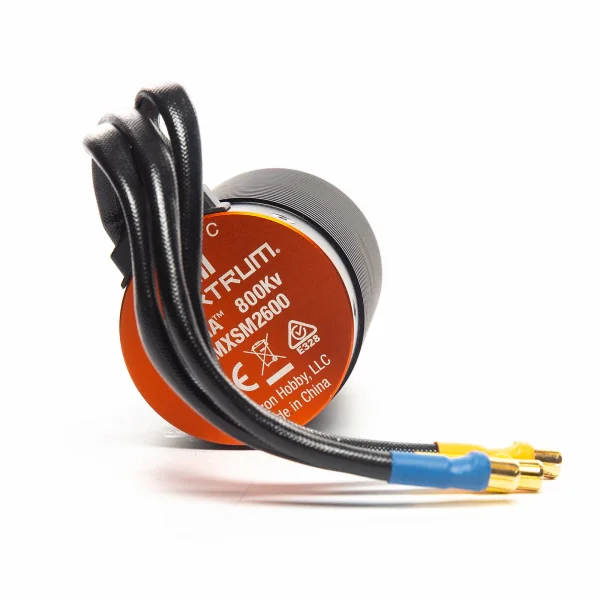

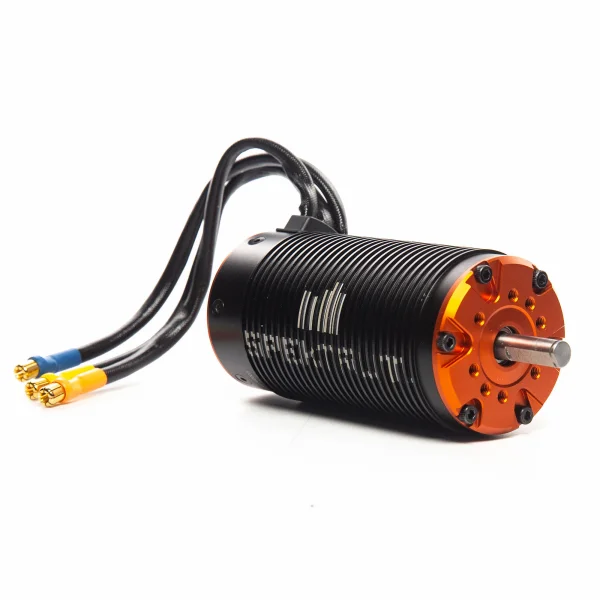

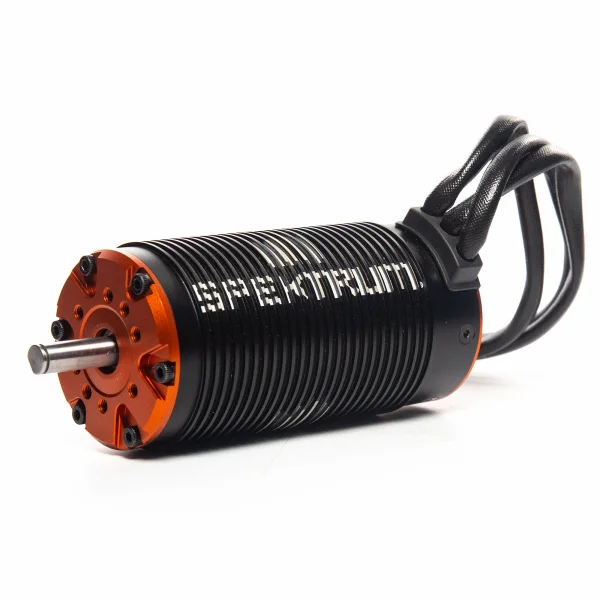

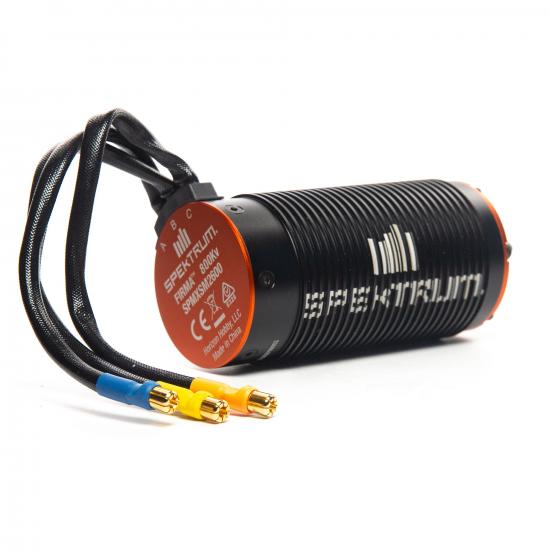

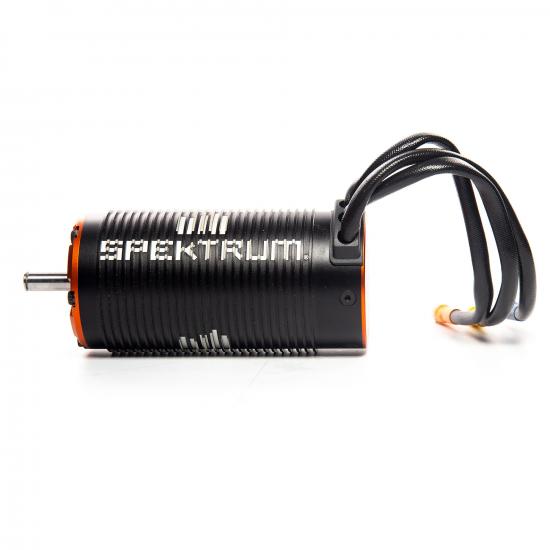

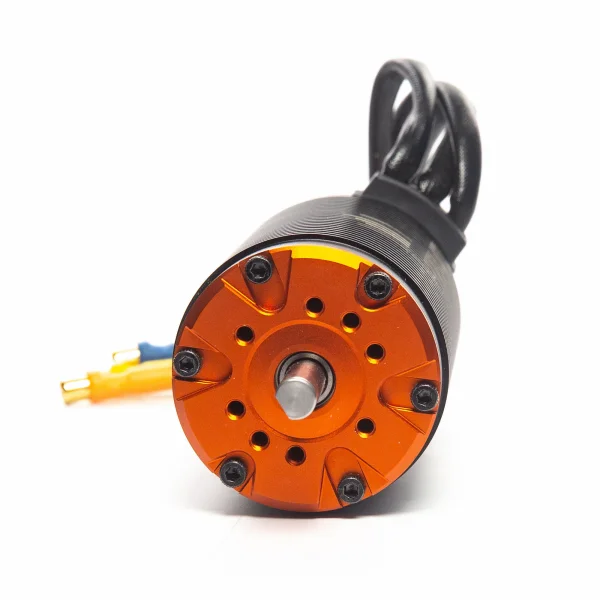

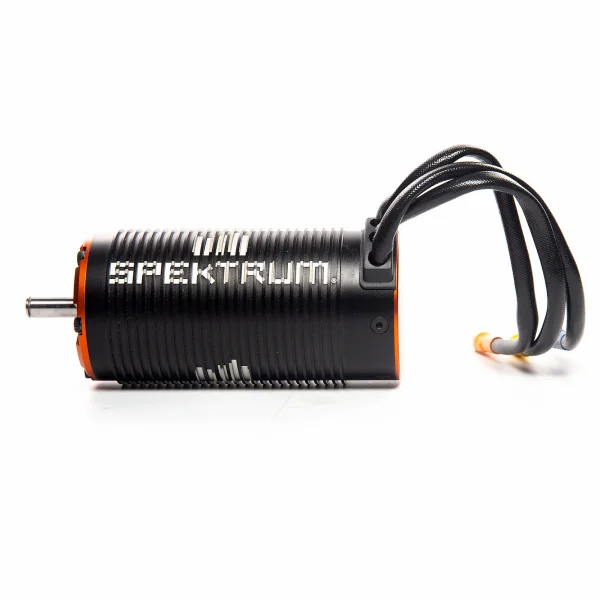

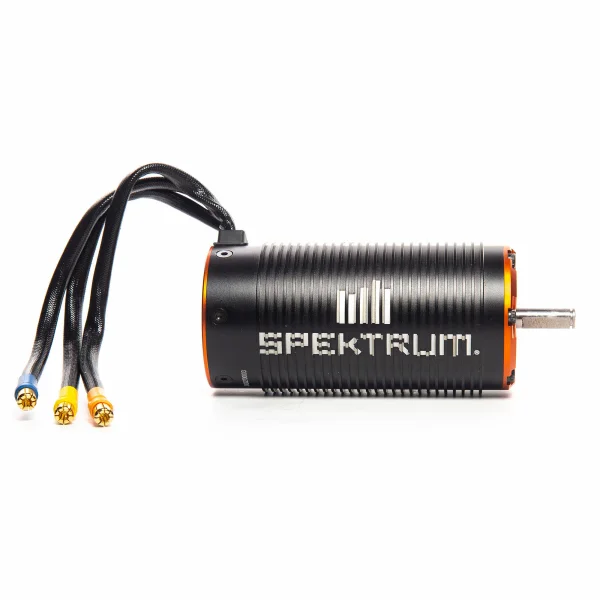

Firma 800Kv 4-pole Brushless Motor

The Spektrum Firma 800Kv 4-pole Brushless Motor (SPMXSM2600) delivers serious torque and efficiency for large-scale RC applications. Built around a sensorless inrunner design with a low-cog 4-pole rotor, it provides smooth power delivery on 3–8S LiPo while maintaining durability thanks to a CNC machined aluminium housing, high-purity copper windings and precision ball bearings.

A hardened 8mm Safe-D output shaft helps prevent pinion slip, and preinstalled 6.5mm gold-plated bullet connectors simplify installation. With up to 110A continuous current handling and an 87% efficiency rating, this 1/5 scale motor is a robust choice for high-power setups. It is also recommended to be paired with the Spektrum Firma 160A Brushless Smart ESC.

Features

• Ideal upgrade for 1/5 scale bashers and monster trucks running 3–8S LiPo
• High-efficiency, low-cog 4-pole design
• 8S LiPo power capable
• High-quality 4-pole sintered rotor
• Preinstalled 6.5mm gold-plated bullet connectors
• CNC machined aluminium can, precision ball bearings and hardened 8mm shaft
• Safe-D shaft with c-clip locking point to help prevent pinion gear slip

Key Specifications

• Kv rating: 800Kv (750–999Kv class)
• Motor type: Brushless, sensorless inrunner
• Scale class: 1/5
• Input voltage: 11.1–29.6V (3–8S LiPo)
• Maximum continuous current: 110A
• Constant wattage: 3000W or more
• Efficiency: 87%
• Motor size: 5611; outer diameter 56 mm; length 112 mm
• Shaft: 8 mm diameter, 22 mm length; Safe-D design
• Connectors: 6.5 mm bullets; lead length 190 mm
• Bearing-supported (no bushings); adjustable timing: No
• Resistance: 0.0049 ohms
• RPM/Volt: 12,475 @ 15V
• Product weight: 1130 g (39.86 oz)
• Recommended speed control: Spektrum Firma 160A Brushless Smart

What’s Included

• Firma 800Kv 4‑Pole Brushless Motor

Required to Complete

• 160A ESC

Suggested Compatibility

• ARRMA Roller kits and 1/5 scale bashers/monster trucks configured for 3–8S LiPo setups
