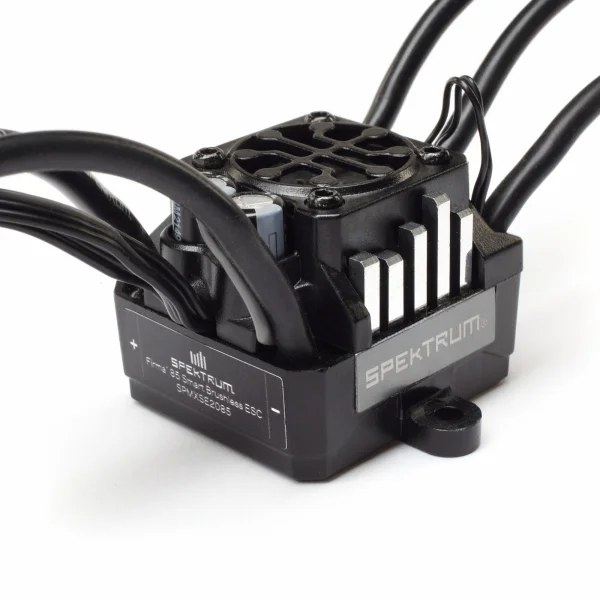

Firma 85A Black Edition Brushless Smart ESC V2 - 2S-3S

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics, creating the best-performing RC system for your vehicle.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you more confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever without installing extra components that work independently. You won't need additional wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage, and capacity.

Firma ESCs gather the data and send it to your transmitter in real-time instead of storing it for an after-run study. You can adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

• Smart all-in-one telemetry
• Fast, powerful 32-bit ARM M4 processor
• Waterproof
• Multiple options for easy programming:
• Button programming
• Smart ESC Programming Box
• SmartLink USB Updating and Programmer application
• Multi-point protection:
• Over-current protection
• Automatic LiPo low-voltage cutoff
• Thermal protection
• Failsafe protection
• Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer

• Ideal for 2WD and 4WD 1/10th scale surface applications running on 2S - 4S Lipo setups
• High current adjustable BEC (6v or 7.4v @ 4 Amps)
• Ready to install — no soldering required
• Compact for easy installation in most applications
• Rugged plastic case with mounting tabs
• Aluminum heat sink for high efficiency
• Cooling fan
• Adjustable high-power BEC
• Firmware updatable through the Smart ESC Programming Box
• High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
• Limited 1-year warranty

Firma 85A Black Edition Brushless Smart ESC V2 - 2S-3S Specfications:

• Maximum Burst Current: 550A
• Maximum Continuous Current: 85A
• Motor Type: Brushless
• BEC: Yes
• BEC Voltage: 6.0V/7.4V Adjustable @ 4A
• Input Voltage: 2S-3S LiPo | 5-9 Cell NiMH
• Motor Output Lead: 4.0mm Female Bullet
• Product Height: 1.31" (33 mm)
• Auto Cutoff: Yes
• Low-Voltage Cutoff Programmable: Yes
• Water-Resistant: Yes
• Amperage: 85A
• Connector Type: IC5
• Product Length: 1.71" (43 mm)
• Brakes: Yes
• Programmable: Yes
• Forward: Yes
• Reverse: Yes
• Battery Connector: IC5® (EC5â„¢ Compatible)
• Product Width: 1.51" (38 mm)
• Technology: Smart

• (1) Spektrum™ Firma™ Smart ESC
• (1) Spektrum Smart Sticker Sheet
• (1) Product Manual

• (1) Spektrum™ Surface Receiver
• (1) Spektrum Smart Technology LiPo Battery
• (1) Spektrum Transmitter

• Brand: Spektrum
• Part No: SPMXSE2085
• Barcode: 0605482181461
