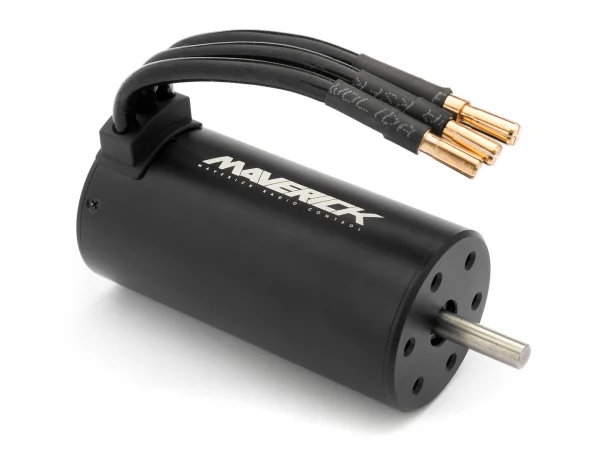

FLX10-3674-2250KV Flux Motor

The Maverick FLX10-3674-2250KV Flux Motor (MV150241) is a zero‑maintenance, sensorless brushless unit engineered for strong performance and straightforward setup. It is standard equipment in the Quantum+ Flux kits and delivers smooth, efficient power on 2–4S LiPo packs.

A 5.0 mm shaft and 4.0 mm bullet connectors provide a robust, simple installation, while the 36 x 74 mm can size offers a compact, durable form factor. With a 4‑pole design for torque and response, this motor is a dependable choice for high‑performance running.

Key Specifications

• KV (No Load): 2250KV
• LiPo: 2–4S
• Poles: 4
• Shaft: 5.0 mm
• Connectors: 4.0 mm bullet
• Dimensions: 36 mm diameter x 74 mm length

Wet Conditions Guidance

• Ensure other electronics are water‑resistant/ waterproof or fully enclosed before running in wet conditions.
• ESC fans are not water‑resistant: disconnect before wet use and allow to dry fully before reconnecting.
• Lubricate exposed metal drivetrain parts (bearings, outdrives, diff shafts) before wet running.
• Motors are not intended for submerged use and may be damaged if used under water.
• After wet running, rinse off dirt and corrosive liquids (e.g. saltwater) with plain water and re‑lubricate metal drivetrain parts.
