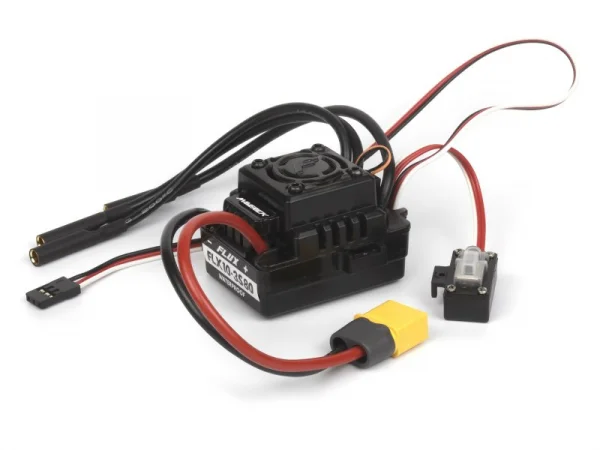

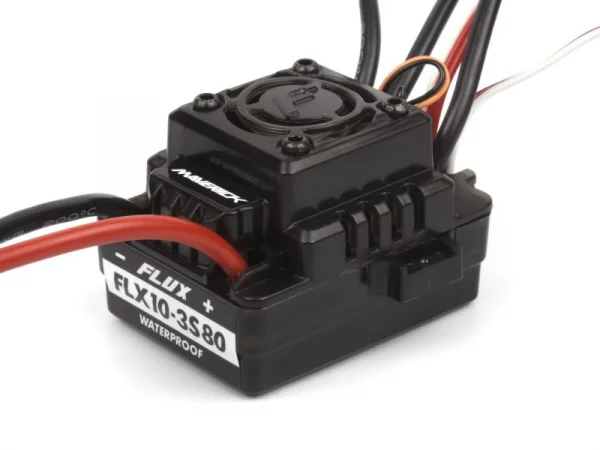

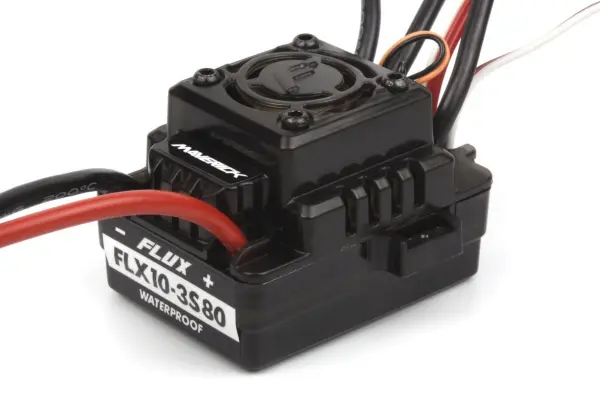

FLX10-3S80 Flux ESC with XT60
Brand: Maverick
Part No: MV150634
Shadow Stock: Usually ships within 4-5 days
The Maverick FLX10-3S80 Flux ESC with XT60 (part MV150634) is a robust 1/10 scale brushless speed controller capable of delivering up to 80A continuous current and 540A burst. Designed for confident performance on and off road, it features waterproof protection and an enclosed cooling fan to help maintain temperatures during demanding runs.
Key Features
- Waterproof protection for all-weather driving
- 80A continuous current, 540A burst
- Supports 2–3S LiPo packs
- 6V/2A switching BEC for reliable receiver and servo power
- XT60 battery connector pre-fitted
- 4.0mm motor bullet connectors
- Integrated cooling fan under a protective cover
Technical Specifications
- Input voltage: 2–3S LiPo
- Continuous current: 80A
- Burst current: 540A
- Motor limit: 2S LiPo <600KV; 3S <400KV
- BEC: 6V switching, 2A continuous
- Battery connector: XT60
- Motor connector: 4.0mm bullet
- Dimensions (with fan): 50.5 x 56.2 x 35.4
- Application: 1/10 buggy/monster truck (suggested compatibility)
Battery Guidance
- High-quality LiPo batteries are recommended to get the best performance.
- Using low-rated or poor-quality LiPo packs may cause damage to the batteries and/or ESC and can void warranties.
Important Notes on Wet Use
- Ensure other installed electronics are water-resistant or fully protected before running in wet conditions.
- ESC-mounted fans are not water resistant; disconnect the fan before wet running and allow it to dry fully before reconnecting.
- Lubricate exposed metal drivetrain parts before use in wet conditions and re-lubricate after cleaning.
- Rinse off dirt and corrosive residues (e.g. saltwater) with fresh water after wet running.
- Motors are not intended for submerged use.
Suggested Compatibility
- 1/10 buggies and monster trucks (suggested compatibility)
- Pairs well with the FLX10-3660-3500KV brushless motor (suggested compatibility)
Secured by Stripe
The FLX10-3S80 Flux ESC is the perfect match for the FLX10-3660-3500KV 1/10th scale brushless motor - it's able to pump up to 80 amps of power to the motor for amazing stunts, colossal top speeds, and wheel-spinning sideways action!
Complete waterproof protection means you can take your truck equipped with the FLX10-3S80 ESC into territory that would scare off other drivers: puddles, mud, and more! A large fan sits on top of the case inside a protective cover to keep things cool when the weather's warm and you've been driving hard.
Technical Specifications:
Input Voltage: 2-3S LiPo
Continuous Current: 80A
Burst Current: 540A
Motor Limit: 2S LiPo <600KV, 3S <400KV
BEC: 6V Switching BEC, 2A Continuous Current
Battery Connector: XT60
Motor Connector: 4.0mm Bullet
Dimensions: 50.5x56.2x35.4m (W/Fan)
Application: 1/10th Buggy/Monster Truck
The FLX10-3S80 ESC & FLX10-3660-3500KV Motor requires very powerful batteries to get the most out of them - please make sure that you use the right combination! HPI highly recommend the use of high quality LiPo batteries. Using batteries with low ratings, or the use of lower quality LiPo batteries, may cause damage to your batteries and/or speed control. Using batteries below the specified ratings may void the warranty of the speed controller and/or batteries.
NOTE: Before driving in wet conditions, make sure that other electronics fitted to the vehicle are safe to use (marked as water-resistant or waterproof), or that they are fully enclosed and protected from water and moisture (such as in a sealed receiver/battery case). Fans mounted on speed controllers are not water resistant - we recommend to disconnect the fan from the ESC before driving in wet conditions and allow it to dry fully before reconnecting the fan power. Lubricate exposed metal drivetrain parts such as bearings, outdrives and diff shafts before driving in wet conditions. Motors are not intended for submerged use and may be damaged if used when under water. After driving in wet conditions, make sure to rinse off dirt and any corrosive liquids like saltwater with plain water and re-lubricate metal drivetrain parts.
Download PDF instructions for #150634 (10.6 MB)
Key Info:
- Brand: Maverick
- Part No: MV150634
- Barcode: 5050864032087
