Description

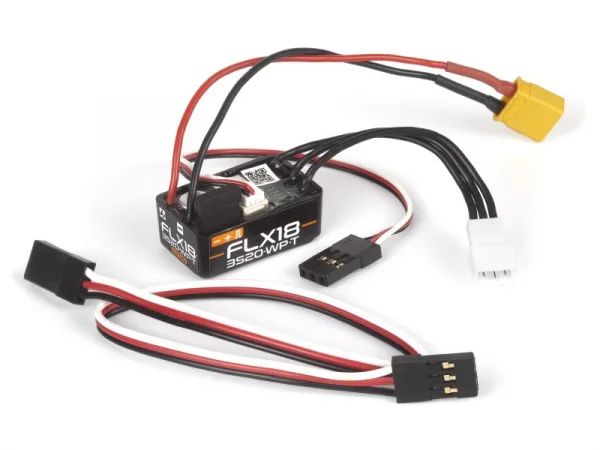

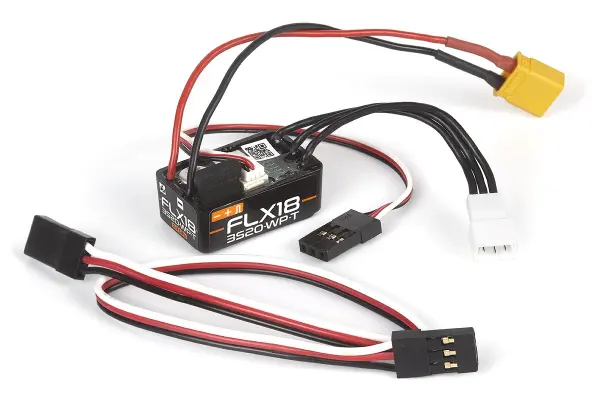

The HPI FLX18-3S20-WP-T Flux ESC with XT-30 (HPI-160967) is a waterproof brushless speed controller for 1/18 scale RC trail and crawler rigs. Built to tackle all-weather driving, it delivers smooth low-speed control and reliable power on muddy paths, wet rocks and water splashes.
This Trail version adds an F/B/R running mode alongside the F/R crawler mode. Using an auxiliary channel on your transmitter, you can switch between modes on the fly without a program card, making it easy to alternate between trail running and technical crawling.
Features & Specs
- Waterproof brushless crawler ESC
- Operating voltage: 2–3S LiPo
- Continuous/peak current: 20A/50A
- Power connector: XT-30
- BEC output: 6V/1.5A
- Dimensions: 28 x 18 x 13 mm
- Weight: 13.5 g
Adjustable Parameters (via Hobbywing LED Program Card, available separately)
- Voltage Cut-Off
- Motor Direction
- Drag Brake Force – braking power at neutral; higher values hold stronger on inclines
- Drag Brake Rate – controls how quickly drag brake is applied; lower values can help the vehicle stop more smoothly
Secured by Stripe
FLX18-3S20-WP-T Flux ESC with XT30 Manuals & Guides
Specifications
Conquer the Elements with the FLX18-3S20-WP-T Waterproof
Brushless Trail ESC for 1/18 Scale RC Vehicles!
Designed for serious off-road enthusiasts, this ESC is waterproof,
making it perfect for all-weather adventures, from muddy trails to
water crossings.
This Trail version of the FLX18-3S20-WP ESC is standard in the
Venture18 U4 and features an F/B/R running mode in addition to the
F/R crawler mode.
And, by using an Auxiliary channel on your transmitter, you can
switch between the two running modes on the fly without needing to
stop and plug in a program card.
Making the Venture18 U4 perfect for both trail running and
crawling.
FLX18-3S20-WP-T Features:
Waterproof Brushless Crawler ESC
Operating Voltage: 2-3S LiPo
Continuous/Peak Current: 20A/50A
Power Connector: XT-30
BEC Output: 6V/1.5A
Dimensions: 28x18x13mm
Weight: 13.5g
ESC parameters are adjustable using the Hobbywing LED Program
Card (available separately):
- Voltage Cut-Off
- Motor Direction
- Drag Brake Force
(Braking power when throttle is at neutral position. Higher drag
brake means stronger hold on hills.)
- Drag Brake Rate
(Controls the response of the drag brake. The higher setting the
faster the drag brake is applied. A lower value may help the
vehicle stop more steadily.)
Download PDF instructions for #160967 (2.7 MB)
Key Info:
- Brand: HPI
- Part No: HPI-160967
- Barcode: 5050864038348
