Description

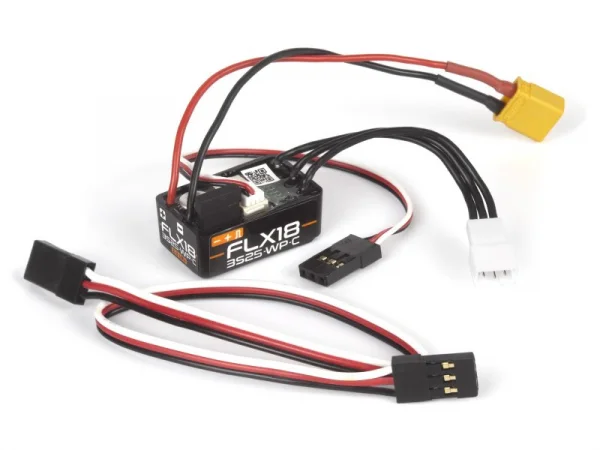

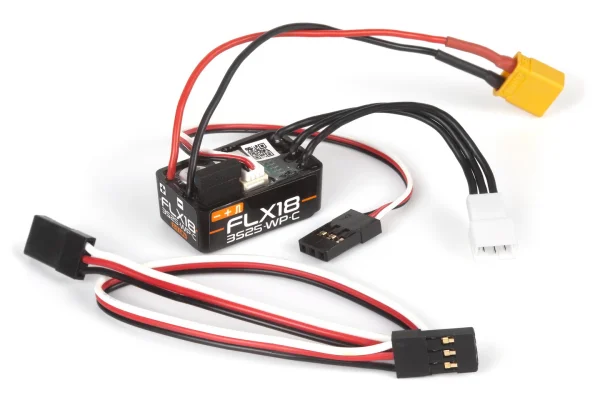

The HPI FLX-183S25-WP-C Competition Crawler Flux ESC (part HPI-161240) is a waterproof brushless speed controller for 1/18 scale RC vehicles. Built for serious off-road driving, it delivers precise low-speed control and dependable performance in wet, muddy, and challenging conditions. This Competition Crawler version features a higher current rating, an uprated BEC and additional programmable modes. Using an auxiliary channel on your transmitter, you can adjust drag brake on the fly at the push of a button.
Main Features
- Waterproof brushless crawler ESC
- Operating voltage: 2–3S LiPo
- Continuous/peak current: 25A/60A
- Power connector: XT30
- BEC output: 6V/7.4V adjustable, 2A continuous
- Dimensions: 28 x 18 x 13 mm
- Weight: 10.8 g
- On-the-fly drag brake adjustment via AUX channel
- Higher A rating and uprated BEC in the Competition Crawler version
Programmable Parameters
ESC parameters are adjustable using the Hobbywing LED Program Card (available separately), including:
- Running Mode
- Motor Type
- Voltage Cut-Off
- Motor Direction
- Drag Brake Force
- Drag Brake Rate
- Max. Reverse Force
- Max. Brake Force
- Punch
- Neutral Range
- FOC Power
- Low Speed Throttle
Suggested Compatibility
- 1/18 scale RC rock crawlers and trail rigs
- HPI Venture18 CC (this Competition Crawler version is supplied as standard)
Secured by Stripe
FLX-183S25-WP-C Competition Crawler Flux ESC Manuals & Guides
Specifications
Conquer the Elements with the FLX18-3S25-WP-C Waterproof
Brushless Competition Crawler ESC for 1/18 Scale RC Vehicles!
Designed for serious off-road enthusiasts, this ESC is waterproof,
making it perfect for all-weather adventures, from muddy trails to
water crossings.
This Competition Crawler version of the ESC is standard in the
Venture18 CC and features an a higher A rating and uprated BEC,
along with a raft of additional programmable modes.
And, by using an Auxiliary channel on your transmitter, you
can adjust your drag brake on the fly at the push of a
button.
FLX18-3S25-WP-C Features:
Waterproof Brushless Crawler ESC
Operating Voltage: 2-3S LiPo
Continuous/Peak Current: 25A/60A
Power Connector: XT-30
BEC Output: 6V/7.4V Adjustible, 2A Continuous
Dimensions: 28x18x13mm
Weight: 10.8g
ESC parameters are adjustable using the Hobbywing LED Program
Card (available separately):
- Running Mode
- Motor Type
- Voltage Cut-Off
- Motor Direction
- Drag Brake Force
- Drag Brake Rate
- Max. Reverse Force
- Max. Brake Force
- Punch
- Neutral Range
- FOC Power
- Low Speed Throttle
Download PDF instructions for #161240
Key Info:
- Brand: HPI
- Part No: HPI-161240
- Barcode: 5050864040075
