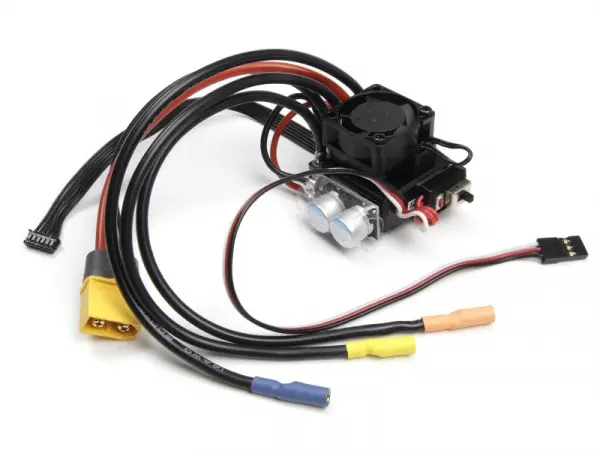

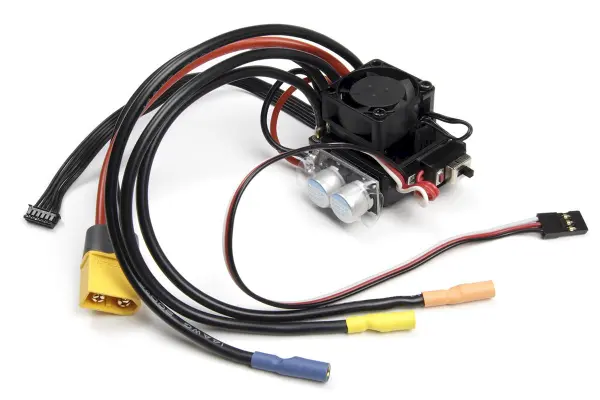

HPI FLX-D10 80A Sensored Flux ESC HPI-161065

The HPI FLX-D10 80A Sensored Flux ESC, part number HPI-161065, is a programmable sensored brushless speed controller for precise throttle control in radio-controlled cars. Designed to support smooth drift initiation, controlled transitions and consistent power delivery, it provides predictable response when maintaining speed, balance and angle on track. The ESC is intended for 2S LiPo systems and compatible 3650-size sensored brushless motors, making it a suggested choice for 1/10-scale drift cars as well as suitable touring cars, buggies, rally cars and F1 cars. Its switch-mode BEC supplies a stable 6V/4A output for the receiver, steering servo and cooling fan. Adjustable power delivery, braking and timing settings let drivers tune the controller to their car, track and driving style.

Features

Sensored brushless operation helps provide responsive, predictable control, while the 80A continuous and 240A burst ratings support demanding track use. Programmable functions include running mode, cutoff voltage, punch, drag brake force, maximum brake force, maximum reverse force, motor rotation, boost timing, turbo timing and turbo delay. The controller supports motors rated at 8.5T or higher, with a maximum motor limit of 6000KV.

Specifications

• Continuous current: 80A
• Burst current: 240A
• Battery limit: 2S LiPo
• Motor type: Sensored brushless
• Motor limit: 6000KV
• BEC output: 6V/4A switching
• Dimensions: 35.0 x 31 x 30.8mm
