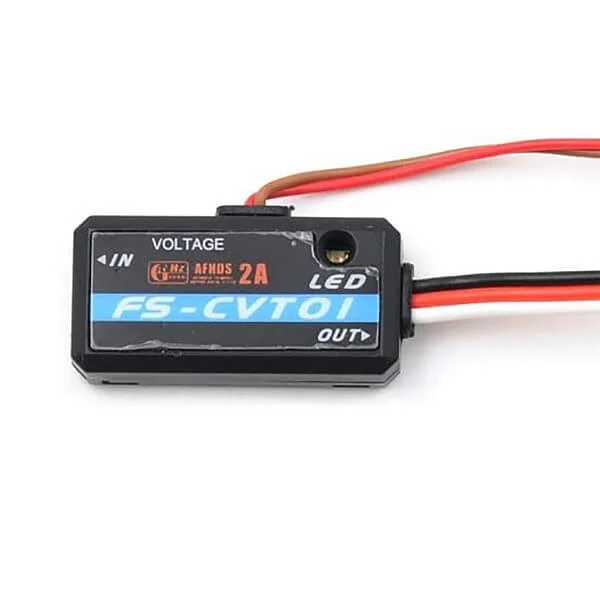

FlySky FS-CVT01 Voltage Sensor Module

The FlySky FS-CVT01 Voltage Module is a compact telemetry sensor designed to report pack voltage via the FlySky telemetry bus. It offers a wide measurement range while remaining lightweight and easy to integrate. Suggested compatibility includes the FlySky i6X transmitter and iA6B receiver through the i-BUS (i.bus/(sens)) interface.

Key Specifications

• Voltage measurement range: -100V to +100V
• Operating voltage (DC power): 4.0–8.4V
• Data port: i-BUS (i.bus/(sens))
• Operating temperature: 0–60°C
• Humidity range: 20%–95%
• Dimensions: 31 × 15 × 8.5 mm
• Weight: 6.0 g

With its small footprint and low weight, the FS-CVT01 is well suited to electric RC models where accurate voltage feedback is essential for telemetry monitoring. The module’s broad input range supports diverse setups, while the i-BUS connection streamlines installation alongside compatible FlySky radios and receivers.
