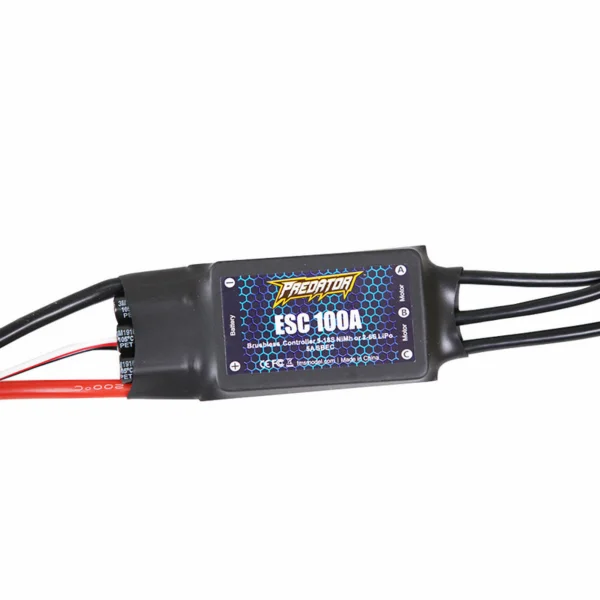

FMS 100A ESC, EC5, 300 Input Cable

The FMS 100A ESC (part FMSPRESC014) delivers 100A continuous and 120A peak current, with input support for 5–18S NiMH or 2–6S LiPo packs. It is supplied with a 300 input cable (EC5). A switch‑mode 5V/5A BEC is integrated for receiver and servo power, and user‑selectable settings allow tuning for your model.

Key Specifications

• Model: 100A ESC
• Continuous current: 100A
• Peak current: 120A
• Input: 5–18S NiMH or 2–6S LiPo
• BEC: Switch mode 5V @ 5A
• Size (L×W×H): 86 × 38 × 12 mm
• Weight: 82 g

Programmable Items

• Brake setting: Enabled / Disabled
• Battery type: LiPo / NiMH
• Low voltage protection mode (cut‑off mode): Soft Cut‑Off (gradually reduce the output power) / Cut‑Off (immediately stop the output power)
• Low voltage protection threshold (cut‑off threshold): Low / Medium / High
• Startup mode: Normal / Soft / Super‑Soft (300 ms / 1.5 s / 3 s)
• Timing: Low / Medium / High (3.75 / 15 / 26.25)

Suggested Compatibility

• FMS 80mm Futura V2
• FMS 80mm BAE Hawk
• FMS 80mm Rafale
