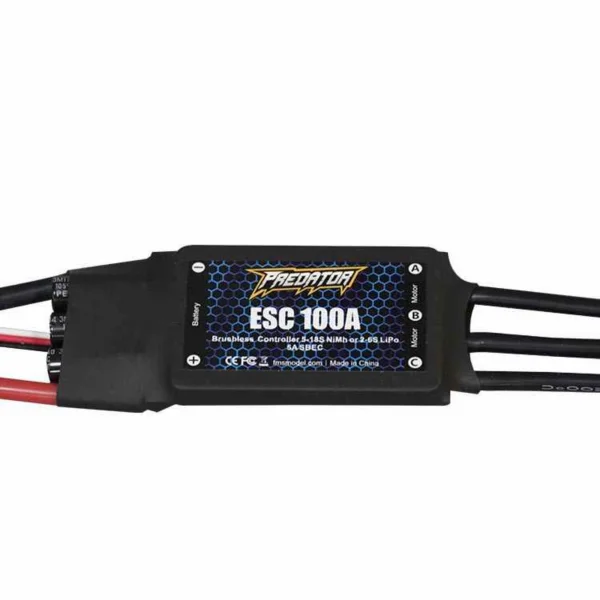

FMS 100A ESC With 300mm Input Cable (for 80mm F-4)
FMS 100A ESC With 300mm Input Cable (for 80mm F-4)
FMS 100A ESC With 300mm Input Cable (for 80mm F-4)

FMS 100A ESC with 300mm Input Cable - FMSPRESC026

Brand: FMS

Part No: FMSPRESC026

£73.14 RRP £76.99
Pre-Order

Finance options available at checkout.

Request Price Match Ask a Question Write a Review

You May Also Need

Add-ons and accessories that go with the FMS 100A ESC With 300mm Input Cable (for 80mm F-4)

FMS FCX24M Transmission Gear 17T (Steel) FMS FCX24M Transmission Gear 17T (Steel)
£7.59
FMS 50mm Ducted Fan System 11-Blade W/2627-Kv5400 Motor FMS 50mm Ducted Fan System 11-Blade W/2627-Kv5400 Motor
£48.44
FMS Sweep Rock Crawler 1.9 Soft Double Stage Inserts (2Pc) FMS Sweep Rock Crawler 1.9 Soft Double Stage Inserts (2Pc)
£10.44

Description

The FMS 100A ESC (FMSPRESC026) combines dependable power handling with a 300mm input cable for flexible installation. It supports 2–6S LiPo or 5–18s NiMH packs and features a robust 5V/5A switch-mode BEC to power onboard electronics. Suggested compatibility: FMS 80mm F-4.

Key Specifications

  • Continuous current: 100A
  • Peak current: 120A
  • Input: 5–18s NiMH / 2–6S LiPo
  • BEC: Switch mode 5V @ 5A
  • Input cable length: 300mm
  • Size (L x W x H): 86 x 38 x 12mm
  • Weight: 82g

Programmable Features

  • Brake setting: Enabled / Disabled
  • Battery type: LiPo / NiMH
  • Low voltage protection mode: Soft Cut Off / Cut Off
  • Low voltage protection threshold: Low / Medium / High
  • Startup mode: Normal / Soft / Super-Soft (300ms / 1.5s / 3s)
  • Timing: Low / Medium / High (3.75 / 15 / 26.25)
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Specifications

Model: 100A ESC

Cont Current: 100A

Peak Current: 120A

Input: 5-18s NiMH / 2-6S LiPo

BEC: Switch Mode 5V @ 5A

Size (LxWxH): 86 x 38 x 12mm

Weight: 82g

Programmable Features:

  • Brake Setting: Enabled / Disabled
  • Battery Type: LiPo / NiMH
  • Low Voltage Protection Mode (Cut-Off Mode): Soft Cut Off (Gradually reduce the output power) / Cut-Off (Immediately stop the output power)
  • Low Voltage Protection Threshold: Low / Medium / High
  • Startup Mode: Normal / Soft / Super-Soft (300ms / 1.5s / 3s)
  • Timing: Low / Medium / High (3.75 / 15 / 26.25)



Key Info:
  • Brand: FMS
  • Part No: FMSPRESC026
  • Barcode: 7840853309232
