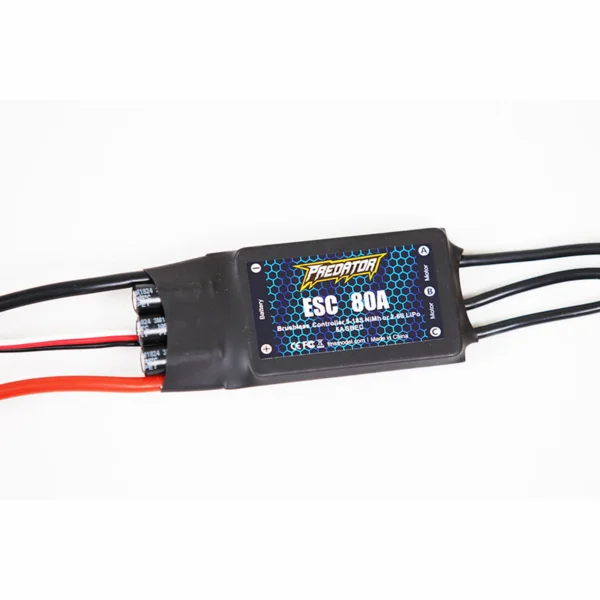

FMS 80A ESC With 300mm Input Cable, 4.0mm Motor Connector, EC5 (for YAK130 V2 /Avanti V3/ 1700mm P-51/1700 F4U V3/70mm Viper)

FMS 80A ESC with EC5 & 4mm Motor Plugs

Brand: FMS

Part No: FMSPRESC023

£48.44 RRP £50.99
Pre-Order

Finance options available at checkout.

Request Price Match Ask a Question Write a Review

Fits These Models (6)

Show all 6 models

You May Also Need

Add-ons and accessories that go with the FMS 80A ESC With 300mm Input Cable, 4.0mm Motor Connector, EC5 (for YAK130 V2 /Avanti V3/ 1700mm P-51/1700 F4U V3/70mm Viper)

FMS Motor Board (for 1700mm P-51D/ Pitts/ Red Tail) FMS Motor Board (for 1700mm P-51D/ Pitts/ Red Tail)
£12.34

Description

The FMS 80A ESC (part FMSPRESC023) is a brushless controller supplied with a 300mm input cable, EC5 battery connector and 4.0mm motor connectors. It supports 2–6S LiPo or 5–18S NiMH packs, delivering 80A continuous current with 100A peak and a switch‑mode 5V/5A BEC.

Key Specifications

  • Continuous current: 80A
  • Peak current: 100A
  • Input: 5–18S NiMH or 2–6S LiPo
  • BEC: Switch mode 5V @ 5A
  • Dimensions (L x W x H): 86 x 38 x 12mm
  • Weight: 82g

Programmable Items

  • Brake setting: Enabled / Disabled
  • Battery type: LiPo / NiMH
  • Low voltage protection mode: Soft Cut-Off (gradually reduce the output power) / Cut-Off (immediately stop the output power)
  • Low voltage protection threshold: Low / Medium / High
  • Startup mode: Normal / Soft / Super-Soft (300ms / 1.5s / 3s)
  • Timing: Low / Medium / High (3.75 / 15 / 26.25)

Suggested Compatibility

As referenced in the product name, suggested compatibility includes FMS YAK130 V2, Avanti V3, 1700mm P‑51, 1700mm F4U V3 and 70mm Viper aircraft.

Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

FMS 80A ESC With 300mm Input Cable, 4.0mm Motor Connector, EC5 (for YAK130 V2 /Avanti V3/ 1700mm P-51/1700 F4U V3/70mm Viper) Manuals & Guides

Specifications

  • Model: 80A ESC
  • Cont current: 80A
  • Peak current: 100A
  • Input: 5-18s NiMH or 2-6S LiPo
  • BEC: Switch Mode 5V @ 5A
  • Size (LxWxH): 86 x 38 x 12mm
  • Weight: 82g

Programmable Items

  • Brake Setting: Enabled / Disabled
  • Battery Type: LiPo / NiMH
  • Low Voltage Protection Mode (Cut-Off Mode): Soft Cut-Off (Gradually reduce the output power) / Cut-Off (Immediately stop the output power)
  • Low Voltage Protection Threshold (Cut-Off Threshold): Low / Medium / High
  • Startup Mode: Normal / Soft / Super-Soft (300ms / 1.5s / 3s)
  • Timing: Low / Medium / High (3.75 / 15 / 26.25)



Key Info:
  • Brand: FMS
  • Part No: FMSPRESC023
  • Barcode: 7840853308938
