Other items customers often buy with the Futaba R334SBS-E 4 Channel S BUS Telemetry Receiver
Description

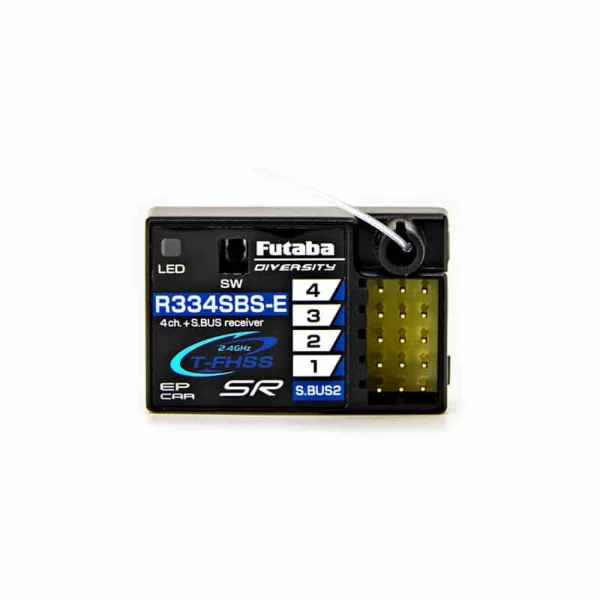

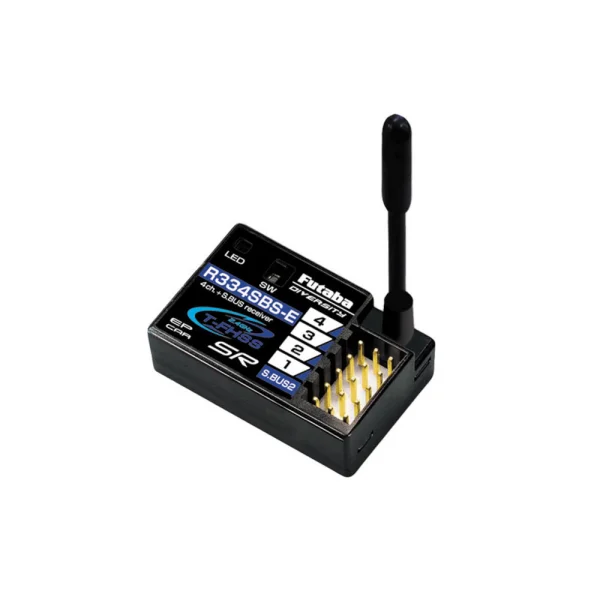

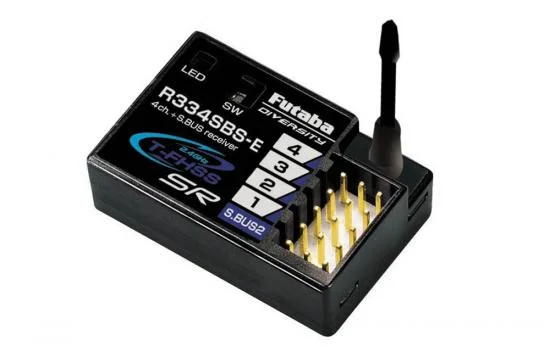

The Futaba R334SBS-E is a compact 4-channel S.BUS2 telemetry receiver crafted for electric RC cars. Supporting T-FHSS, T-FHSS High Speed and ultra-responsive T-FHSS SR, it delivers fast, precise control for racing and sport use. A built-in aerial plus a short external aerial allow neat installations under the shell, while HV operation from 3.7–7.4V lets you get the best from high-performance servos without complex wiring. Weighing just 7.2g and measuring 33.9 × 22.3 × 11.3mm, it’s easy to fit where space is tight. Supplied under part number FUT05102649-3.
Key Features
- Designed exclusively for electric cars
- 4 channels with S.BUS2 and telemetry functionality
- T-FHSS SR ‘Super Response’ mode for ultra-fast operation
- T-FHSS and T-FHSS High Speed modes for general and fast use
- High-voltage capable (3.7–7.4V)
- Diversity aerials: one built-in and one short external
- Compact and lightweight at only 7.2g
Specifications
- Modulation: Futaba T-FHSS SR & T-FHSS
- Frequency: 2.4GHz
- Channels: 4
- Voltage range: 3.7–7.4V
- S.BUS: S.BUS2
- Dimensions: 33.9 × 22.3 × 11.3mm
- Weight: 7.2g (0.25oz)
- Aerial arrangement: 1× built-in, 1× protruding from the case
- Fail Safe: F/S and Battery F/S (dependent on transmitter used)
- Power output: 10mW EIRP
Important Notes
- In SR mode you need an SR-capable servo; telemetry and S.BUS functions are disabled to achieve this speed.
- In T-FHSS High Speed mode, analogue servos cannot be used (Futaba digital or brushless required).
Secured by Stripe
Futaba R334SBS-E 4 Channel S BUS Telemetry Receiver Manuals & Guides
Manuals & Guides
Specifications
The R334SB-E was produced by Futaba specifically for electric RC cars. The compact form, built-in aerial and short external aerial allow it to be tucked away under a body shell for a clean and professional installation without any sacrifice to the performance. You can use the R334SB-E in 'T-FHSS' mode, the faster 'T-FHSS High Speed' mode or even the ultra-responsive 'T-FHSS SR' Super Response mode making it versatile for racers and sport drivers alike. The HV (High Voltage) capability allows you to power it from a wide range of sources (3.7 to 7.4V) so you can extract the best performance from your servos without complex wiring.
&bull: Designed exclusively for electric cars
• Easy to install and use
&bull: T-FHSS SR 'Super Response' mode for ultra-fast operation
• T-FHSS mode for normal use
• Telemetry functionality
• High voltage capability up to 7.4V
• Diversity aerials, one built-in and one short to fit under the body shell
• Only 7.2g in weight!
Please note:
• In SR model you need to use an SR capable servo, also the telemetry and s.bus functions are disabled to enable this fast speed.
• In T-FHSS high speed mode, analogue servos cannot be used (Futaba digital or brushless required)
| Specifications | |
|---|---|
| Fail Safe | F/S and Battery F/S (Dependant on the Tx used) |
| Modulation | Futaba T-FHSS SR & T-FHSS |
| S.BUS | S.BUS2 |
| Weight | 7.2g (0.25oz) |
| Voltage | 3.7 - 7.4V |
| Frequency | 2.4GHz |
| Channels | 4 |
| Dimensions | 33.9 x 22.3 x 11.3mm (1.33 x 0.88 x 0.44 Inch) |
| Aerial Length | 1x Built-In & 1x Protruding from the case |
| Power Output | 10mW EIRP |
Key Info:
- Brand: Futaba
- Part No: FUT05102649-3
- Barcode: 4513886030642
- Frequency: 2.4Ghz
- Channels: 4 Channel
- Extra Features: Telemetry Capable
