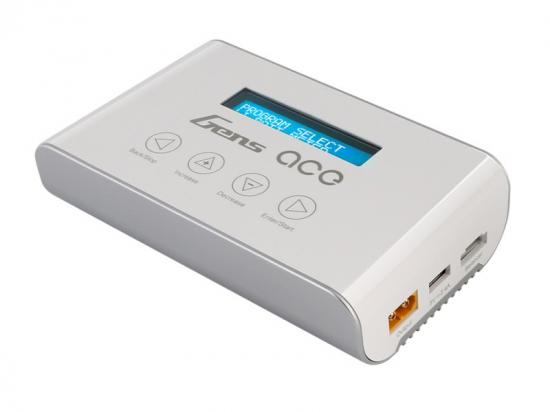

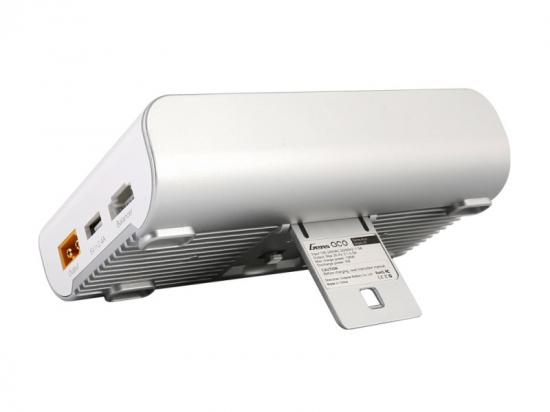

Gens Ace Imars III AC Charger
Brand: Gens Ace
Part No: O-GAC1003E-UK
THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.
PLEASE SEE ITEM #O-GAC100PRO-UK AS A REPLACEMENT
The Gens Ace Imars III AC Charger (O-GAC1003E-UK) is a compact, single-channel, multi-chemistry balance charger designed for convenient, reliable charging at home or at the track. Delivering up to 100W with a clear backlit LCD and straightforward menu system, it handles a wide range of RC battery types, including 1–6S lithium chemistries (LiPo/LiFe/LiHV) and 3–18S NiMH. A set of useful adapters and an AC input cable are included to get you charging quickly.
Features
- Single channel AC balance charger
- Small, lightweight, portable design
- Capable of 5A charge rates, worldwide 100–240V input, 100W power
- Charges up to 18 NiMH cells or 6S Lithium batteries (LiPo/LiFe/LiHV)
Specifications
- Maximum charging voltage: 26.4V
- Maximum charging power: 100W
- Discharge current: 0.1–1.5A
- Cell balancing: 2–6S
- USB output: 5V/2.4A
- Dimensions: 146 × 87 × 40 mm
- Product net weight: 0.4 kg
- Display type: Backlight 2x16 LCD
- Supported chemistries: LiPo/LiFe/LiHV (1–6S)
- NiMH charge (3–18S)
- NiMH discharge (1–10S)

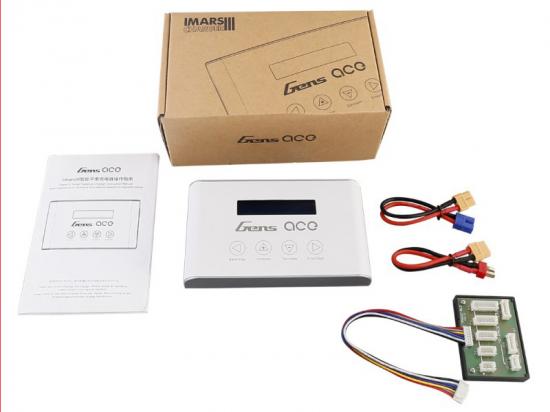

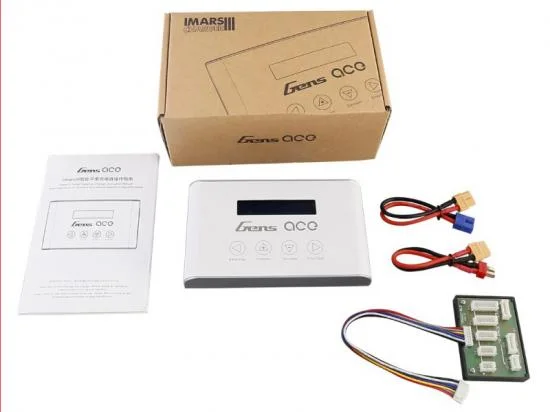

What’s Included
- AC input cable
- Balance adapter board
- XT60–T plug adapter
- XT60–EC3 adapter
- XT60–EC5 adapter
Quick Start
- Connect the charger to mains power; the IMARS III logo displays for ~2 seconds.
- Use the +/– buttons to navigate charge mode, battery check mode, and system settings.
Secured by Stripe
The Gens Ace Imars III multi chemistry charger is ideal for those looking for a compact and versatile charging solution. The latest charger release from Gens Ace see's a sleek design with an easy to use menu system that will have you charged and ready to race, fly or set sail in no time at all. The backlit screen make's viewing menus, set up screens and charge information easy regardless of lighting conditions. Being a multi chemistry charger is has the flexibility of charging up to 18 NiMH cells or 6S Lithium batteries (including LiPo/LiFe/LiHV) which means whatever power source your hobby needs required Gens Ace has you covered. Everything you need to get charging is in the box, alongside the charger itself you get the mains power lead along with the Balance adapter board, XT60-T plug adapter,XT60-EC3 adapter and XT60-EC5 adapter.
Features
- Single Channel AC Balance Charger
- Small & Lightweight Portable Design
- Capable of 5 amp charge rates, worldwide 100V-240V voltage versatility, with 100 Watts of power
- Charges up to 18 NiMH cells or 6S Lithium batteries (including LiPo/LiFe/LiHV)
Specification
- Maximum charging voltage: 26.4V
- Maximum charging power: 100W
- Discharge current: 0.1~1.5A
- Cell Balancing: 2~6s
- USB output: 5V/2.4A
- Dimensions: 146x87x40 mm
- Product Net Weight: 0.4kg
- Display type: Backlight 2x16 LCD
- Supported battery chemistries: LiPo/LiFe/LiHv (1-6S)?NiMH charge (3-18S)?NiMH discharge (1-10S)
- Accessories included: AC Input Cable / Balance adapter board / XT60-T plug adapter / XT60-EC3 adapter/XT60-EC5 adapter
Instruction Connect the charger to the power supply. The IMARS III LOGO will display for about 2 seconds before entering Charger mode. The top-level menu is divided into 3 functions. By pressing +/- buttons, the user may select between charge mode, battery check mode, and system setting mode.
Key Info:
- Brand: Gens Ace
- Part No: O-GAC1003E-UK
- Barcode: 6928493301135
- Included Connectors:
• Deans
• EC3
• EC5
• XH LiPo Balancers
• XT60 - Chemistry:
• LiPo
• NiMh / NiCd
